| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $75.73 | $74.19 | $71.87 | $68.78 | Contact US |
OC3-ADJ 75ohms 5.0Vpp 3-Channel Adjustable Frequency Standard OCXO 10K-150M High Quality RF Accessory
$134.75
OC3-ADJ 75ohms 3.3Vpp 3-Channel Adjustable Frequency Standard OCXO 10K-150M High Quality RF Accessory
$134.75
OC3-ADJ 50ohms 5.0Vpp 3-Channel Adjustable Frequency Standard OCXO 10K-150M High Quality RF Accessory
$134.75

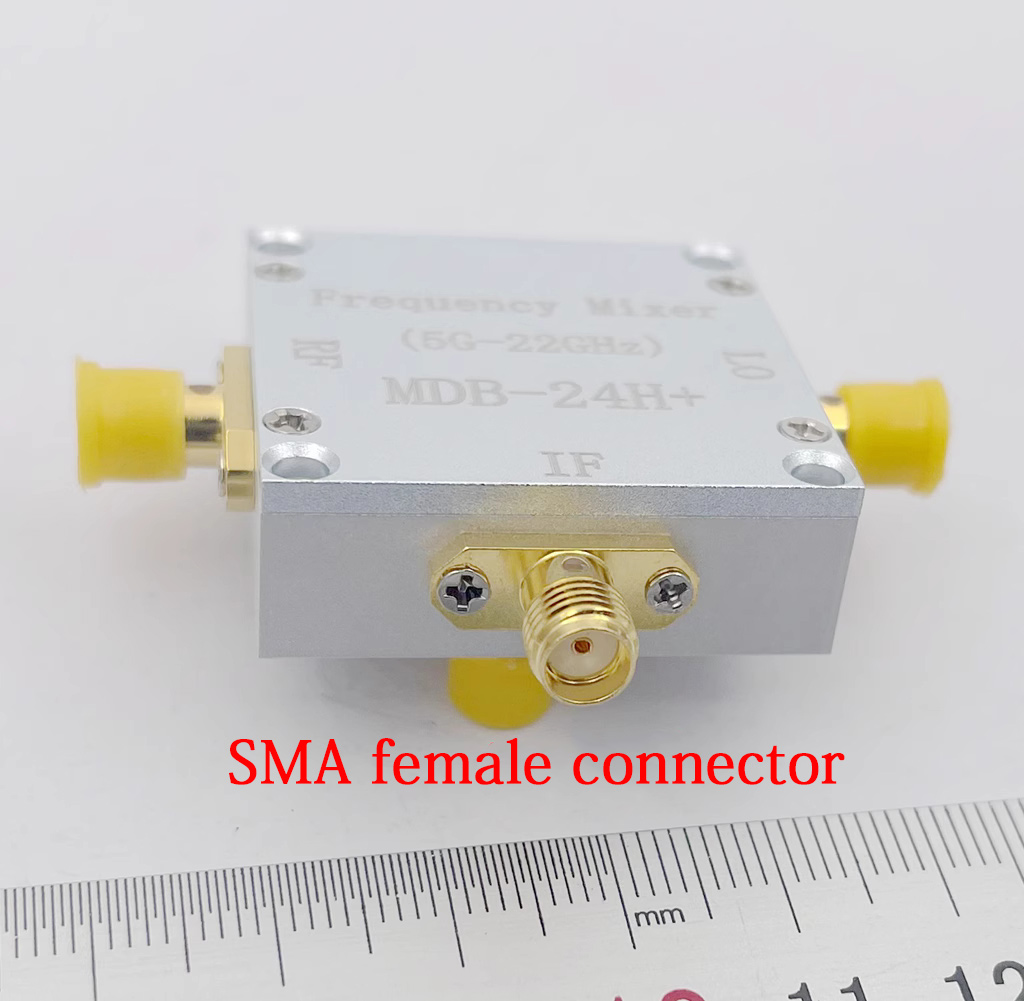

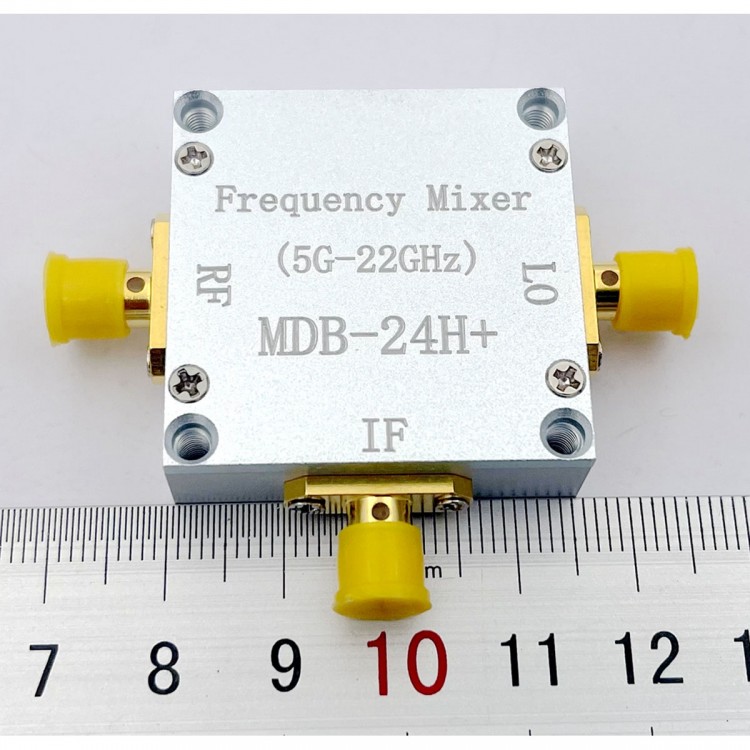

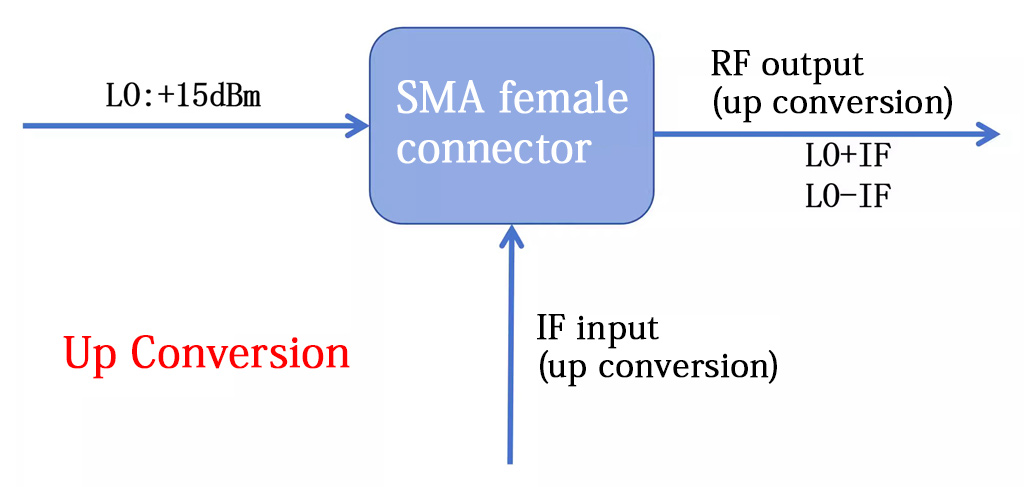

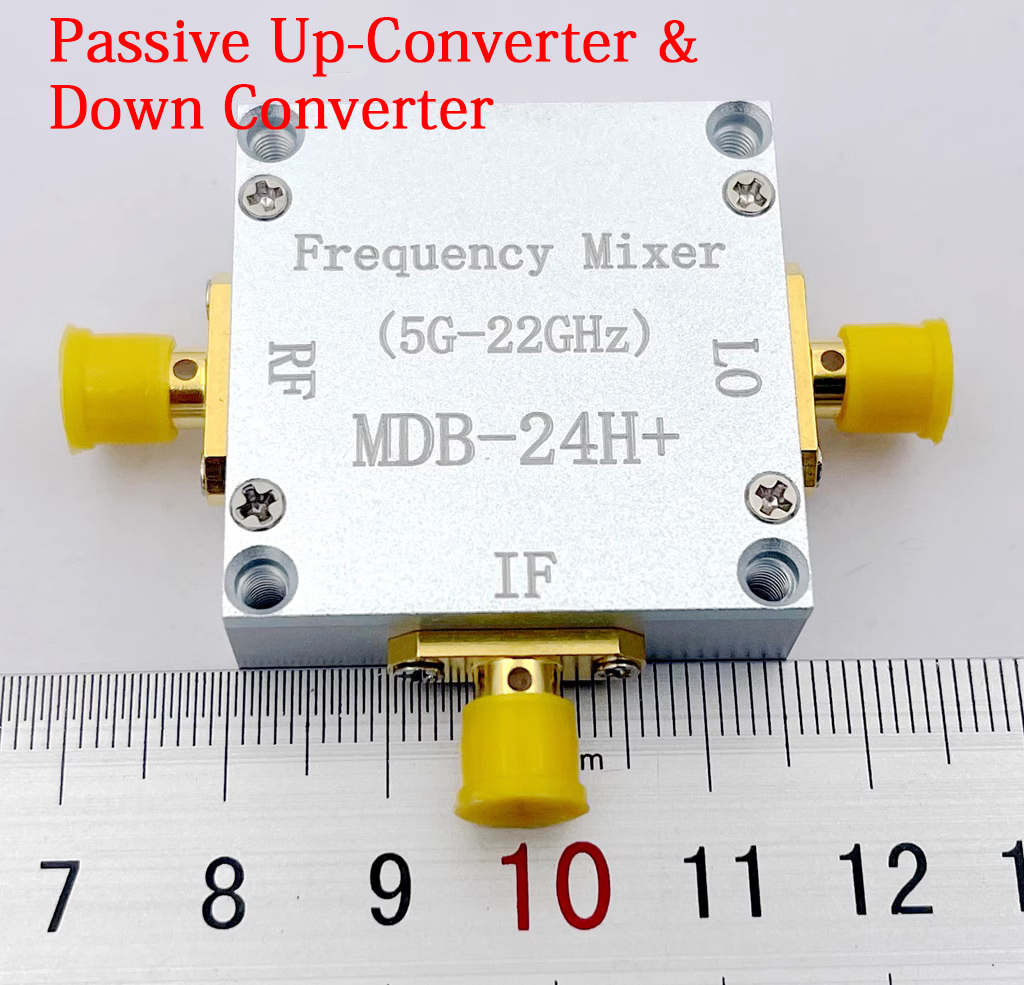

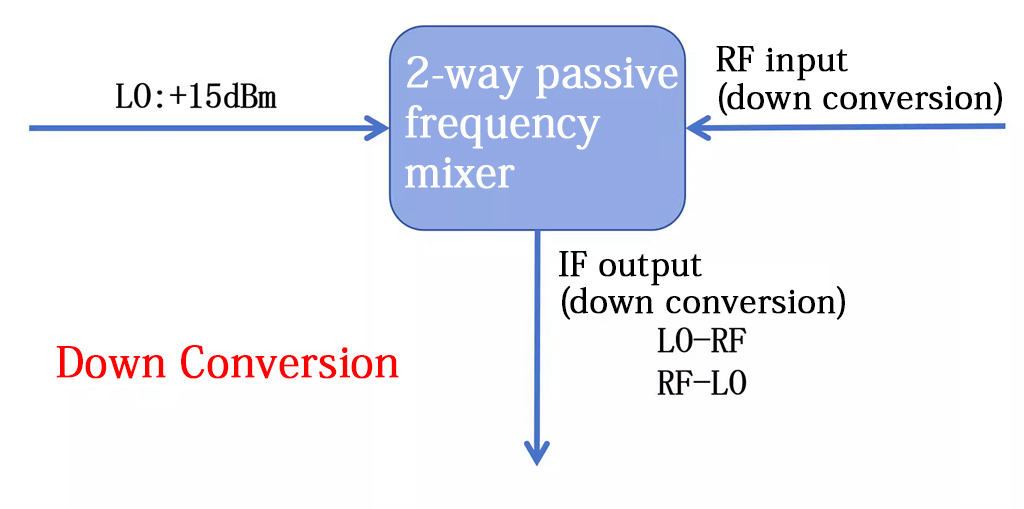

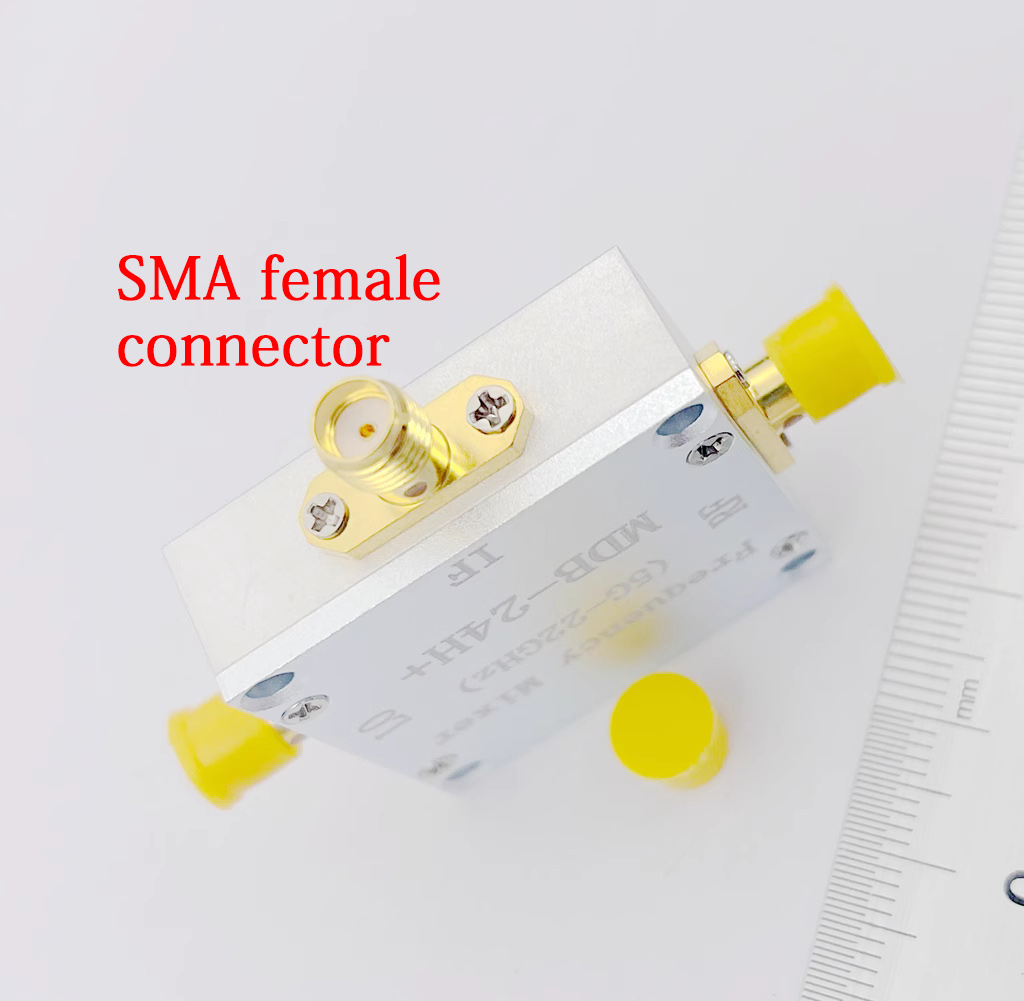

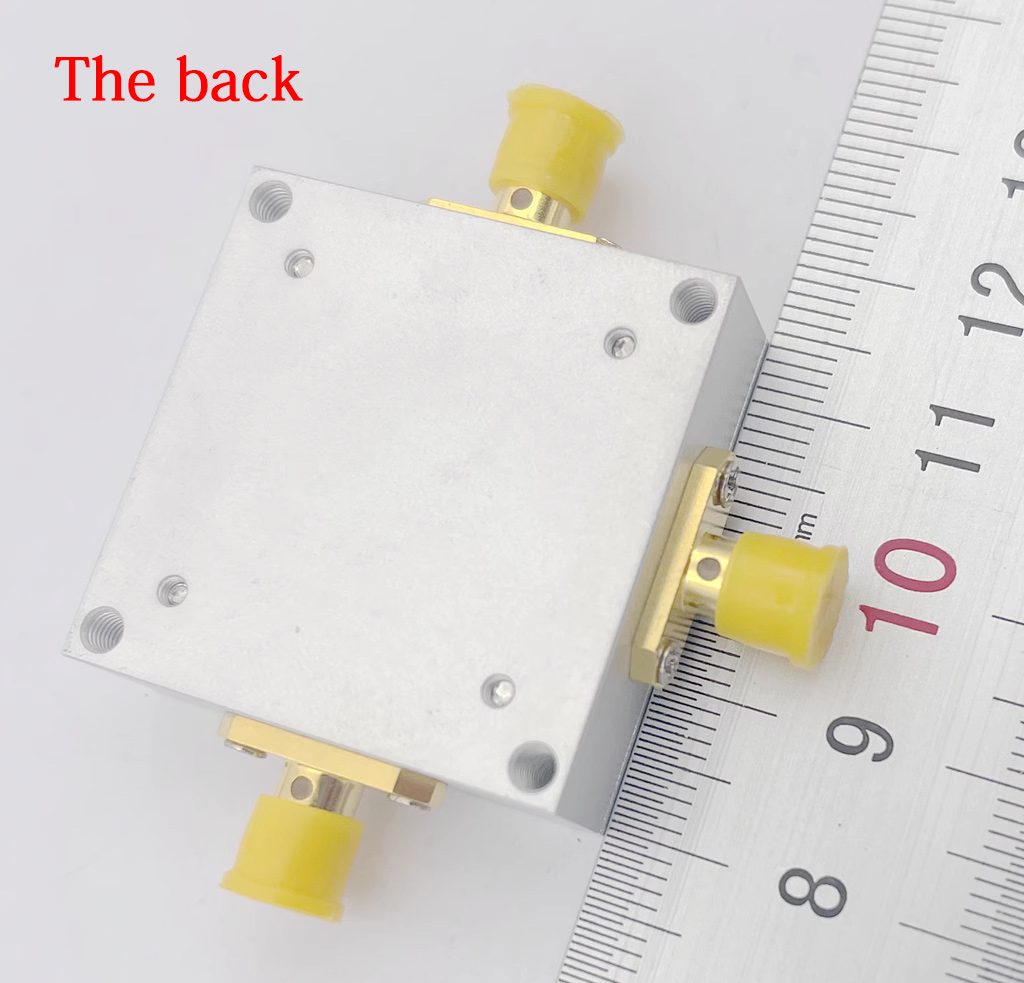

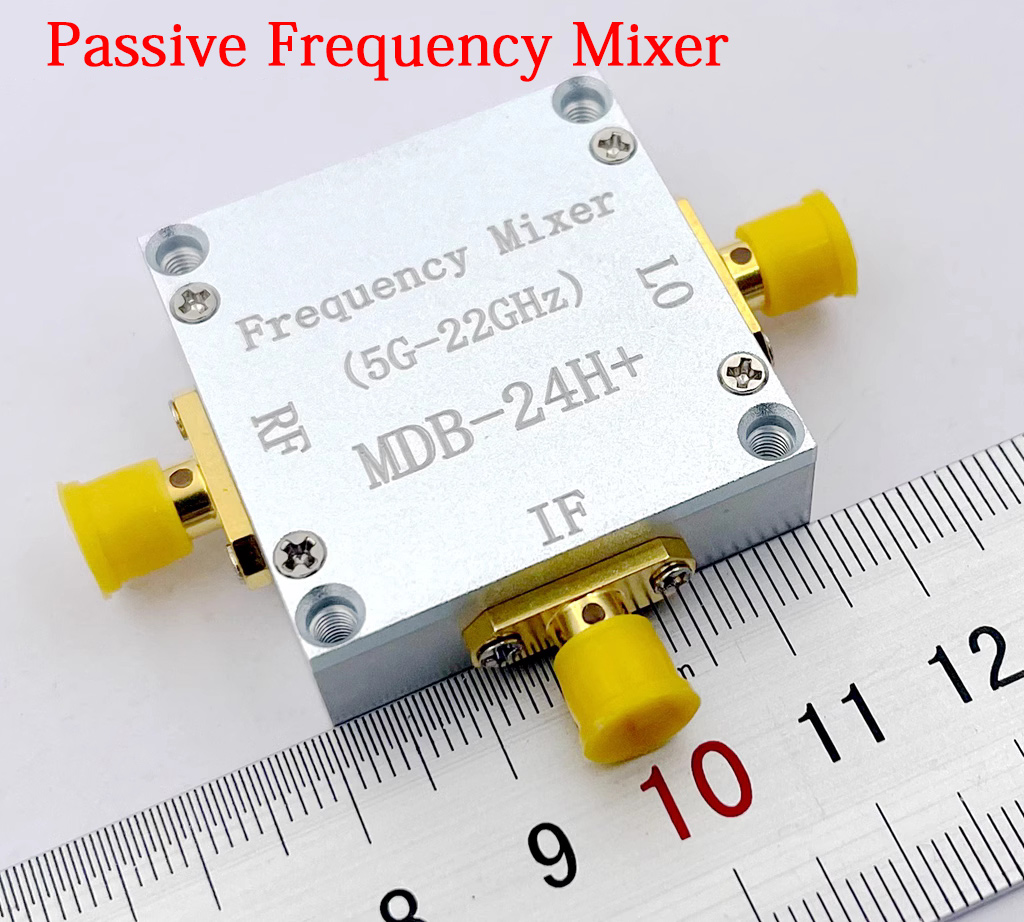

MDB-24H+ 5G-22GHz Frequency Mixer RF Mixer up-converter & down Converter with 3.5mm SMA Connectors
Basic Indicator Parameters:
1. RF/local oscillator working frequency: 5G-22G
2. MF working frequency: DC-5G
3. Local oscillator drive power: 15dBm
4. Insertion loss: 9dB~12dB
5. LO-IF isolation:＞40dB
6. Input IP3: 14-23dB
Package Included:
- 1 x Frequency Mixer
Packaging Details:
- G.W.: 0.2kg
