MDP-L1060 Programmable Intelligent Portable DC Electronic Load Module with CC CV CR CP Operating Modes 60V/10A 100W

Description:
- The DC electronic load module MDP-L1060 is the first programmable intelligent DC electronic load module of the MDP mini digital power supply system. MDP-L1060 has four operating modes: constant current (CC), constant voltage (CV), constant resistance (CR), and constant power (CP), with a maximum power of 100W and a maximum voltage and current of 60V and 10A. It also provides comprehensive intelligent safety protection functions such as overvoltage (OVP), low voltage (UVP), over-current (OCP), over-voltage (OPP), over-temperature (OTP), polarity reversal (Anti-Reverse), and is the portable intelligent solutions of various products testing situations such as AC/DC power supplies, DC/DC converters, chargers, batteries, adapters and power electronic components, etc.

- MDP-L1060 continues the stackable appearance design of MDP mini digital power supply series. It is small and portable overall. The built-in 650mAh battery can meet the short-term wireless load testing. The main body of the load module adopts a CNC aluminum alloy frame, with built-in high-efficiency brass heat dissipation fins and high-speed heat dissipation fans, which can automatically adjust the wind speed for heat dissipation according to load consumption. There are hollow decorative pieces in the front and back of the machine body, maximizing the air intake of the equipment and ensuring heat dissipation speed. The load input port adopts 4mm gold plated standard three-way input port, and is equipped with XT30 remote compensation input interface, which can complete more accurate load testing.

- As an electronic load module of the MDP series, MDP-L1060 can be wirelessly connected to the display and control module (MDP-M01) for complex remote control, achieving advanced functions such as battery capacity testing, internal resistance testing, factory testing, dynamic testing, overcurrent protection testing, and flexible triggering options, resulting in stronger usability.

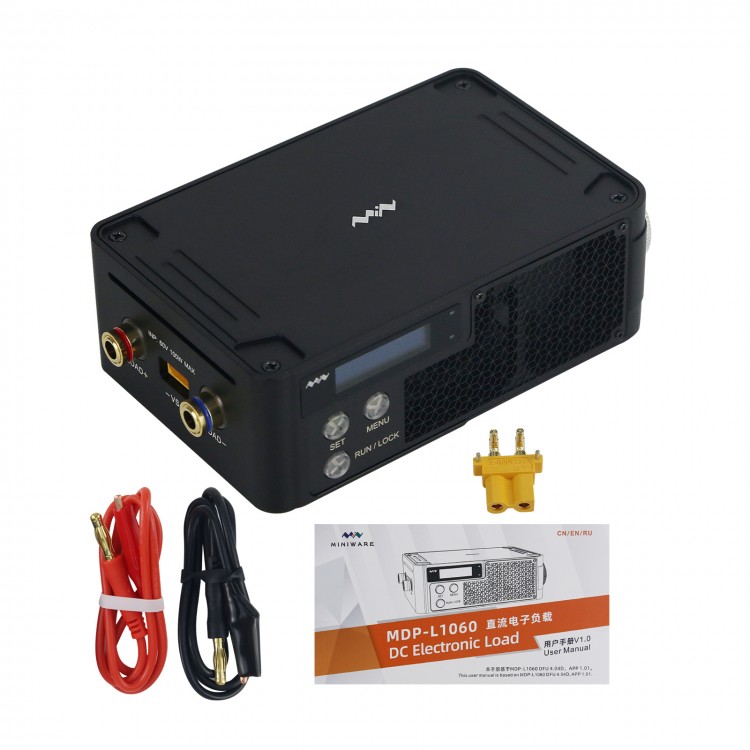

Package Included:
- 1 x MDP-L1060
- 1 x XT30 Female Connector
- 2 x Input Cable (4.0mm Banana to Alligator)
- 1 x User Manual
