MDP-M01 Smart Digital Monitor + MDP-P906 Mini Power Supply Module Digital with 30V 10A 300W Output

MDP-M01 Smart Digital Monitor + MDP-P906 Mini Power Supply Module Digital with 30V 10A 300W Output

MDP-M01:
Description:

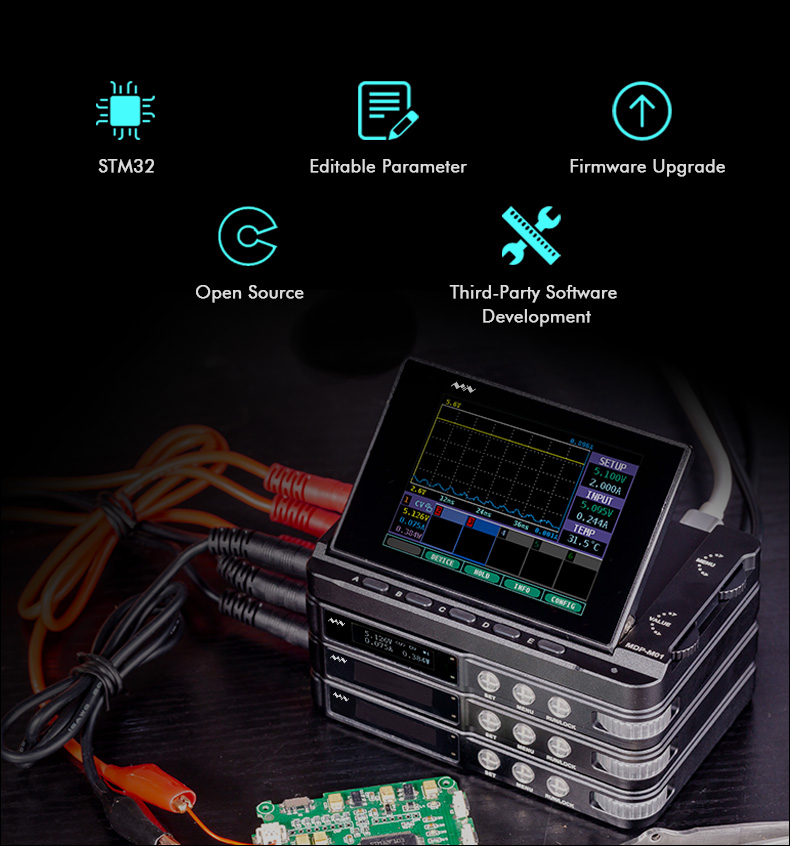

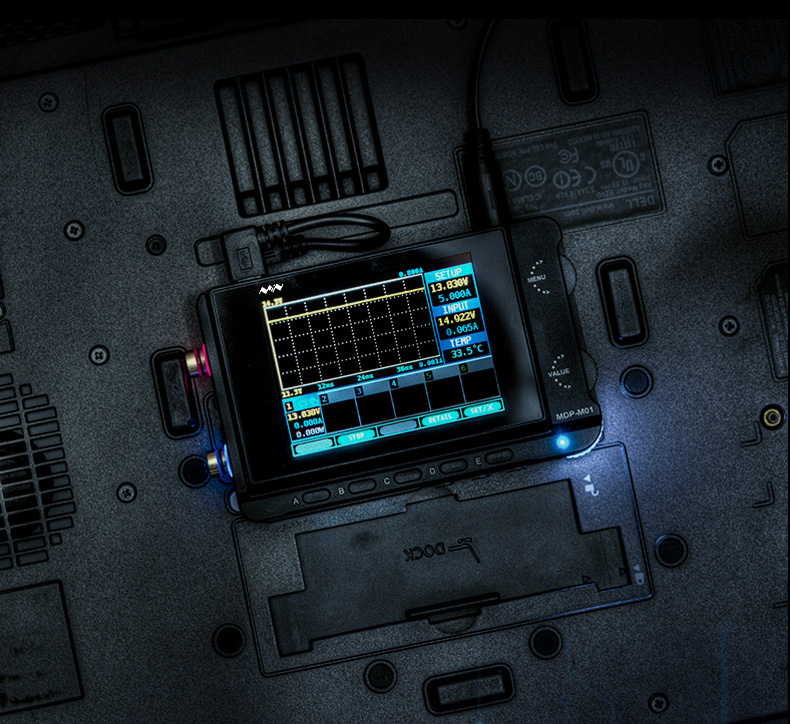

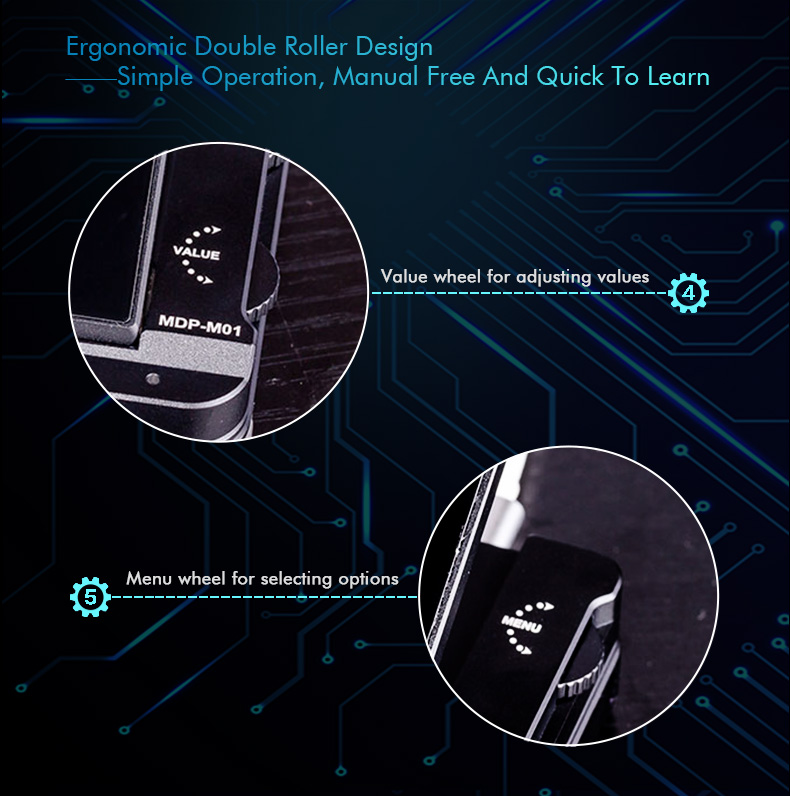

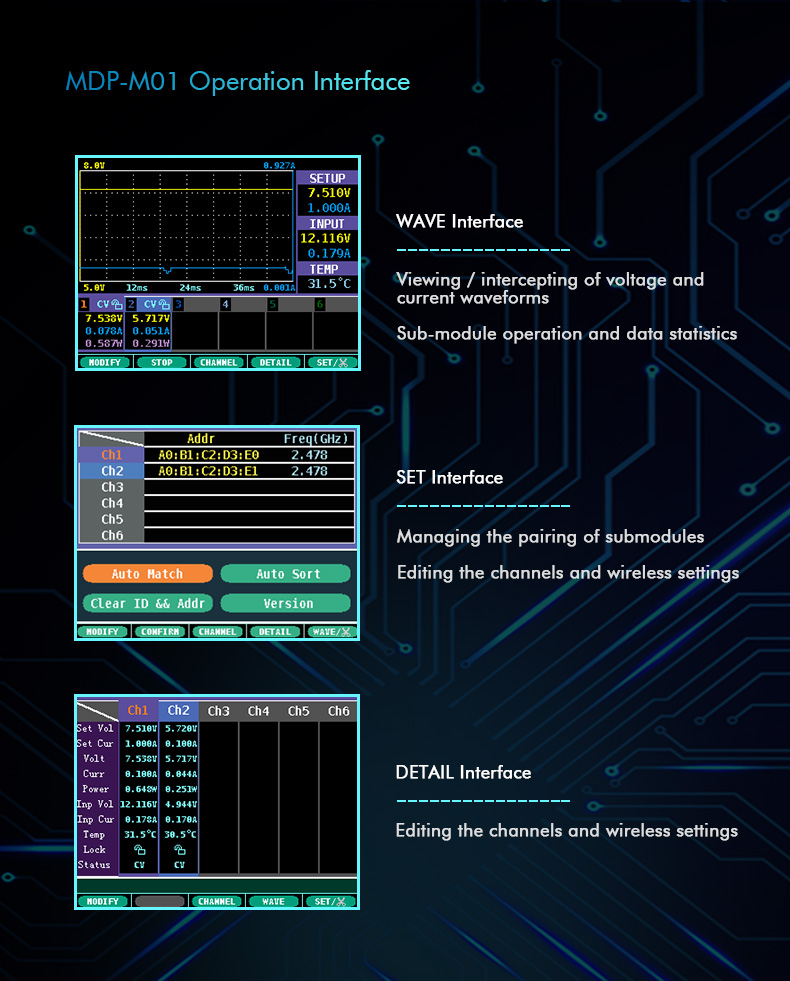

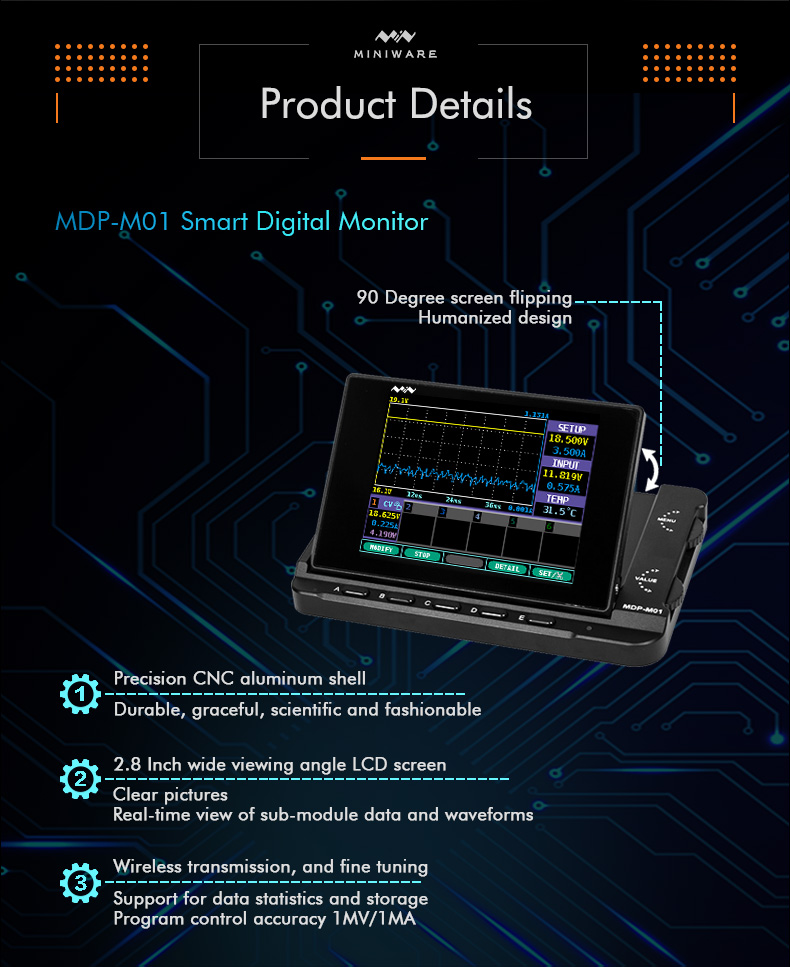

MDP-M01 Display Control Module: equipped with a 2.8-inch TFT screen, it can display the voltage-current waveform in real time, support data statistics, and automatically pair with and control six sub-modules (digital power modules). It is with dual thumb wheels and 90-degree scrolling user-friendly design.

Parameters:
- Screen Size: 2.8" TFT
- Screen Resolution: 240*320
- Power Input: Micro USB power input, or taking power from sub-module via dedicated power cable
- Size: 107 x 66 x 13.6mm/4.2 x 2.6 x 0.5"
- Weight: 133g/0.3lb
- Other Functions: Can control upto6sub-modules; Upgrade firmware through Micro USB

MDP-P906:
Description:

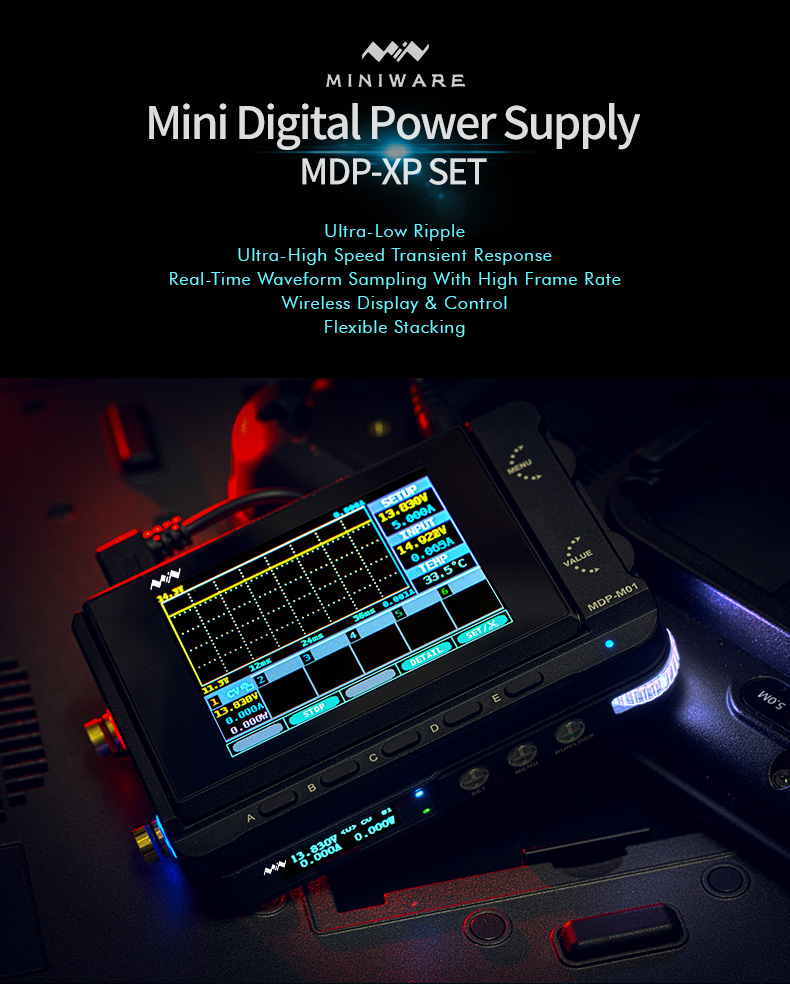

MDP-P906 is the second digital power supply module of MDP series, following MDP-P905. MDP-P906 has a built-in cooling fan, and a maximum output power up to 300W, which meets a wider range of testing needs and application scenarios. Through 2.4G wireless communication, it can be connected to MDP-M01 Smart Digital Monitor module to realize the free combination of multiple channels of 300W per channel, and it is also stackable with MDP-XP set (MDP-M01 + MDP-P905) to form a multiple modular portable Mini Digital Power System.

MDP-P906 has the index, stability and reliability comparable to a professional power supply. It can output pure current, and provide powerful functions such as programmable output, timing output, timing control, automatic compensation, boost mode, etc., making itself a real cost-effective, smart and customized programmable linear DC power supply.

MDP-P906 adopts precision CNC machined aluminum alloy shell, with fine workmanship, novel, mini and beautiful appearance. It completely subverts the rigid image of traditional desktop power supply. With stackable modular design and wireless communication function, MDP-P906 can work independently or paired, both on the workbench, and be carried out for on-site maintenance. MDP-P906 is a perfect solution for electronic engineer, especially field application engineers to meet different needs of power sources.

Features:

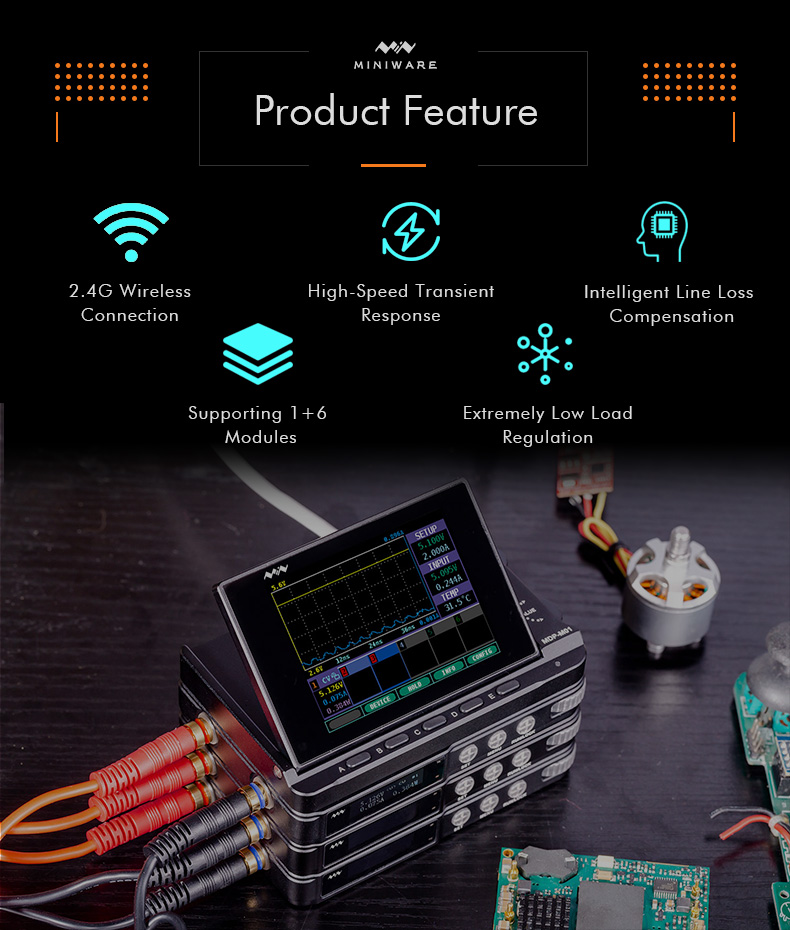

- 2.4G wireless communication: wireless connection with a display control module

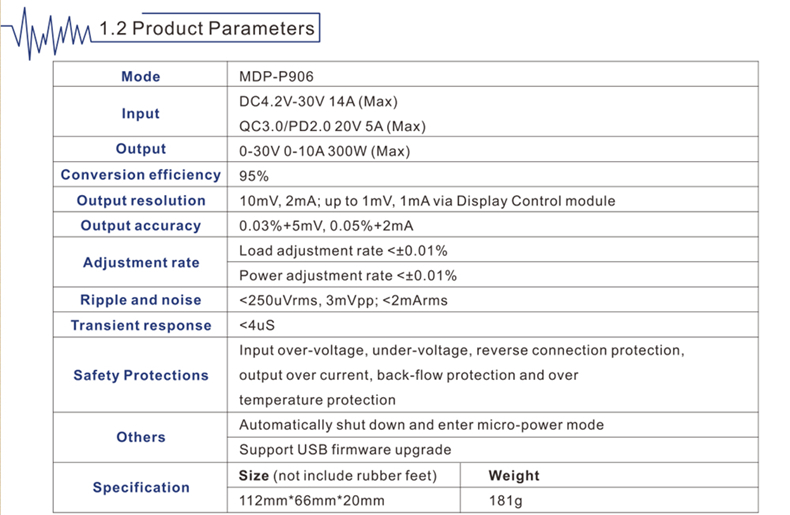

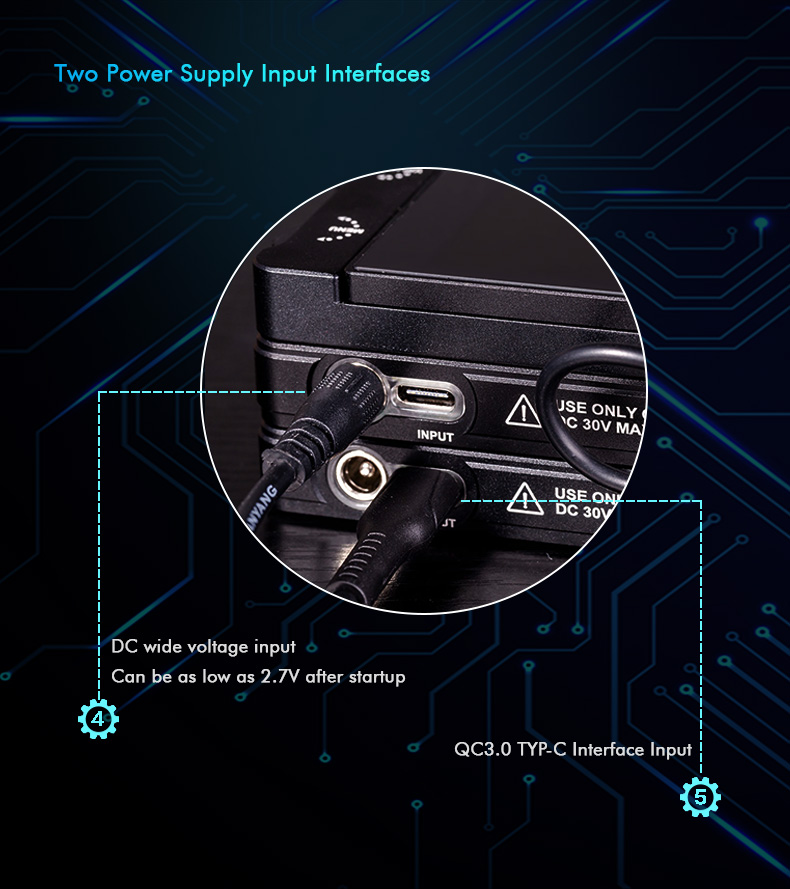

- Support DC 4.2V-30V input (DC5.5/2.5 interface)
- High compatibility: Support 20V PD/QC fast charging protocol power supply

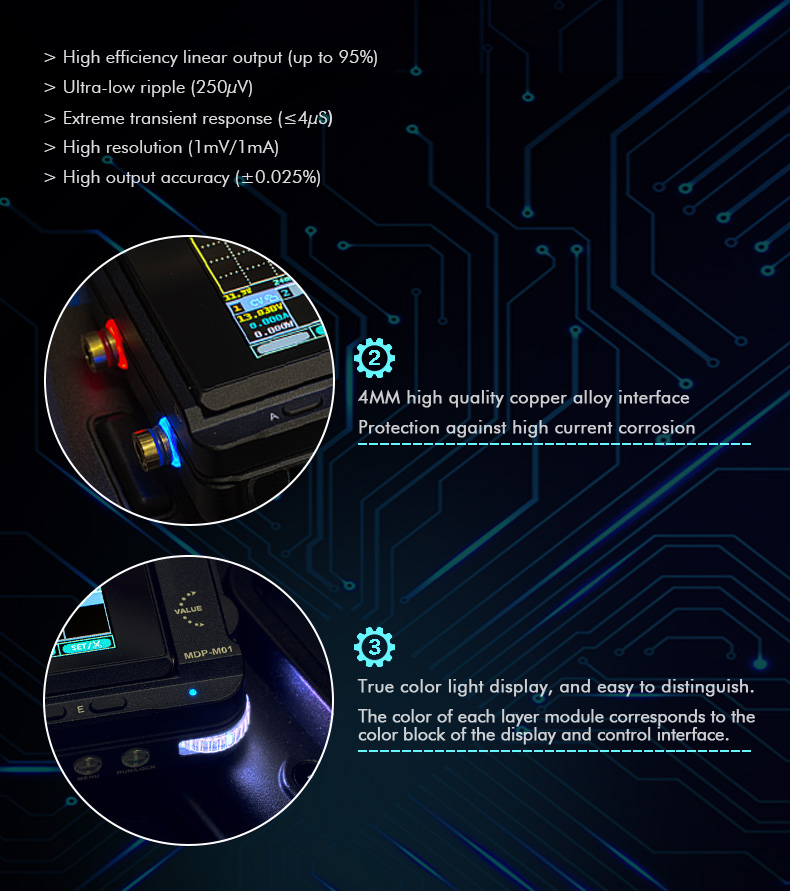

- 95% high-efficiency programmable linear output, output power up to 300W
- Built-in silent, intelligent temperature-controlled cooling fan
- High-speed transient response, low ripple and noise
- Support strong mode and strong reliability; easy to deal with various electrical equipment
- Low load regulation, intelligent line loss compensation, intelligent input current limiting, and maximized power

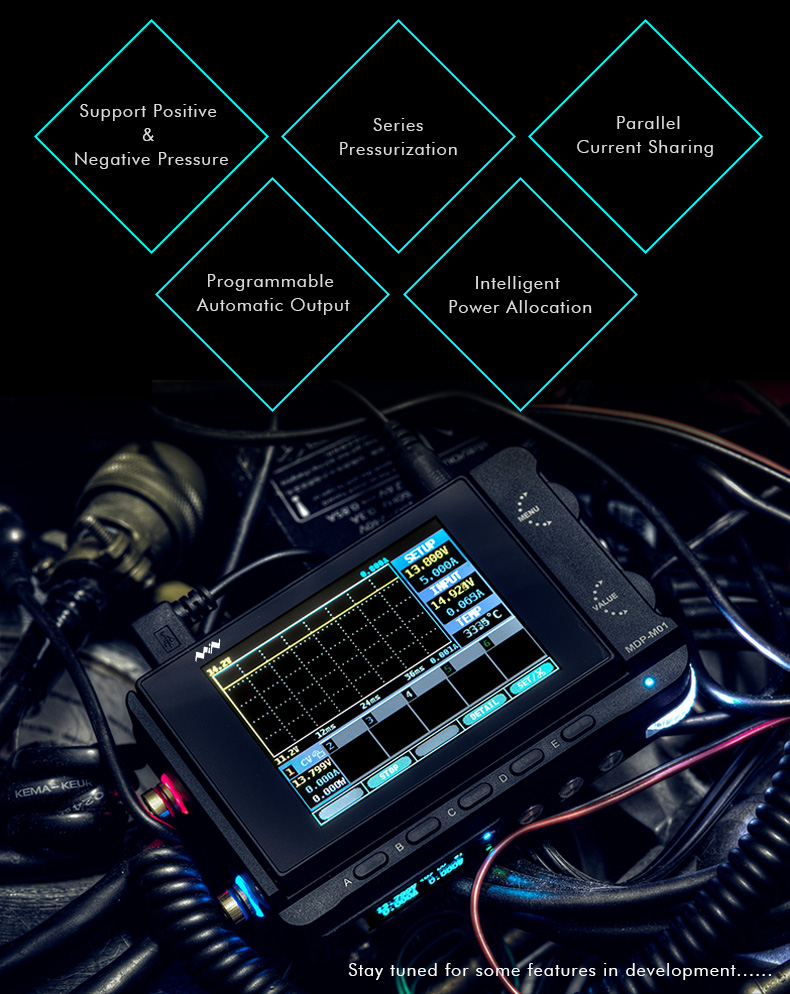

- Support the use of multiple machines in series or parallel to meet the needs of ultra-wide power supply
- Safety protection: input over-voltage, under-voltage protection, reverse connection protection, over-current protection, back-flow protection, and over-temperature protection

Applications:
- General testing and teaching experiments in R&D laboratories
- Repair of digital products such as mobile phones and laptops
- RF, microwave circuit and module power supply testing and data logging
- Provide pure power supply for high-precision digital-analog hybrid circuits and high-fidelity audio equipment
- Characterization and troubleshooting of devices and circuits
- Quality Control and quality inspection
- Digital products, model aircraft and vehicle emergency power supply

Package Included:
- 1 x MDP-M01
- 1 x MDP-P906
