Description:
The robot kit including 60 kinds of parts,  can be assembled into 4 different drawing robots: manipulator arm-mScara; mural machine-mSpider, Egg machine-mEggBot and Track car-mCar.

mScara: mScara is a SCARA (Selective Compliance Articulated Robot Arm) driven by stepper motors. If you install a pen on mScara, it can draw pictures on a flat surface. Replacing the pen with a laser diode, it can turn into a desktop laser engraver.

mSpider: mSpider is a drawing robot which can draw pictures on a wall or a white board. Two stepper motors control the movement of mSpider though strings. Theoretically, it can draw in a huge range by increasing the length of strings.

mEggBot: mEggBot is designed to draw on things that are improbable to print on, such as eggs or ping-pong balls. It can be used to write letters or to draw expressions on eggs, or to draw Easter eggs.

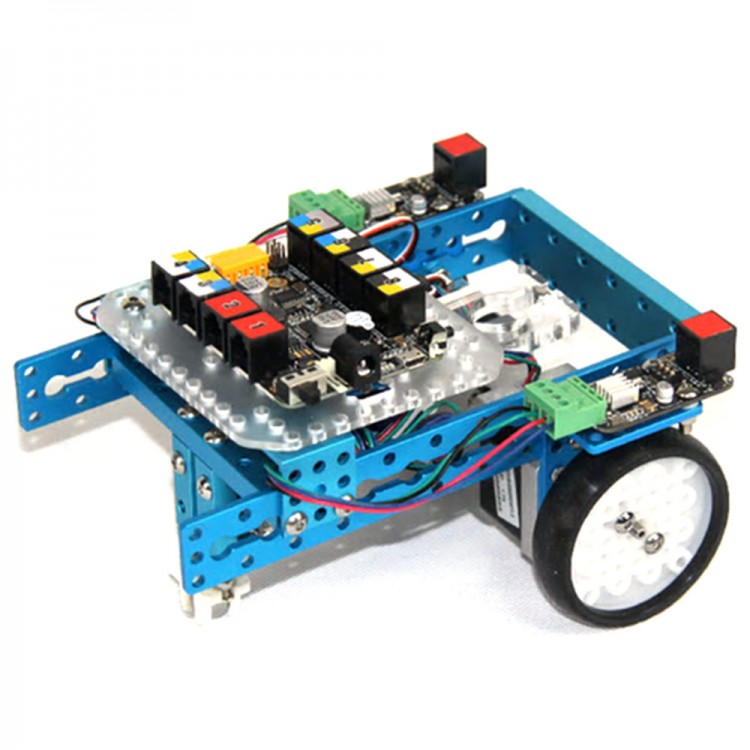

mCar: mCar is a three-wheel robot car. It contains two stepper motor drive wheels and a ball caster wheel. It can draw its own movement tracks on the surface. If you install a chalk instead of a pen, it can draw on the floor.

Specification:
- Input Voltage : AC 100-240V
- Output Voltage : DC 12V
- Input current: 0.6A
- Output current: 2.0A
- Frequency: 50-60Hz
- Main controller board: Orion main controller board (compatible with Arduino UNO)
- Software: mDraw
- Connection: USB
- mDraw supports Plain SVG,BMP to SVG format
- mDraw supports Windows7 and Mac OS

Working area:
- mScara: Two circles forms 120 degree area, outter circle dia.208mm, innerdia.168mm
- mSpider: No limit
- mEggBot: Cylindrical shape: Length 60mm*diameter 10-60mm
- mCar: No limit

Package List:
- 1 * Laser Head
- 1 * Bluetooth module
- 1 * Beam 0824-032
- 2 * Beam 0824-096
- 3 * Connector
- 3 * Bracket 3x3
- 3 * Plate 3x6
- 1 * Bracket U1
- 4 * Timing Pulley Slice 90T
- 2 * 42BYG Stepper Motor Bracket
- 2 * Plastic Timing Pulley 90T
- 2 * Tire 90T B
- 1 * Caster Wheel
- 1 * Cross&2.5mm HEX Screwdriver
- 2 * Rubber Blanket
- 2 * Shaft Connector 4mm
- 2 * Timing Pulley 18T
- 1 * Pen Holder and V Clamp
- 2 * 2 Inch G Clamp
- 1 * Plastic Hinge
- 1 * Screw M4x35
- 1 * Plastic Hinge Gasket
- 1 * Spring 0.6x6x50
- 1 * Circle Shaft D4x80mm
- 2 * Shaft Collar 4mm
- 5 * Flange Bearing 4x8x3mm
- 1 * Square Nut M4
- 3 * Nylon Cap Nut M4
- 2 * Timing Belt 112MXL
- 10 * Nylon Cable Tie 2 x100
- 1 *Elastic
- 1 * Rubber Bank
- 1 * HEX Key 1.5mm
- 1 * Wrench 5mm&7mm
- 26 * Screw M4x8
- 26 * Screw M4x8
- 42 * Screw M4x16
- 5 * Screw M4x22
- 6 * Headless Set Screw M3x5
- 8 * Countersunk Screw M3x8
- 1 * Threaded Shaft 4x39mm
- 50 * Nut M4
- 4 * Nylon Stud M4x30
- 2 * Plastic Ring 4x8x1mm
- 8 * Plastic Ring 4x7x3mm
- 4 * Plastic Ring 4x7x10mm
- 2 * Plastic Rivet R4060
- 4 * Plastic Rivet R40120
- 1 * 9g Micro Servo Pack
- 2 * 42BYG Stepper Motor
- 2 * Acrylic stents
- 1 * Orion main controller board
- 1 * Battery case 6AA
- 2 * Me Stepper Motor Driver
- 1 * RJ25 Adapter
- 1 * AC/DC Adapter
- 1 * 9g Servo Extension Cord
- 2 * RJ25 Cable-20cm
- 1 * RJ25 Cable-35cm
- 1 * Micro USB Cable
