Description:

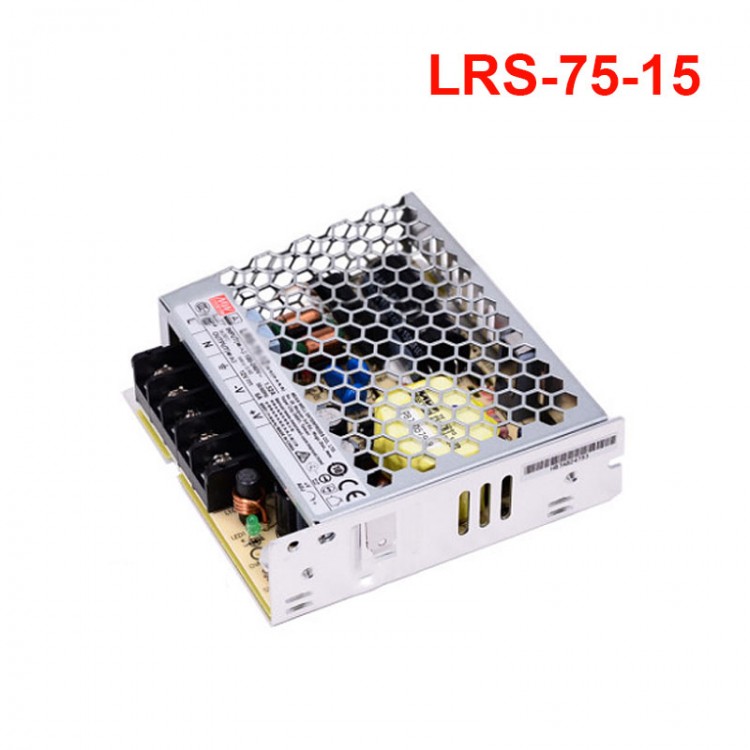

LRS-75
series is a single-output enclosed type power supply with 30mm of low
profile design. Adopting the full range 85~264VAC input, the entire
series provides an output voltage line of 5V, 12V, 15V, 24V, 36V and
48V.
In addition to the high efficiency, the design of metallic
mesh case enhances the heat dissipation of LRS-75 that the whole series
operates from -30℃ through 70℃ under air convection without a fan.
Delivering
an extremely low no load power consumption (less than 0.3W), it allows
the end system to easily meet the worldwide energy requirement. LRS-75
has the complete protection functions and 5G anti-vibration capability;
it is complied with the international safety regulations such as TUV BS
EN/EN62368-1, BS EN/EN 60335-1, BS EN/EN61558-1/-2-16, UL62368-1 and
GB4943. LRS-75 series serves as a high price-to-performance power supply
solution for various industrial applications.
Features:
- Universal AC input/Full range
- Withstand 300VAC surge input for 5 second
- No load power consumption <0.3W
- Miniature size and 1U low profile
- High operating temperature up to 70℃
- Protections: Short circuit/Overload/Over voltage
- Cooling by free air convection
- Compliance to IEC/BS EN/EN 60335-1 (PD3) and IEC/BS EN/EN61558-1, -2-16 for household appliances
- Operating altitude up to 5000 meters (Note.7)
- Withstand 5G vibration test
- High efficiency, long life and high reliability
- LED indicator for power on
- Over-voltage category Ⅲ
- 100% full load burn-in test
Applications:
- Industrial automation machinery
- Industrial control system
- Mechanical and electrical equipment
- Electronic instruments, equipment or apparatus
- Household appliances
Package Included:
- 1 x DC Power Supply
