MEBAY ATS220 8-36V ATS Controller Automatic Transfer Switch Controller with LED Display

MEBAY ATS220 8-36V ATS Controller Automatic Transfer Switch Controller with LED Display

Summary:

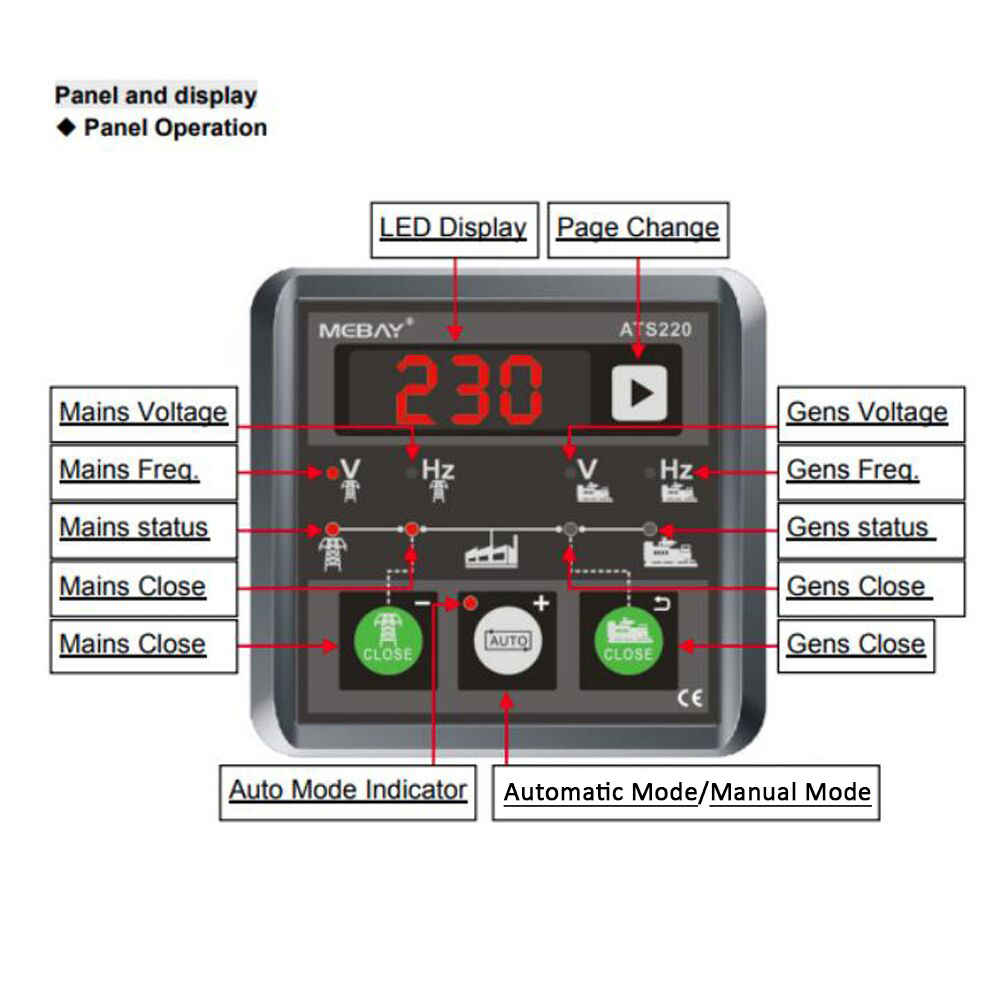

ATS220 is one controller with ATS system of Mains and genset power, which can control the ATS switch by automatic or manual mode to apply for mains and gens power. It is with 4 digits LED tube which can display the single-phase gens voltage, gens frequency, mains voltage, mains frequency. ATS switch working status can be also shown by LED.

All the parameters can be set through the buttons on the panel or PC port.

Main Features:
- 32 units Micro-procession technology is used.
- Wide voltage range: 8-36V.
- 4 digits LED tube which can display mains, voltage, frequency.
- Totally 7 relay's output, max current is 5A (250VAC).
- 1 group programmable switch input.

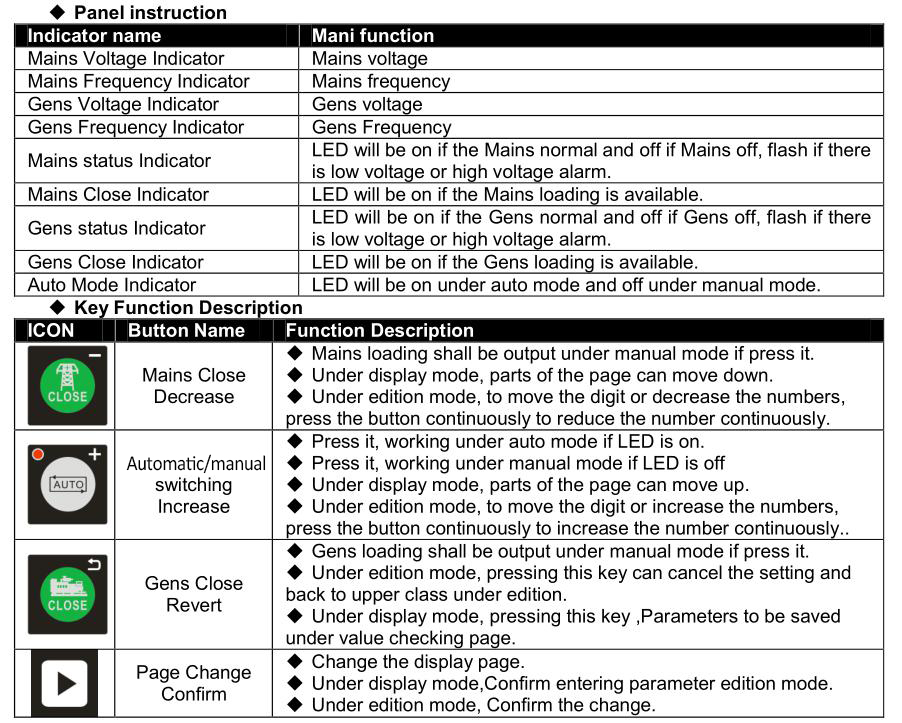

- Parameters can be set by front face buttons.
- With standard water-proof rubber, the protection level can reach at IP54;

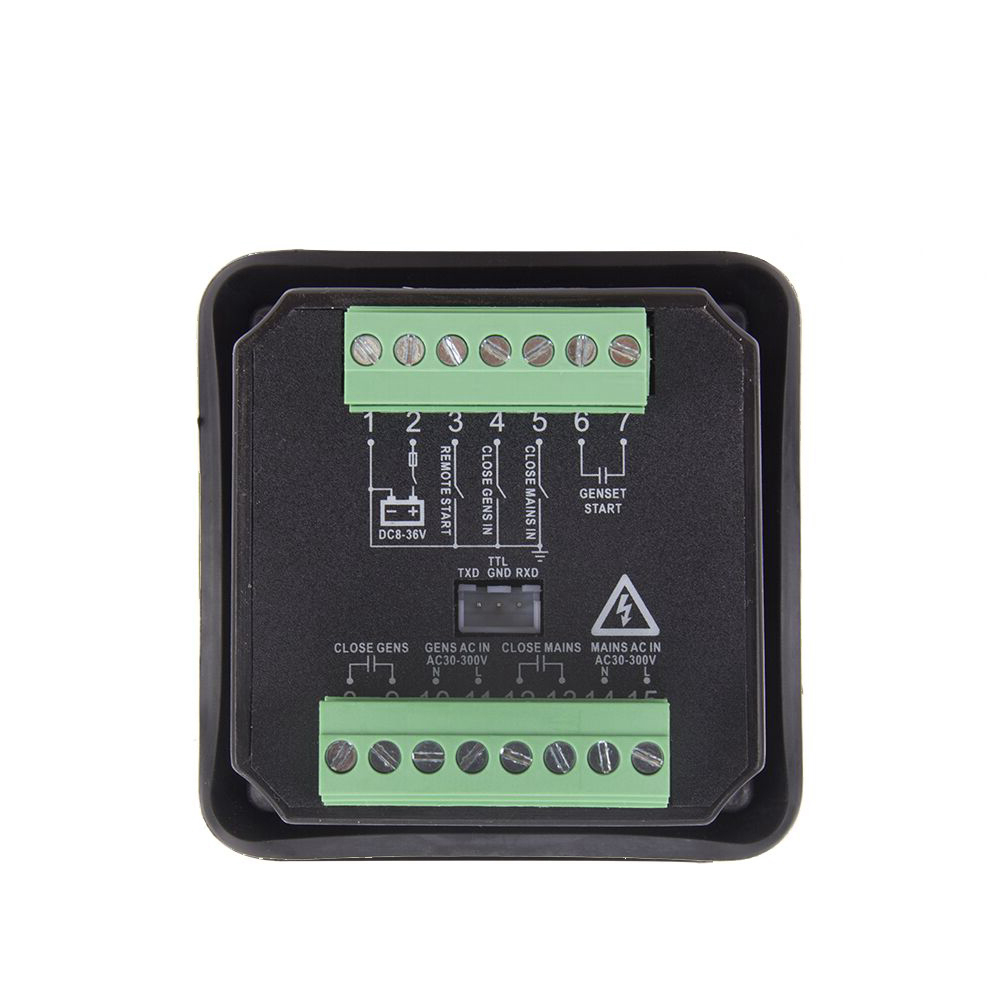

- All the connection are installed by European style terminals.
- Simulated mains function, crank conditions can be chosen.

Parameters Display:
- Mains phase voltage
- Mains Frequency
- Gens phase voltage
- Gens Frequency

Parameters:

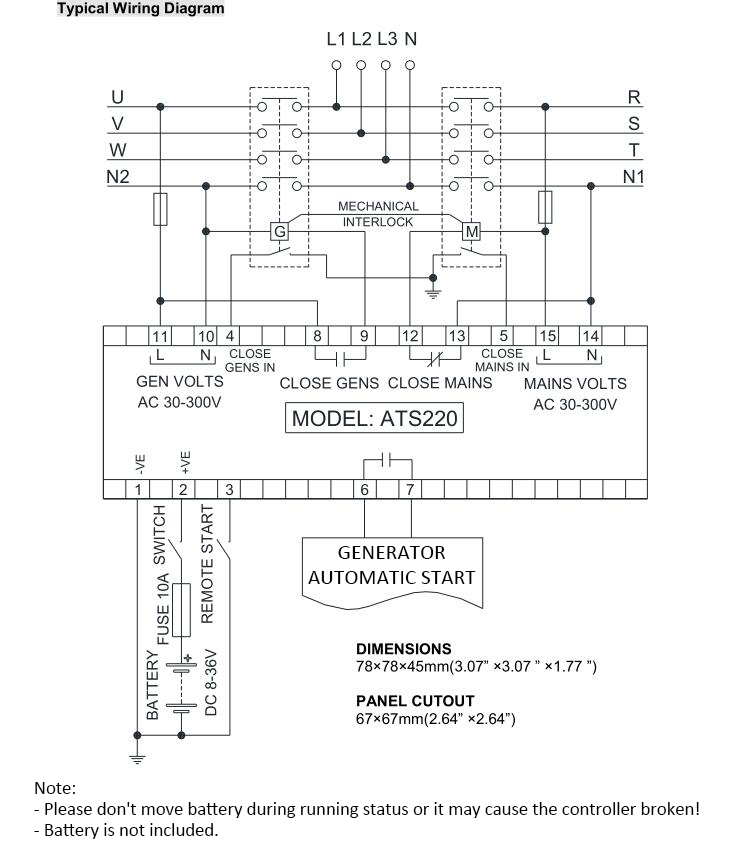

- Operation Voltage: DC8-36V Continuous
- Power Consumption: Standby: 24V MAX 1W; Working: 24V MAX 3W
- Mains AC Voltage Input: 30VAC-300VAC (ph-N)
- Gens AC Voltage Input: 30VAC-300VAC (ph-N)
- Gens Close Output: 5Amp (AC250V) free output
- Mains Close Output: 5Amp (AC250V) free output
- Gen Start Relay: 5Amp (AC250V) free output
- Switch Value Input: Available if connecting with Battery -
- Working Condition: -30 to 70℃
- Storage Condition: -40 to 85℃
- Protection Level: IP54: when waterproof rubber gasket is added between controller and its panel
- Overall Dimension: 78mm*78mm*55mm
- Panel Cutout: 67mm*67mm
- Weight: 0.3Kg

Package Included:

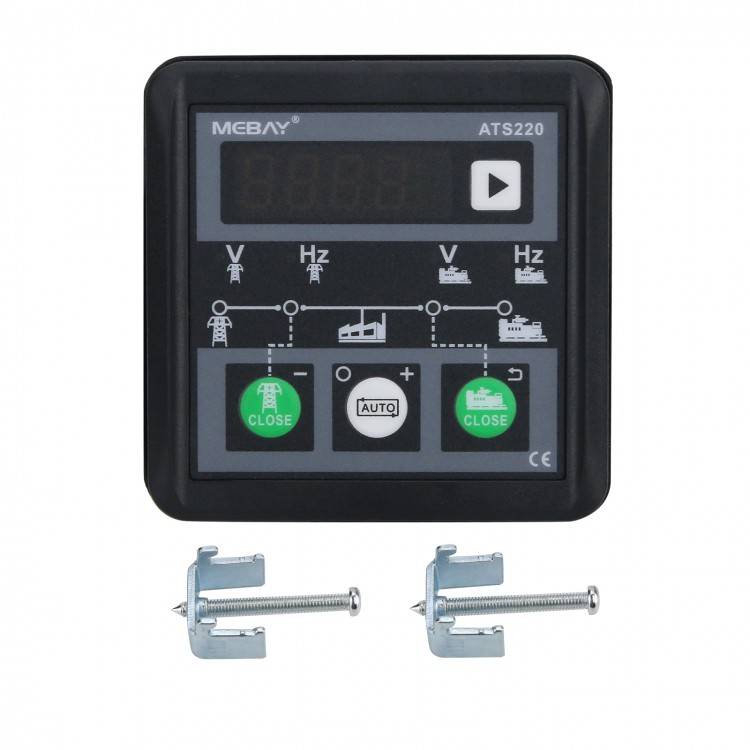

- 1 x ATS Controller

Note:
- Battery is not included.
