Generator/Mains ATS Controller Automatic Transfer Switch Controller ATS220

Availability: In stock, usually dispatched in 1 business day

  • Price:$46.63
  • Price in reward points: 466 Reward Points: 5
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $45.70 $44.76 $43.37 $41.50 Contact US
Quantity:

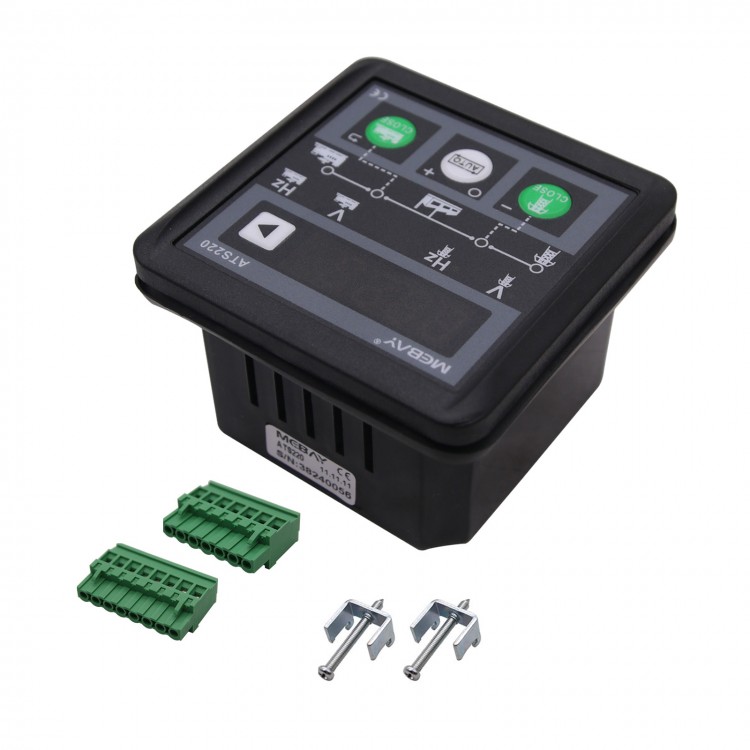

Generator/Mains ATS Controller Automatic Transfer Switch Controller ATS220

Description:

The ATS220 is a mains/generation automatic switching controller that can automatically or manually control the ATS dual power switch, which is suitable for all-way power generation applications. It has a 4-digit LED digital tube, which can display single-phase power generation voltage, power generation frequency, mains voltage, and mains frequency. It indicates the working status of the ATS switch through LED indicators.

All parameters of the controller can be adjusted through the controller panel buttons, or adjusted using a PC to meet different application requirements of the user.

Features:

- Controlled by 32-bit imported high-performance single-chip microcomputer.
- Wide voltage (8-36VDC) operating range.
- With 4-digit LED digital tube, it can display the voltage and frequency of mains and power generation.
- With 3 passive relay outputs, maximum current 5A (250VAC).
- One programmable input.
- All parameters can be set via the panel buttons.
- With a waterproof ring, the rear panel is protected to IP54.
- Modular design, all wiring is completed through European-style terminal blocks for easy installation.
- With analog mains function, flexible selection of unit start conditions.

Parameters Display:
- Mains Voltage
- Mains Frequency
- Generating Voltage
- Generating Frequency

Parameters:
- Operating voltage: DC8V to 36V continuous power supply
- Power consumption: Standby: 24V: MAX 1W; Working: 24V: MAX 3W
- AC voltage input: one-phase two-wrie 30VAC-300VAC (ph-N)
- Power generation voltage input: One-phase two-wire 30VAC-300VAC (ph-N)
- Generator closing output: Relay passive contact output, up to 5Amp (250VAC)
- Mains closing output: Relay passive contact output, up to 5Amp (250VAC)
- Unit start output: Relay passive contact output, up to 5Amp (250VAC)
- Digital input: Available if connected with Battery -
- Working conditions: -30 to 70 ° C
- Storage conditions: -40 to 85 ° C
- Protection Level: IP54: when waterproof rubber gasket is added between the controller and its panel
- Dimensions: 78mm*78mm*55mm
- Hole Spacing: 67mm*67mm
- Weight: 0.3Kg

Package Included:
- 1 x ATS Controller
