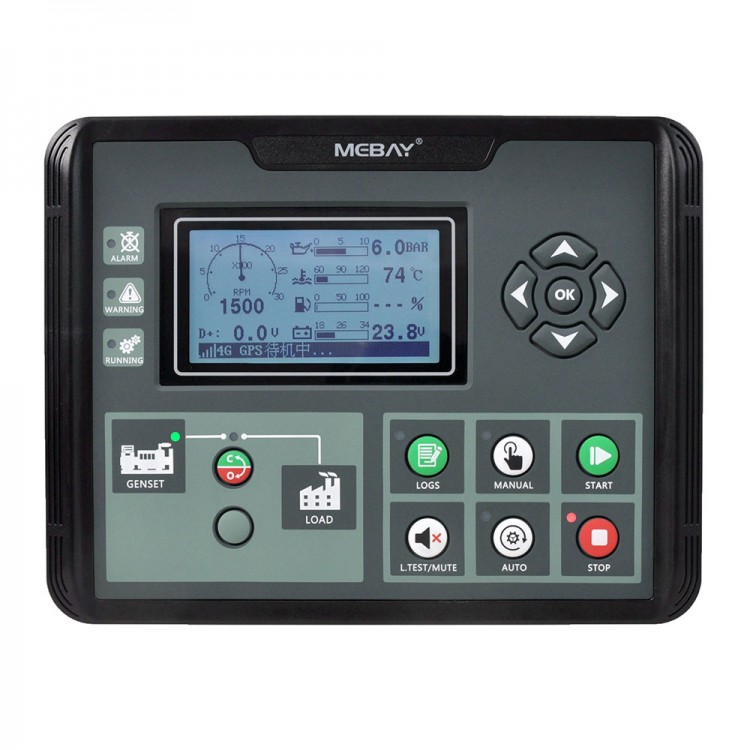

MEBAY DC50C-4G Genset Controller Generator Controller Supports 4G Cloud Control GPS Positioning

MEBAY DC50C-4G Genset Controller Generator Controller Supports 4G Cloud Control GPS Positioning

Description:
The controller is designed for starting, stopping, parameter monitoring and fault monitoring of diesel, gasoline and gas generator sets and supports parameter setting. At the same time, it supports 4G cloud control, GPS positioning, WEB and APP remote control and remote upgrade.

The genset controller adopts 3.5-inch 240*128 LCD display of high resolution and new original UI design. Parameters can be displayed via analog pointer and digital display screen. The LCD screen can display a variety of current fault states at the same time, which can effectively protect the shutdown when the generator set is not working normally.

The controller has Chinese Simplified and English display interfaces. All parameters of the controller can be adjusted through the controller panel buttons, or adjusted and monitored through the USB port of a PC or RS485 interface. It can be widely used in various types of generator set automation systems.

Comparison:
* DC50C-4G: used for stand-alone automation, to control the automatic start and stop of the generator set through the remote start signal;
* DC52C-4G: On the basis of DC50C-4G, the control function of mains monitoring and automatic switching of mains/power generation (AMF) is added. It is suitable for a stand-alone automation system composed of one generator set of one-way mains.

Features:
* It adopts 32-bit original high-performance MCU control;
* 3.5-inch 240*128 high-resolution LCD screen, with Chinese and English switchable;
* UI interface with pointer instrument and digital display, new original design;
* The screen protection adopts hard screen acrylic material, which is wear-resistant and scratch-resistant;
* Using silicone, the panel is waterproof, oil-proof and anti-ultraviolet, with good operating feeling and long service life;
* With USB interface: parameters can be set through the USB interface, enabling monitoring in real time. And parameters can be set when the controller is not powered on;
* With CAN communication interface and built-in J1939 protocol, it has matched more than 40 kinds of EFI engines;
* Multiple network standards: support mobile 4G/3G/2G, Unicom 4G/3G/2G and telecom 4G;
* The module has GPS positioning and base station positioning functions, which can realize real-time positioning of the unit;
* When an alarm occurs in the generator set, the data can be uploaded to the server immediately;
* Acquisition and display of multiple engine and generator parameters;
* Input and output port status display;
* Built-in real-time clock, with shift planning and maintenance planning function: the monthly or weekly duty plan of the generator set can be arranged through the setting, and the monthly or weekly maintenance plan of the generator can be arranged for more flexible use of the generator set;
* Maintenance countdown function: you can set the maintenance timer or date;
* With black box function: Real-time storage of unit related parameters when fault alarm, convenient to find the cause of the fault;
* It has 6-way output, of which 4-way output can be configured, each channel can choose more than 20 functions, and 3 sets of outputs are passive contacts;
* With 5-way configurable input, each channel up to more than 20 functions to choose from;
* It has 3-way analog input of sensors, of which the oil pressure sensor is compatible with voltage signal input, and a variety of display units can be configured;
* Battery charging control: The charger can be controlled according to the battery voltage to effectively prevent the battery from overcharging and power loss;
* The sensor curve can be customized by panel buttons and PC software;
* Suitable for three-phase four-wire, three-phase three-wire, single-phase two-wire and two-phase three-wire (120V/240V) power supply 50/60HZ system;
* A variety of starting conditions (speed, frequency and oil pressure) combination can be selected;
* Control and protection function: realize automatic start/stop of generator set, ATS switching and perfect fault display and protection;
* With waterproof ring: the protection performance of the panel after installation reaches IP54;
* Modular design: all wiring is completed through European-style terminals, and it is very easy and convenient to finish the assembly, connection, maintenance and replacement of equipment.

Parameter Display:
* Engine speed;
* Engine oil pressure;
* Engine temperature;
* Engine fuel level;
* Engine battery voltage;
* Engine charging voltage;
* Cloud-controlled parameters (displayed in the status bar);
* Generator three-phase phase voltage L-N;
* Generator three-phase line voltage L-L;
* Generator three-phase current A;
* Generator frequency Hz;
* Generator power factor COSφ;
* Generator active power KW;
* Generator apparent power KVA;
* Generator reactive power KVar;
* The load rate % of the generator this time;
* Generator cumulative average load ratio %;
* The generator generates electrical energy Kwh this time;
* The generator accumulates electrical energy Kwh;
* Cumulative number of starts of the unit;
* The cumulative number of motor actions of the unit;
* Cumulative power-on time of the module;
* The operating time of the unit;
* Cumulative operating time of the unit;
* Unit maintenance countdown;
* Input function display;
* Output function display;
* The current date and time.

Alarm Protection:
* Over-speed
* Under-speed
* Low oil pressure
* High temperature
* Low fuel level
* External instant alarm
* D+ open circuit
* The rotational speed signal is lost
* Sensor open circuit
* Over-frequency
* Under-frequency
* Power generation over-voltage
* Power generation undervoltage
* Over-current
* Current imbalance
* Over power
* Maintenance expiration
* Low water level alarm
* Emergency stop
* Startup failed
* Battery over-voltage
* Battery undervoltage
* The charger failed to charge
* Shutdown failure
* ECU shutdown alarm
* ECU communication failed

Specifications:
* Operating voltage: DC8V to 36V continuous
* Power consumption: Standby: 24V MAX 2W; Operating: 24V MAX 5W
* AC voltage input: one-phase two-wire 30VAC-276VAC (ph-N); Two-phase three-wire 30VAC-276VAC (ph-N); Three-phase four-wire 30VAC-276VAC(ph-N)
* Engine speed signal range: 50-10000Hz
* Maximum cumulative run time: 99999.9 hours (minimum save time 6 minutes)
* Fuel output: 16Amp DC + VE supply voltage output
* Motor output: 16Amp DC + VE supply voltage output
* Configurable output 1: 5Amp DC + VE supply voltage output
* Configurable output 2: 5Amp passive contact, one normally open and one normally closed
* Configurable output 3: 5Amp passive contact normally open output
* Configurable output 4: 5Amp passive contact normally open output
* Excitation output: Max 1Amp DC + VE supply voltage output
* GPRS antenna interface: standard SMA interface (female). Antenna is SMA interface (male)
* GPS antenna interface: standard SMA interface (female). The antenna is an SMA interface (male) active antenna
* Wireless network band: LTE-TDD: B34/B38/B39/B40/B41; LTE-FDD: B1/B3/B5/B7/B8/B20；WCDMA: B1/B5/B8; TD-SCDMA: B34/B39; GSM:850/900/1800MHZ
* SIM card type: Nano SIM
* Configurable input: active, connected to the negative electrode of the battery
* Working conditions: -25 to 65°C
* Storage conditions: -40 to 85°C
* Protection level: IP54 (when the controller and control screen are equipped with a waterproof ring)
* Insulation level: Apply AC2.2kV voltage between the AC high-voltage terminal and the low-voltage terminal, and the leakage current within 1min is not more than 3mA.
* Dimensions: 210 x 160 x 50mm/8.3 x 6.3 x 2"
* Hole spacing: 186 x 142mm/7.3 x 5.6"
* Weight: 0.9Kg/2Lb

Package Included:
* 1 x Set of Genset Controller

Note:
* SIM card and battery are not included in the package.
