MEBAY FC70DR Fire Pump Controller Accessory Suitable for Fire Pump Units Driven by Diesel Engines

MEBAY FC70DR Fire Pump Controller Accessory Suitable for Fire Pump Units Driven by Diesel Engines

Description:

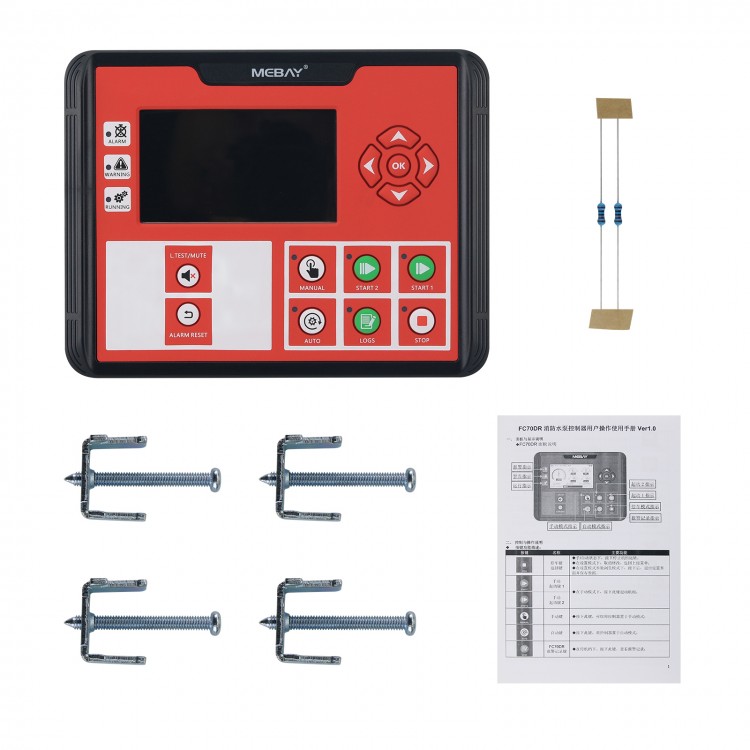

FC70DR controller is used for fire pump units driven by diesel engines. It boasts functions, including parameter setting, start, stop, parameter monitoring, fault monitoring and protection.

4.3-inch LCD screen display with brand new UI design is used in this controller. The screen can display related parameters directly. The LCD screen can also display various faults at the same time. Once the unit does not run normally, it can effectively achieve protection.

All parameters of the controller can be adjusted through panel buttons of the controller, or adjusted and monitored through the USB port using a PC or RS485 interface.

Features:
- High-performance MCU control;
- 4.3" TFT color LCD screen and switchable languages;
- UI interface of pointer instrument plus digital display, with new original design;
- Using hard screen acrylic material, the screen is wear-resistant and scratch-resistant;
- Using silicone, the panel is waterproof, oil-proof and ultraviolet-proof, with good hand feel for operation and long service life;
- With USB interface: parameters can be set through USB interface, monitoring in real time. And the parameters can be set when the controller is not powered on;
- With RS485 interface: the use of MODBUS protocol can achieve telemetering, remote signaling and remote control;
- With CAN communication interface and built-in J1939 protocol;
- Collect and display engine and fire pump parameters;
- Display the function and status of input and output ports;
- The setting interface adopts multi-level menu-type classification design, which is convenient and fast to use;
- Built-in real-time clock, with duty planning and maintenance planning function: through the setting, the monthly or weekly duty plan of the fire pump unit can be arranged, and the monthly or weekly maintenance plan of the fire pump machine can be arranged, so as to use the fire pump unit more flexibly;
- Three-level maintenance countdown function: you can set maintenance timing or date;
- With black box function: real-time saving of the relevant parameters of the unit when there are faults and alarms. It is convenient to find the cause of the unit failure;
- 11-way relay output, of which 7-way output functions can be configured. Up to 50 functions can be chosen for each channel;
- With 6-way configurable output and input. Over 40 functions to choose from for each channel;
- With 4-way sensor analog input: 4 sensor input types can be freely combined and configured, among which the oil pressure sensor is compatible with voltage signal input, and a variety of display units can be configured;
- 2 battery pack voltage sampling, 1 charger voltage sampling;
- Two sets of batteries can be switched for starting the unit;
- Battery charging control: It can control the charger work according to the battery voltage, effectively prevent battery overcharge and power loss;
- Sensor curve can be customized by panel buttons and PC software;
- Starting condition (speed, external input, oil pressure and charging) combinations can be selected;
- Control and protection function: realize automatic start/stop of the unit, perfect fault display and protection function;
- With waterproof ring: panel protection performance is IP54 after installation;
- Modular design: all wiring is completed through European-style terminals. It is very easy and convenient to assemble, connect, maintain and replace equipment.

Parameter Display:
- Engine speed;
- Engine oil pressure;
- Engine cooling water temperature;
- Engine oil level;
- Engine battery voltage 1;
- Engine battery voltage 2;
- Raw water's temperature;
- Engine charging voltage;
- Cumulative number of starts of the unit;
- Current operating time of the unit;
- Cumulative operating time of the unit;
- Three-level maintenance tips for the unit;
- 6-way switching input status display;
- 11-way relay output status display.

Alarm Protection:
- Engine over-speed and under-speed
- The rotational speed signal is lost
- The engine has low oil pressure
- The engine temperature is high or the temperature is low
- The engine has a low fuel level
- Raw water's temperature is high or the temperature is low
- External instant alarm
- Sensor open-circuit
- Level 1, 2 and 3 maintenance expiration
- ECU alarm shutdown
- ECU communication failure
- Low water level alarm
- Startup failure
- Shutdown failure
- Battery over-voltage and undervoltage

Specifications:
- Operating voltage: DC8V to 36V continuous
- Power consumption: MAX 3W (standby: MAX 2W)
- Engine speed signal range: 0-10000Hz
- Oil valve output: 16Amp passive contact normally open output
- Motor 1 output: 16Amp passive contact normally open output
- Motor 2 output: 16Amp passive contact normally open output
- Configurable output 1-2: 5Amp DC + VE supply voltage output
- Configurable output 3-7: 5Amp passive contact normally open output
- Configurable output 8: 5Amp passive contact one normally open and one normally closed output
- Analog sensors: 4 fixed sensors
- Excitation output: DC + VE supply voltage output
- Switching input 1-6: valid when the negative pole of the battery is connected
- Working conditions: -25 to 65°C
- Storage conditions: -40 to 80°C
- Protection class: IP54 (when the controller and control screen are equipped with a waterproof ring)
- Insulation level: Apply AC2.2kV voltage between the AC high-voltage terminal and the low-voltage terminal, and the leakage current within 1min is not more than 3mA
- Maximum cumulative run time: 99999.9 hours (minimum save time is 6 minutes)
- Dimensions: 210 x 160 x 50mm/8.3 x 6.3 x 2"
- Hole spacing: 186 x 142mm/7.3 x 5.6"
- Weight: 0.7Kg/1.5Lb

Package Included:
- 1 x Set of Fire Pump Controller

Note:
- Battery is not included.
