Metal Shell Dedicated for WZ5005 DC-DC Buck Converter Adjustable Power Supply Module DIY 50V5A
WZ5005 Specification:
- Display: 1.8-inch LCD
- Input voltage range: 6 - 55V
- Input voltage resolution: 0.01V
- Output voltage range: 0 - 50V
- Output voltage resolution: 0.01V
- Output current range: 0 - 5A
- Output current resolution: 0.001A
- Output power range: 0 - 250W
- Input voltage accuracy: ±(1% + 5)
- Output ripple: 150mV
- Temperature: -10℃ ~ 40℃
- Time range: 0 - 100hour (unit: s)
- Energy range: 0 - 9999.99WH
- Capacity range: 0 - 9999.99AH
- Capacity energy error: ±2%
- Screen brightness: 0 - 6 7levels
- Differential pressure: > 0.05% + 1V
- Product size: 120 x 74 x 35mm
- Packaging weight: about 269g

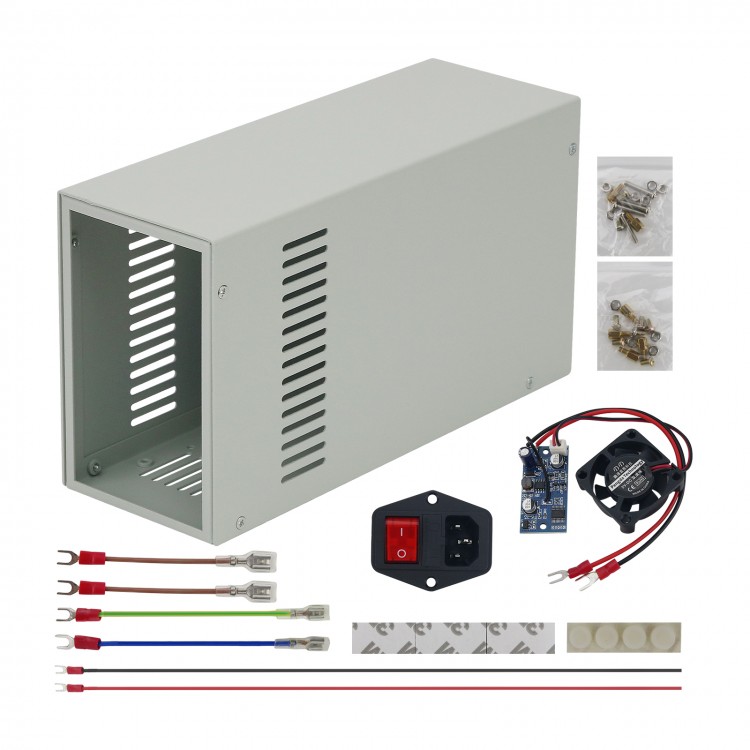

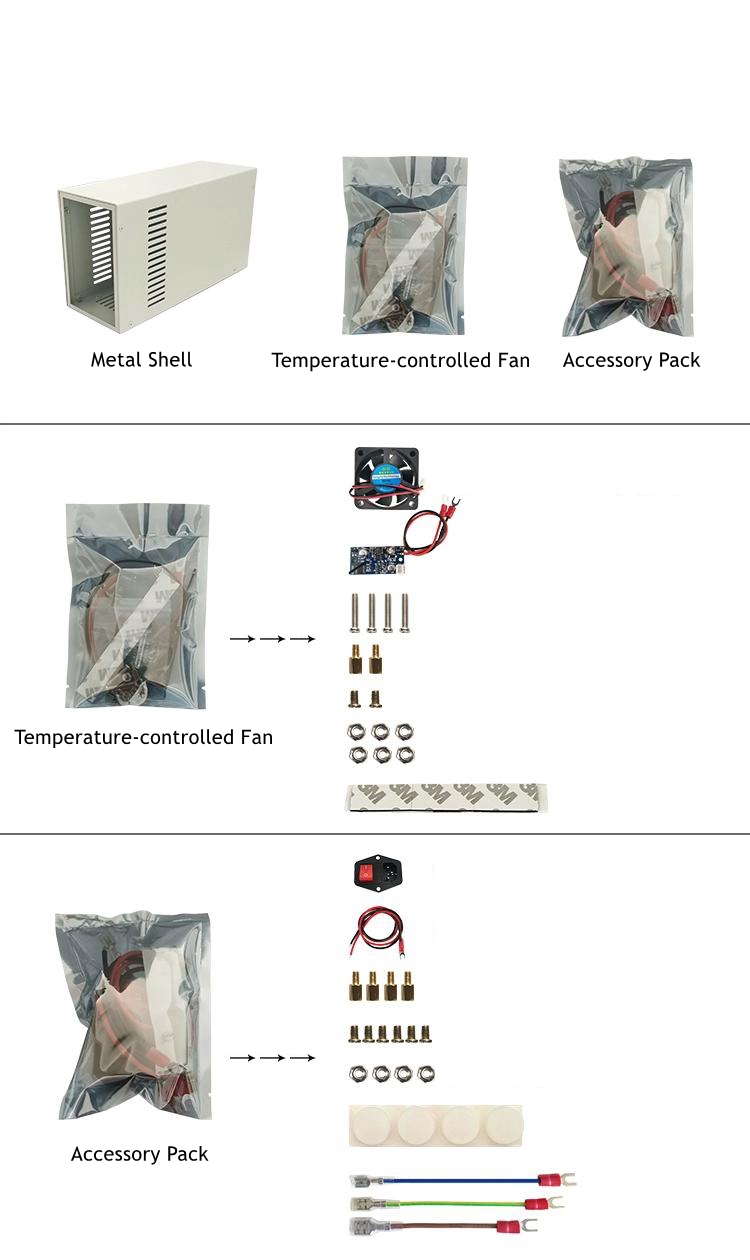

Package Included:
- 1 x Set of Metal Shell
Note:
- WZ5005 power supply module is not included.
- The AC-DC switch power supply is not included, please prepare it by yourself. (And it is recommended to input a voltage of DC52-55V)
