Dual Band VHF/UHF 25W
Noted:Dear friend, Frequency Range: 136-174MHz /400-480MHz
Description:
- The function of the new development menu Personalized design operation
- Dual Display, Dual Standby & Dual Track
- Mini Size, Power Supply: DC 12V/13.8V(Cigar-plug Cable)
- Cooling function: add a small fan
- Frequency Range Manual Programmable
- Software Password Programmable
- Voice companding and scrambler encryption
- Remote Stun, Remote Kill & Remote Revive
Feature:
- Dual display, dual standby & Dual Track
- Frequency adjusting
- Working mode selecting
- Scrambling encryption function
- Voice companding function
- Frequency/Channel scan function
- Reverse frequency setting
- Busy channel lock-out (BCL)
- Time-out timer (TOT)
- High/low power selectable
- CTCSS/DCS encoding and decoding
- Broadband (Wide)/Narrow band (Narrow) selectable
- Frequency Step Selectable 2.5/5/6.25/10/12.5/25/50KHz
- Level Threshold “Squelch” adjustable from 0 to 9
- Tri-color background light selectable
- PC software programmable
- FM radio function
- Operation for manual channel memory and delete
- Automatic lock-out
- DTMF signal setting
- DTMF signal
- PTT ID Setting
- Remote control function
- Remote monitoring
- Remote stun
- Remote kill/shaking
- Remote reliving
- Alarm function
- Group calling function
- Team calling function
- Selected calling function
- Function key guide voice(BEEP)
- SFT/Slip frequency direction
- OFFSET/Slip frequency
- 1000Hz/1450Hz/1750Hz/2100Hz selecting
|
All of our item are brand News |
||
|
Model |
BJ-218 |
|
|
Color |
Black |
|
|
Frequency Range |
UHF:400-480MHz&VHF:136-174MHz |
|
|
System |
F3E(FM) |
|
|
Channel capacity |
256 |
|
|
Input voltage |
DC13.8V(±15%), negative grounding |
|
|
Output power |
H:25W, M:10W, L:5W |
|
|
Channel Spacing |
12.5KHz/25KHz |
|
|
Frequency Spacing |
2.5/5/6.25/10/12.5/15/25/50KHz |
|
|
Squelch way |
CTCSS/DCS/DTMF |
|
|
Antenna impedance |
50 ohm |
|
|
Frequency stability |
±2.5ppm @ -10°C~+60°C |
|
|
Working temperature |
-20°C~+60°C(-4°F~+140°F) |
|
|
Max. Frequency deviation |
±5KHz |
|
|
Noise radiation |
<=-60dB |
|
|
Flexibility |
<=0.2Uv(12dB SINAD) |
|
|
Max. Audio output |
2W @ 8 ohm 5% distortion |
|
|
Working current |
Receive |
0.3A(SQL) |
|
Transmit |
5A(Max.) |
|
|
Dimension |
105x30x106mm(WxHxD not including the outparts) |
|
|
Weight |
About 0.5kg | |

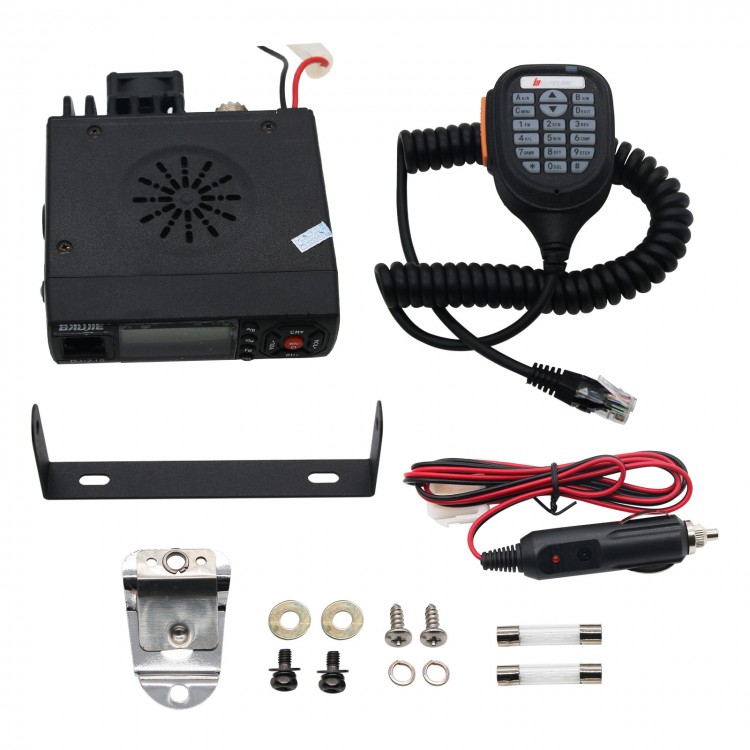

Package includes:
- 1 x BJ-218 136-174/400-470MHz Mini Mobile Radio Transceiver
- 1 x Microphone
- 1 x Car Power Cable
- 1 x Power Cable
- 1 x Mounting bracket
- 1 x Screw
- 1 x User's manual
