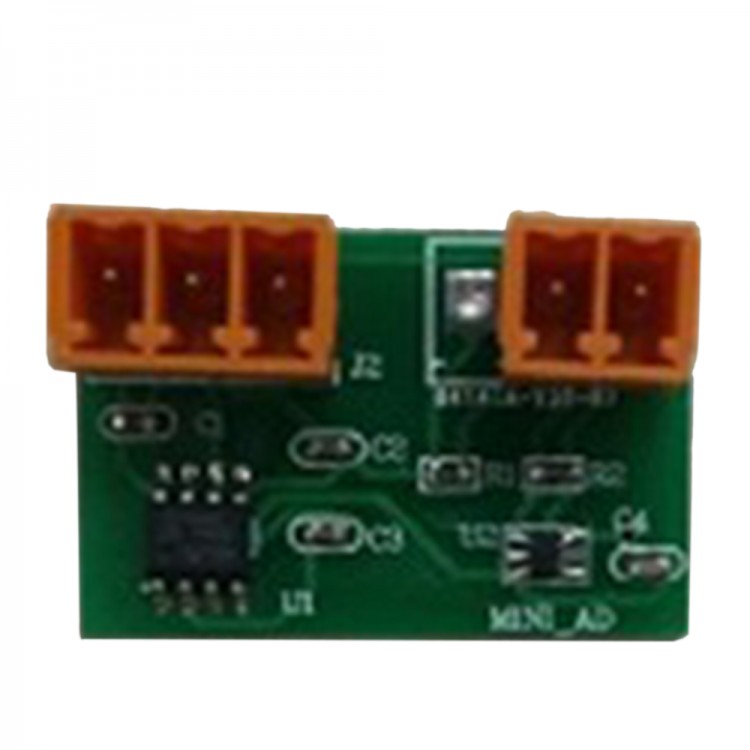

Mini FSR 4 Channels Analog Circuit Resistance to Voltage Module Pressure Transmitter for DIY
Specification:
- Compatible with 5V power input and 3.3V power input
- 4 channels

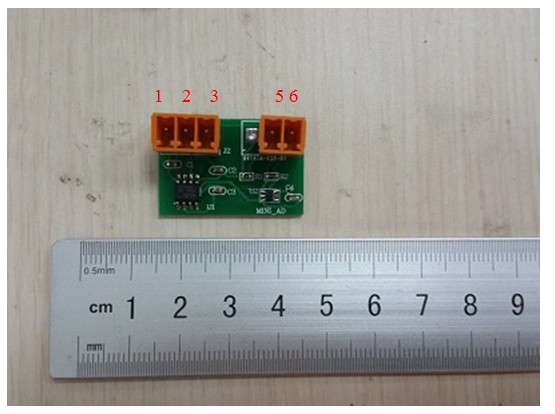

- FSR series sensor pin 2 direct access to 5, 6
- Output voltage: Vout=Vcc/ (R/Rref+1), Vout is the output voltage; R is the resistance of the pressure sensor (KOhm); VCC is the power supply voltage; Rref (R2) is the feedback resistor (5.1K);
- 1 for VCC,
- 2 for the ground,
- 3 for the signal output
Package included:
- 1 x FSR Single Channel Analog Circuit module
