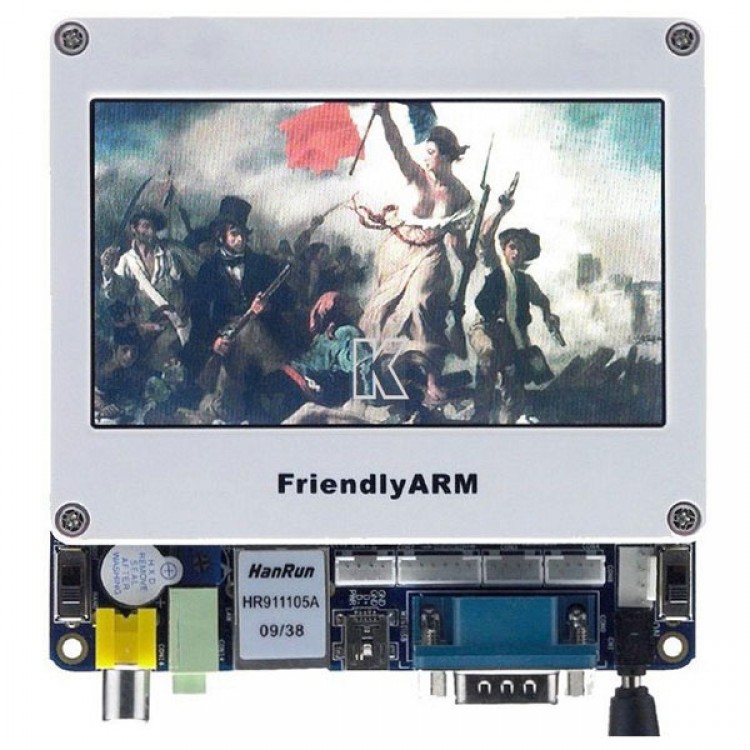

Mini6410 + 4.3" LCD Android2.3 533MHz S3C6410 256M + 1G ARM11 Development Board
Description

- Mini6410 | S3C6410 ARM11 Board
- FriendlyARM Mini 6410 SBC (Single-Board Computer) with 533 MHz S3C6410 ARM11 processor. The board measures 11 cm x 11 cm, ideal for learning about ARM systems.

Specification
- Dimension: 110 x 110 mm
- CPU: 533 MHz Samsung S3C6410A ARM1176JZF-S with VFP-Unit and Jazelle (max freq. 667 MHz)
- RAM: 128 MB / 256 MB DDR RAM, 32 bit Bus
- Flash: 256 MB / 1GB NAND Flash
- EEPROM: 1024 Byte (I2C)
- Ext. Memory: SD-Card socket
- Serial Ports: 1x DB9 connector (RS232), total: 4x serial port connectors
- IR: Infrared Receiver
- USB: 1x USB-A Host 1.1, 1x miniUSB Slave/OTG 2.0
- Audio Output: 3.5 mm stereo jack
- Audio Input: Condenser microphone
- Ethernet: RJ-45 10/100M (DM9000)
- RTC: Real Time Clock with battery
- Beeper: PWM buzzer
- Camera: 20 pin Camera interface (2.0 mm)
- TV Output: CVBS
- LCD Interface
- STN Displays
- TFT Displays
- 40 pin (2.0 mm) and 41 pin connector for FriendlyARM Displays (4.3" and 7")
- Touch Panel: 4 wire resistive
- User Inputs: 8x push buttons and 1x A/D pot
- User Outputs: 4x LEDs
- Expansion: 40 pin System Bus, 30 pin GPIO, 20 pin SDIO (SD, SPI, I2C), 10 pin Buttons (2.0 mm)
- Debug: 10 pin JTAG (2.0 mm)
- Power: regulated 5V (DC-Plug: 1.35mm inner x 3.5mm outer diameter)
- Power Consumption: Mini6410: 0.25 A, Mini6410 + 4.3" LCD: 0.5 A
OS Support
- Windows CE 6
- Linux 2.6
- Android
- Ubuntu

Packing List:
- Mini6410 Learning Development Board (256M DDR/1GB SLC NandFlash)
- power adapter (+5 V)
- DB9 serial cable
- crossover fiber
- USB cable
- 4.3-inch touch screen (with exquisite touch screen panel, presented the touch pen)
-  DVD disc developed * 2
- A beautiful box
