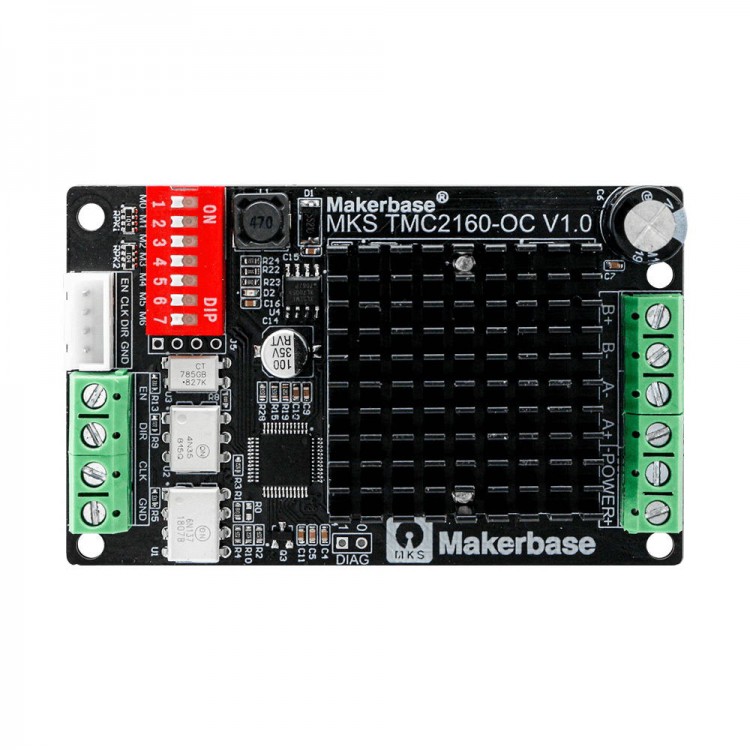

MKS TMC2160-OC Motor Driver Ultra-Quiet 3D Printer Drive Module Board 4.33A High Current Low Heat
Features:
-High current drive, maximum support 4.33A, ultra-quiet.
-Low heat and fast heat dissipation.
-Code setting subdivision, easy to operate, up to 64 subdivision.
-Optocoupler isolated signal, safe and reliable.
Current:

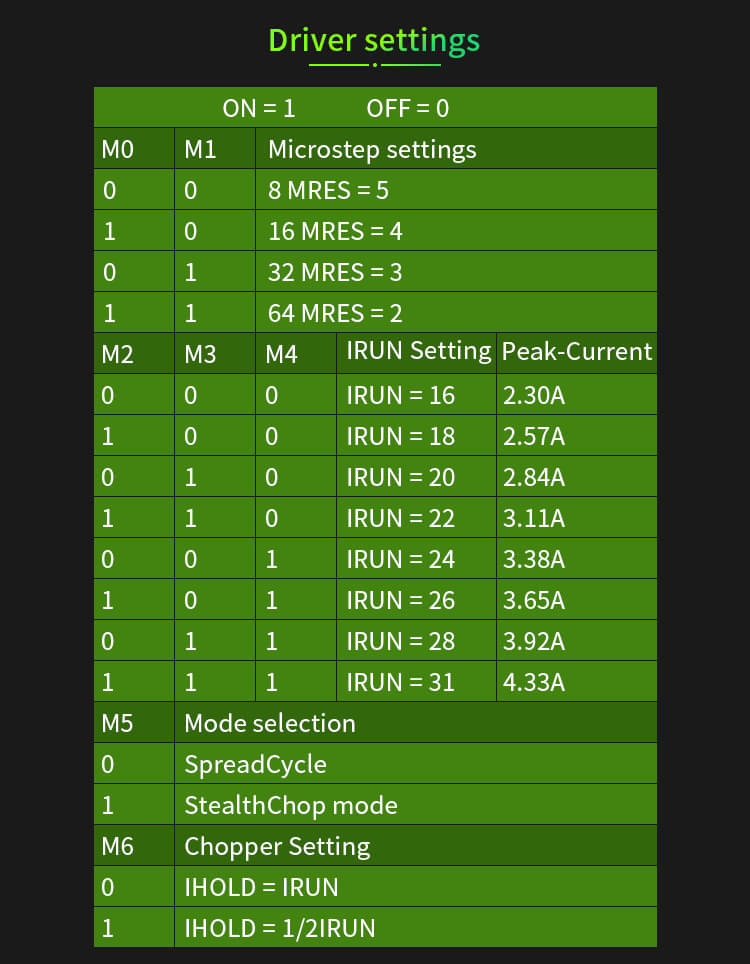

The highest peak current is 4.33A and the lowest peak current is 2.30A; the current can be set in 8 levels, which can be set by the DIP switch.The peak currents in 8 levels are: 2.30A, 2.57A, 2.84A, 3.11A, 3.38A, 3.65A, 3.92A, 4.33A.
Operating Mode:
The TMC2160 has 2 modes that can be set, namely SpreadCycle smooth mode and StealthChop mute mode, which are set by the DIP switch; the mute effect of the smooth mode is general, it is recommended to set to mute mode.
Hold Current Setting:
There are 2 settings for the holding current, which are equal to the setting current and half of the setting current, that is, IHOLD = IRUN, IHOLD = 1 / 2IRUN, set by the dip switch.
Package Included:
1 x Driver Board
