Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $26.39 | $25.85 | $25.04 | $23.97 | Contact US |

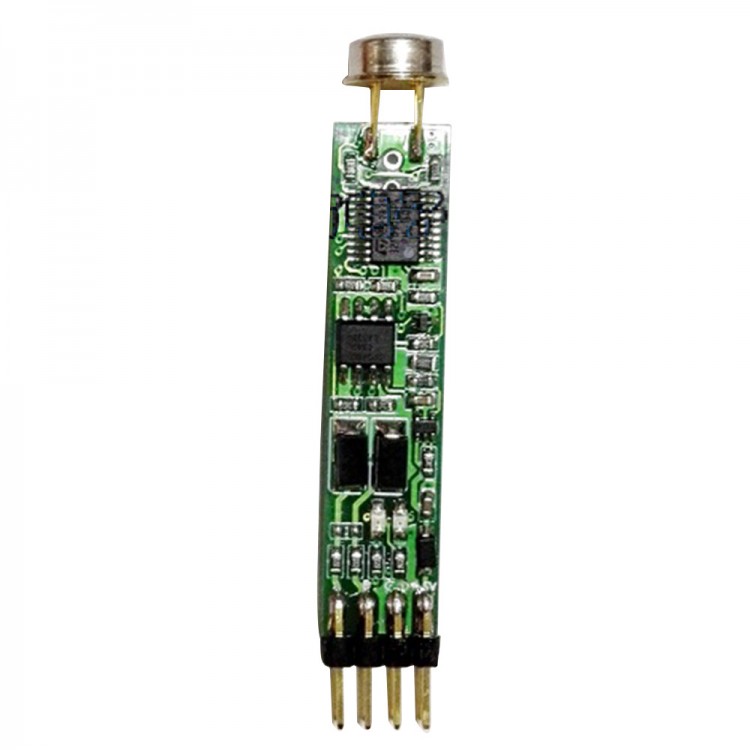

MLX90614 Contactless Infrared Thermometric Temperature Sensor Module Support RS485TTL MODBUS Version
Specification:
- Dimension: 68*10mm
- Voltage: 5V
- Current: 2mA
- Seriel port RS485 or TTL communication
- Sensor temperature range: -40~85 deg C
- Object temperature range: -70~+380 deg C
- Accuracy: -+0.5 deg C (when environment 0-50 deg C, target temperature 0-60 deg C)
- Accuracy: -+0.3 deg C (under the required temperature)
- Tolerance: 1-2 deg C (when over 60deg C)
- Focal ratio: 1:1.5 (the outtter diameter of heat source is 5cm, the farthest distance is 3cm)
- MODBUS: Temperature collection by computer or MODBUS protocol and PLC device
- Wireing: CIN is positive, A,B for RS485 output;GND is negative,TX is TTL-TX, RX is TTL-RX
Computer software download: Click here (password is 225b)
Package List:
- 1 x Temperature Sensor Module
