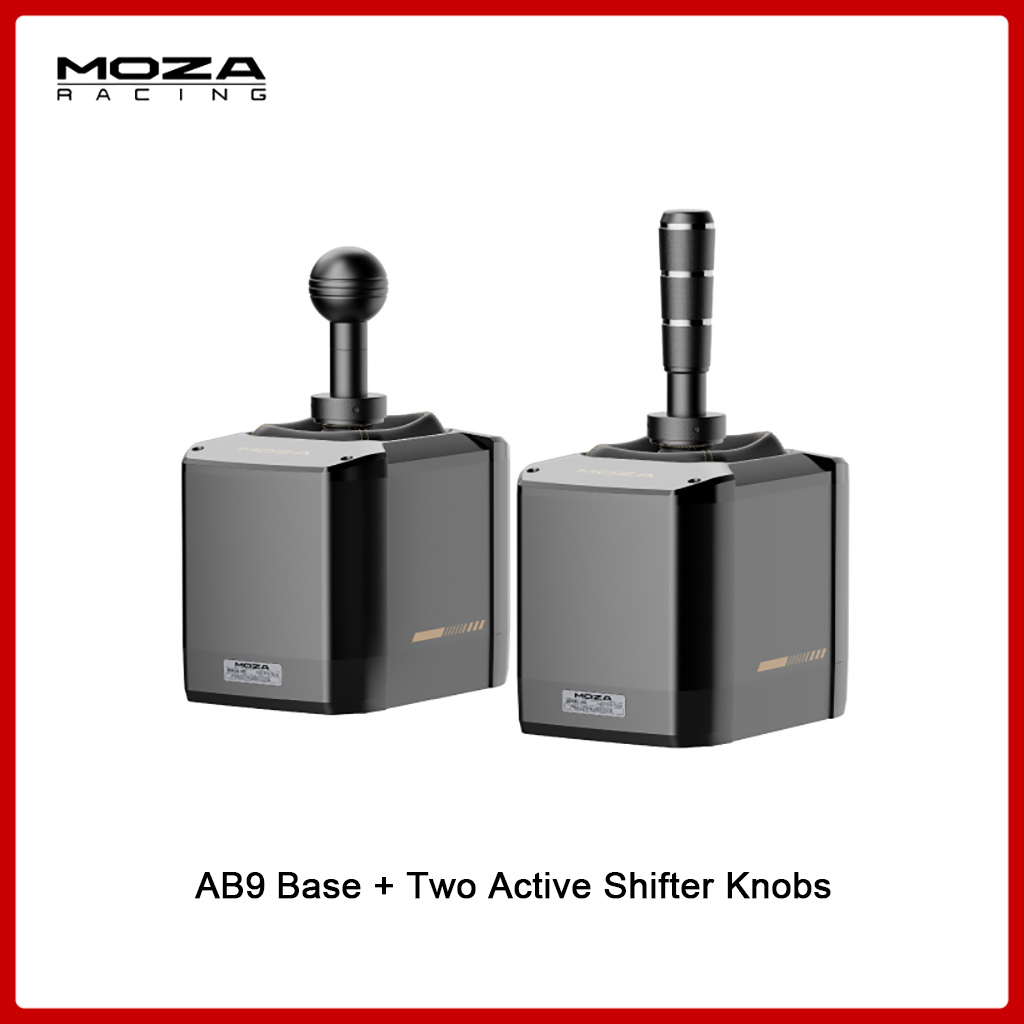

MOZA Active Shifter AB9 12Nm Force Feedback Base + Dual Active Shifter Knobs for Flight & Racing Sim

MOZA Active Shifter AB9 12Nm Force Feedback Base + Dual Active Shifter Knobs for Flight & Racing Sim

Features:
MOZA Self-Developed Active Shifter
* It features a dual servo motor force feedback system and active electronic gear shifting.

Powerful Torque for a Realistic Shifting Experience
* It delivers a continuous unidirectional torque of 9 Nm and a peak combined torque of 12 Nm.
* It is capable of simulating a variety of realistic shifting feedback effects, including gear engagement feel, jolt, vibration, and physical limit sensations.
* Note: The tactile feel of an active shifter differs in style from that of a mechanical shifter. Please choose based on personal preference.

Multiple Modes with One-Click Adaptation
* It supports various functions and gear mode presets such as H-pattern and sequential shifting.
Users can switch modes with one click via MOZA Pit House software.
* Attention: More customizable features will be added in future updates.

Multi-Dimensional Adjustment and Personalized Feel
* With MOZA Pit House software, users can customize gear-shifting resistance, damping, vibration, and more—tailoring a unique shifting experience.

Aluminum Alloy Shift Levers
* Both shift levers are made from aluminum alloy, offering a smooth and refined texture.
* The shift levers adopt a short-throw quick-shift design, delivering a high-quality sports driving experience.

Professional Quality with Modern Aesthetics
* The design is clean and robust, balancing modern appeal with professional-grade construction.
* Constructed using aluminum alloy and automotive-grade paintwork, it offers exceptional durability, mechanical performance, and thermal stability.

Precise Response
* Equipped with a high-performance 280 MHz control chip and a 15-bit high-resolution magnetic encoder, it provides fast and accurate response to both subtle inputs and aggressive maneuvers—greatly enhancing realism, immersion, and user satisfaction in simulation.

Compatibility
* With an open-ecosystem design philosophy, this unit functions as both a MOZA flight simulator base and a racing simulator active shifter.

Built to Last
* It has passed torsional and destructive testing of the internal frame, as well as durability testing of its electronic components.
* Tested to withstand over one million rigorous lab cycles without any structural or electronic failure, it ensures consistent, high-quality performance. (Based on MOZA laboratory durability tests.)

Product Specifications:

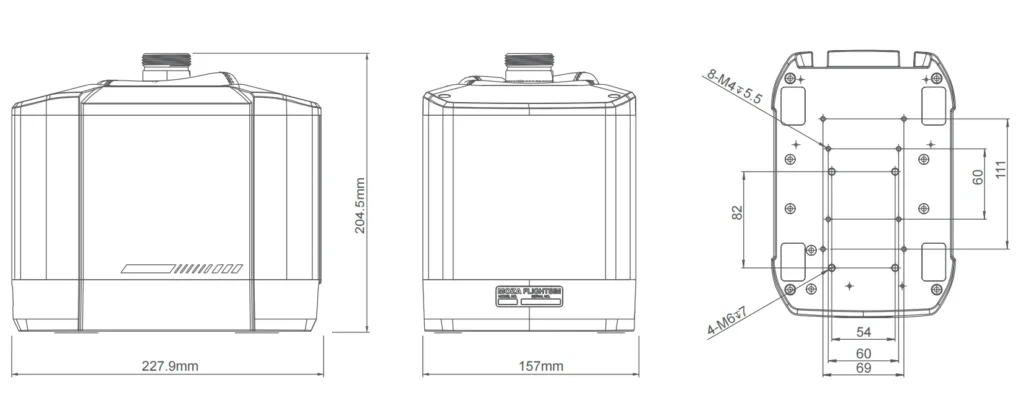

* Base Dimensions: 157 × 227.9 × 184 mm
* Shifter Knob Length: H-pattern – 100 mm, Sequential – 130 mm
* Shifter Knob Material: Aluminum alloy
* Base Material: Aluminum alloy
* Base Weight: 5.5 kg
* Motor: Dual high-performance servo motors
* Peak Combined Torque: 12 Nm
* Travel Range: ±20°
* Rated Power: 216 W
* Input Voltage: 110~220V AC → 36V DC
* Magnetic Encoder Resolution: 15-bit magnetic encoder
* USB Refresh Rate: 1000 Hz
* Mounting Options: Desk clamp (optional), mounting plate (optional), and direct mount
* Interfaces: Power, data, throttle, rudder pedals, control panel, etc.
* Emergency Stop Switch: Optional
* Intelligent Telemetry Force Feedback: Yes (No plugin required)
* Native Force Feedback: Yes
* Supported Platform: PC

Packing List:
* 1 x AB9 base
* 1 x H-pattern shifter knob
* 1 x Sequential shifter knob

Packaging Details:
* Weight: 8.43kg
