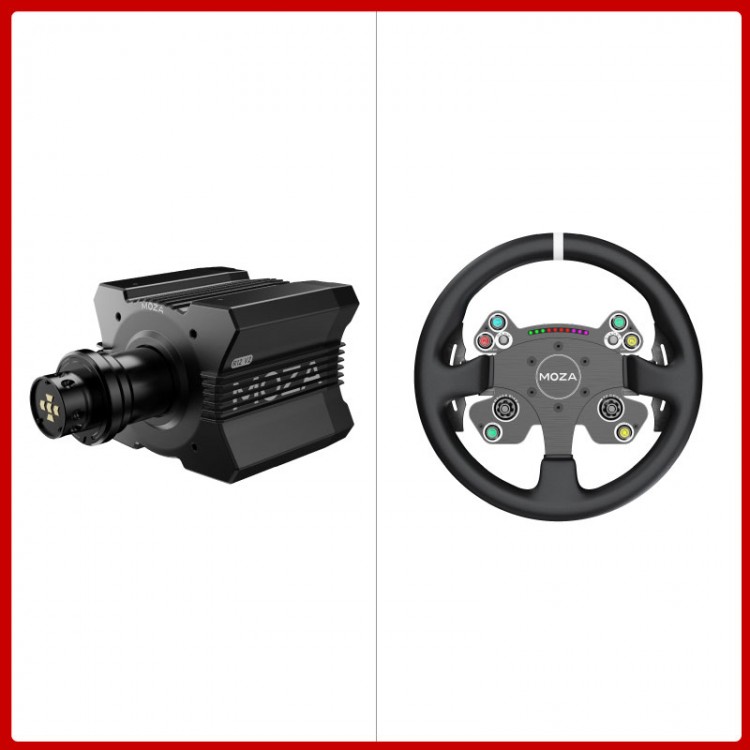

MOZA RACING R12 V2 12Nm Direct Drive Wheel Base Sim Racing Wheel Base + 13" CS V2P Steering Wheel

MOZA RACING R12 V2 12Nm Direct Drive Wheel Base Sim Racing Wheel Base + 13" CS V2P Steering Wheel

R12 V2 12Nm Direct Drive Wheel Base:
1. Features:
12Nm Constant Torque Carbon-Fiber Skewed-Pole Servo Motor
* It delivers a sustained and stable torque output of 12Nm, precisely replicating steering forces from everyday vehicles to race cars, and delicately conveying a wide range of driving details.

21-bit Magnetic Encoder with 280MHz High-Performance Chip
* The 21-bit magnetic encoder divides each rotation into 2,097,152 steps, providing ultra-smooth control feel.
* With angular resolution reaching 0.00017°, the system offers highly accurate response and realistic, detailed force feedback.

High-Performance Skewed-Pole Servo Motor Tailored for Precision Control in Simulated Racing Scenarios
* Skewed Pole Design and Quiet Operation: The non-uniform three-segment skewed pole design effectively reduces cogging torque, electromagnetic vibration, and noise.
* High Torque Density, Compact and Powerful: Featuring a high slot-fill ratio design and high-permeability iron core, combined with strong neodymium-iron-boron magnets, the motor achieves lower power consumption and higher output performance.
* Multi-Slot Multi-Pole and Ultra-Low Torque Ripple: With a design of up to 18 slots and 16 poles, the motor offers significantly reduced torque ripple and superior vibration damping, delivering a more refined and smooth steering feel.
* Wide High-Torque Speed Range: Thanks to its low back-EMF design, the motor maintains high torque even at high speeds, allowing quick directional corrections while avoiding torque dropout.

Carbon Fiber Rotor Technology
* High-performance automotive-grade motor rotor protection technology effectively reduces rotor eddy current loss and heat buildup, ensuring sustained high-performance output of the motor.

NexGen Force 4.0 Force Feedback System
* It delivers richer and more refined force feedback details.
* Curb and road surface bumps are perceived more clearly and vividly.
* Vehicle weight transfer and tire slip responses are quicker and more responsive.
* A brand-new cogging torque compensation algorithm makes steering feel smoother.
* The force feedback interpolation algorithm eliminates peaks and dips during force transitions, resulting in more natural and fluid feedback.
* Game force feedback decoupling breaks down game-supplied forces into independently adjustable components, offering greater personalization and fine-tuning.
* Innovative Road Surface Perception Equalizer — Scenario-Based Immersive Driving: Scenario-specific tuning of road texture vibrations retains helpful driving feedback while filtering out excess vibrations, delivering an extraordinary sense of driving immersion.
* Custom Force Feedback Curve — Confident, Professional Control: It allows for a non-linear relationship between wheel base output and in-game commands. It amplifies dynamic feedback that benefits driving while reducing distracting forces, helping drivers better sense loss of traction and push the limits with greater confidence and control.

Intelligent Motor Temperature Control System
* It monitors motor and electronic component temperatures in real time, ensuring stable performance even during endurance races.

High-Strength Aluminum Alloy Body
* Automotive-grade coating and laser etching deliver a premium metallic finish.

Professional Conductive Slip Ring — Stable and Durable
* It provides solid connection between the base and steering wheel, enabling high-speed rotation with a lifespan of up to 5 million revolutions (data from MOZA laboratory durability tests). It ensures stable performance and long-lasting reliability.

Mobile App & Cloud-Based Control
* Users can adjust the wheel base, steering wheel, pedals, and other devices without pausing or switching windows during a race. Core operations from the Pit House software can be controlled via smartphone or tablet.

MOZA Pit House – Professional Sim Racing Control Center
* MOZA's independently developed PC-based control center allows users to monitor the status of all devices within the MOZA ecosystem. Users can quickly adjust parameters and launch games without repetitive setup.
* Quick Tuning for the MOZA Ecosystem: Pit House enables function checks and personalized quick tuning for all MOZA devices. Users can launch games directly, apply one-click configurations, and access telemetry data. It offers a user-friendly interface and comprehensive functionality.
* Beginner-Friendly: It provides one-click scenario-based presets tailored to different racing car types and game titles, including official presets and exclusive setups from professional sim racers. Beginners can start racing immediately without a steep learning curve.
* 19 Force Feedback Tuning Parameters for a Custom Feel: It offers 19 adjustable parameters such as mechanical friction and road feel sensitivity. The open tuning platform allows players to create their ideal steering feel while learning about tuning and improving their skill level.
* Proprietary Road Surface Perception Equalizer: It enables precise, scenario-based adjustment of road texture vibration. It retains helpful feedback while filtering out excess vibrations, delivering an extraordinary immersive driving experience.
* Proprietary Force Feedback Curve Adjustment: It allows the base's force output to follow a non-linear relationship with in-game commands. It amplifies dynamic feedback beneficial to driving, dampens distracting forces, and helps the driver better detect vehicle instability—enhancing control near the limits.
* Detailed Steering Wheel Control: Through MOZA Pit House, users can finely tune settings such as dual-clutch paddles, knobs, joysticks, and shift indicator lights, significantly improving steering wheel handling.
* Precision Pedal Adjustment: On the pedal setup page, users can finely adjust throttle, brake, and clutch travel, output curves, and pressure response points. This helps players quickly develop proper braking techniques and effectively improve lap times.

Integrated Design Saves Space
* The all-in-one motor is compact and portable.
* It supports installation on professional racing cockpits, integrated stands, and desktop clamp mounts, offering a wide range of mounting options.
* Note: Desktop clamp installation requires an additional clamp (sold separately).

Hands-Off Protection for Enhanced Safety
* When the vehicle loses control and the steering wheel begins to oscillate, the system detects whether hands are off the steering wheel. If so, the steering wheel will automatically stop oscillating and stabilize near the center (zero) position. This helps effectively prevent injury and allows the driver to quickly regain control.

2. Supported Games for PC:
* Assetto Corsa
* Assetto Corsa Competizione
* Forza Horizon 4 (This game is currently not compatible with Steam)
* Forza Horizon 5 (Win 10)
* Euro Truck Simulator 2
* American Truck Simulator
* RaceRoom Racing Excperience
* F1 2018
* F1 2019
* F1 2020
* F1 2021
* F1 22
* F1 23
* rFactor 2
* Project CARS 1
* Project CARS 2
* Project CARS 3
* WRC G
* WRC 9
* WRC 10
* Dirt Rally
* Dirt Rally 2.0
* Dirt 4
* iRacing
* Wreckfest
* KartKarft
* Richard Burns Rally
* Live For Speed
* BeamNG.Drive
* MudRunner
* CarX Drift Racing Online
* Automobilista 2

3. Specifications:
* Drive Type: Direct Drive
* Max Wheel Rotation: 90-2700°
* Housing Material: Aluminum Alloy
* Housing Color: Black
* Peak Torque: 12 Nm
* Peak Power: 216W
* Input Voltage: 110V~220V AC —>36V DC
* Encoder Resolution: 21-Bit Magnetic Encoder with 280MHz High-Performance Processor
* USB Refresh Rate: 1000 Hz
* App Functions: Supported
* Quick Release: Supported
* Connection Ports: Power, USB, Pedal, Dash, Shifter, Handbrake, E-stop
* Box Contents: R12 Wheel Base, User Manual, Power Supply, USB Cable, Tool Kit
* Fixing Method: 4-hole bottom mount
* Desk Clamp: Optional
* E-stop: Optional
* Online Firmware Update: Supported
* Dimensions: 225.87 x 156.68 x 123.99 mm

CS V2P Steering Wheel:
1. Features:
* 13-Inch Standard Racing Rim: With a true-to-life size matching that of a real racing car, the CS V2P delivers an immersive and realistic sim racing experience.
* Aviation-Grade Aluminum Alloy Frame: Constructed with aviation-grade aluminum alloy for the rim, operation board, and base plate, the wheel boasts exceptional quality, strength, and rigidity.
* Customized Quick Release: MOZA's customized quick-release system, inspired by real racing technology, allows drivers to swap wheels within seconds while maintaining a secure and stable connection.
* Forged Carbon Fiber Magnetic Shifter: The magnetic shifters feature a solid, responsive feel and a premium forged carbon fiber design. Utilizing contactless photoelectric technology, the paddles offer exceptional stability and ensure precise shifting every time.
* RGB Sequential Shift Light Indicator: The CS V2P features 10 RGB LED sequential shift lights with 7 adjustable colors, allowing racers to customize the rev-speed lighting.
* Programmable Mechanical Key Buttons: It features 6 programmable mechanical buttons with tactile feedback.
* Two Pressable Universal Joysticks: They can simulate 10 buttons and 2 sets of D-pads, effectively expanding the functionality of the steering wheel to meet the complex control needs of most competitive racing games.
* MOZA Invisible Wireless Connection Technology: MOZA's 2.4G wireless signal technology provides seamless, cable-free racing. Tested over thousands of hours, it offers superior stability and longer service life compared to traditional wired connections.

2. Specifications:
* Grips: Microfiber Leather
* Face Plate Material: Aluminum Alloy
* Back Plate Material: Aluminum Alloy
* Shifter Material: Forged Carbon Fiber
* Size: 13 Inches
* Magnetic Shifters: 2
* Mechanical Key Buttons: 6
* Joysticks: 2
* Rotary Encoders: 2
* LED RGB Light Beads: 10
* Choice of Colors: 7
* Intelligent Telemetry: Yes
* Fully Adjustable RPM LEDs through MOZA Pit House: Supported
* Release Method: MOZA Quick Release
* Communication Method: Wireless
* Shifter Sensor: Non-contact Photoelectric Sensor

Packing List:
* 1 x Set of wheel base + steering wheel

Packaging Details:
* Weight: 10.9kg
