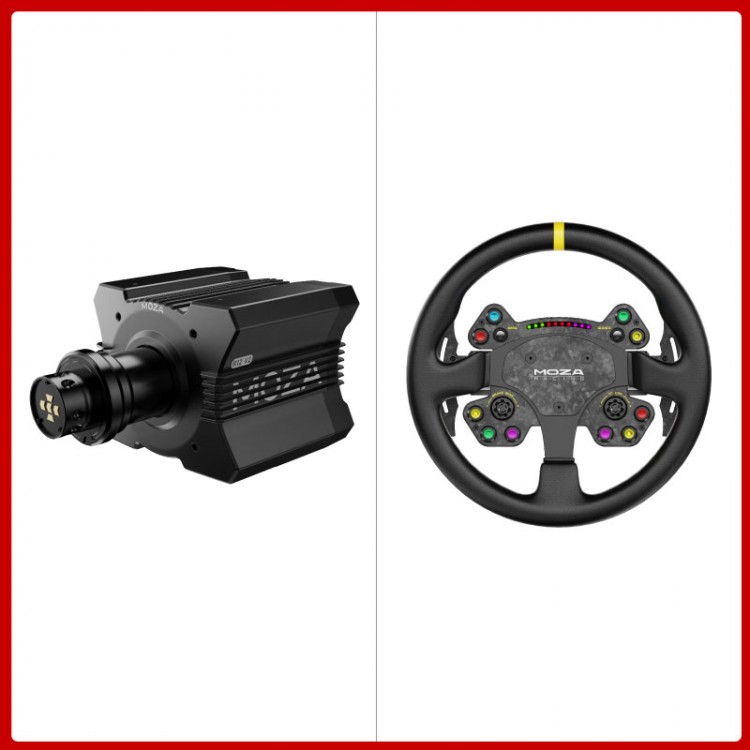

MOZA R12 V2 12Nm Direct Drive Wheel Base Sim Racing Wheel Base + 13-Inch RS V2 Steering Wheel

MOZA R12 V2 12Nm Direct Drive Wheel Base Sim Racing Wheel Base + 13-Inch RS V2 Steering Wheel

R12 V2 12Nm Direct Drive Wheel Base:
Features:
12Nm Constant Torque Carbon-Fiber Skewed-Pole Servo Motor
* It delivers a sustained and stable torque output of 12Nm, precisely replicating steering forces from everyday vehicles to race cars, and delicately conveying a wide range of driving details.

21-bit Magnetic Encoder with 280MHz High-Performance Chip
* The 21-bit magnetic encoder divides each rotation into 2,097,152 steps, providing ultra-smooth control feel.
* With angular resolution reaching 0.00017°, the system offers highly accurate response and realistic, detailed force feedback.

High-Performance Skewed-Pole Servo Motor Tailored for Precision Control in Simulated Racing Scenarios
* Skewed Pole Design and Quiet Operation: The non-uniform three-segment skewed pole design effectively reduces cogging torque, electromagnetic vibration, and noise.
* High Torque Density, Compact and Powerful: Featuring a high slot-fill ratio design and high-permeability iron core, combined with strong neodymium-iron-boron magnets, the motor achieves lower power consumption and higher output performance.
* Multi-Slot Multi-Pole and Ultra-Low Torque Ripple: With a design of up to 18 slots and 16 poles, the motor offers significantly reduced torque ripple and superior vibration damping, delivering a more refined and smooth steering feel.
* Wide High-Torque Speed Range: Thanks to its low back-EMF design, the motor maintains high torque even at high speeds, allowing quick directional corrections while avoiding torque dropout.

Carbon Fiber Rotor Technology
* High-performance automotive-grade motor rotor protection technology effectively reduces rotor eddy current loss and heat buildup, ensuring sustained high-performance output of the motor.

NexGen Force 4.0 Force Feedback System
* It delivers richer and more refined force feedback details.
* Curb and road surface bumps are perceived more clearly and vividly.
* Vehicle weight transfer and tire slip responses are quicker and more responsive.
* A brand-new cogging torque compensation algorithm makes steering feel smoother.
* The force feedback interpolation algorithm eliminates peaks and dips during force transitions, resulting in more natural and fluid feedback.
* Game force feedback decoupling breaks down game-supplied forces into independently adjustable components, offering greater personalization and fine-tuning.
* Innovative Road Surface Perception Equalizer — Scenario-Based Immersive Driving: Scenario-specific tuning of road texture vibrations retains helpful driving feedback while filtering out excess vibrations, delivering an extraordinary sense of driving immersion.
* Custom Force Feedback Curve — Confident, Professional Control: It allows for a non-linear relationship between wheel base output and in-game commands. It amplifies dynamic feedback that benefits driving while reducing distracting forces, helping drivers better sense loss of traction and push the limits with greater confidence and control.

Intelligent Motor Temperature Control System
* It monitors motor and electronic component temperatures in real time, ensuring stable performance even during endurance races.

High-Strength Aluminum Alloy Body
* Automotive-grade coating and laser etching deliver a premium metallic finish.

Professional Conductive Slip Ring — Stable and Durable
* It provides solid connection between the base and steering wheel, enabling high-speed rotation with a lifespan of up to 5 million revolutions (data from MOZA laboratory durability tests). It ensures stable performance and long-lasting reliability.

Mobile App & Cloud-Based Control
* Users can adjust the wheel base, steering wheel, pedals, and other devices without pausing or switching windows during a race. Core operations from the Pit House software can be controlled via smartphone or tablet.

MOZA Pit House – Professional Sim Racing Control Center
* MOZA's independently developed PC-based control center allows users to monitor the status of all devices within the MOZA ecosystem. Users can quickly adjust parameters and launch games without repetitive setup.
* Quick Tuning for the MOZA Ecosystem: Pit House enables function checks and personalized quick tuning for all MOZA devices. Users can launch games directly, apply one-click configurations, and access telemetry data. It offers a user-friendly interface and comprehensive functionality.
* Beginner-Friendly: It provides one-click scenario-based presets tailored to different racing car types and game titles, including official presets and exclusive setups from professional sim racers. Beginners can start racing immediately without a steep learning curve.
* 19 Force Feedback Tuning Parameters for a Custom Feel: It offers 19 adjustable parameters such as mechanical friction and road feel sensitivity. The open tuning platform allows players to create their ideal steering feel while learning about tuning and improving their skill level.
* Proprietary Road Surface Perception Equalizer: It enables precise, scenario-based adjustment of road texture vibration. It retains helpful feedback while filtering out excess vibrations, delivering an extraordinary immersive driving experience.
* Proprietary Force Feedback Curve Adjustment: It allows the base's force output to follow a non-linear relationship with in-game commands. It amplifies dynamic feedback beneficial to driving, dampens distracting forces, and helps the driver better detect vehicle instability—enhancing control near the limits.
* Detailed Steering Wheel Control: Through MOZA Pit House, users can finely tune settings such as dual-clutch paddles, knobs, joysticks, and shift indicator lights, significantly improving steering wheel handling.
* Precision Pedal Adjustment: On the pedal setup page, users can finely adjust throttle, brake, and clutch travel, output curves, and pressure response points. This helps players quickly develop proper braking techniques and effectively improve lap times.

Integrated Design Saves Space
* The all-in-one motor is compact and portable.
* It supports installation on professional racing cockpits, integrated stands, and desktop clamp mounts, offering a wide range of mounting options.
* Note: Desktop clamp installation requires an additional clamp (sold separately).

Hands-Off Protection for Enhanced Safety
* When the vehicle loses control and the steering wheel begins to oscillate, the system detects whether hands are off the steering wheel. If so, the steering wheel will automatically stop oscillating and stabilize near the center (zero) position. This helps effectively prevent injury and allows the driver to quickly regain control.

Supported Games for PC:
* Assetto Corsa
* Assetto Corsa Competizione
* Forza Horizon 4 (This game is currently not compatible with Steam)
* Forza Horizon 5 (Win 10)
* Euro Truck Simulator 2
* American Truck Simulator
* RaceRoom Racing Excperience
* F1 2018
* F1 2019
* F1 2020
* F1 2021
* F1 22
* F1 23
* rFactor 2
* Project CARS 1
* Project CARS 2
* Project CARS 3
* WRC G
* WRC 9
* WRC 10
* Dirt Rally
* Dirt Rally 2.0
* Dirt 4
* iRacing
* Wreckfest
* KartKarft
* Richard Burns Rally
* Live For Speed
* BeamNG.Drive
* MudRunner
* CarX Drift Racing Online
* Automobilista 2

Specifications:
* Drive Type: Direct Drive
* Max Wheel Rotation: 90-2700°
* Housing Material: Aluminum Alloy
* Housing Color: Black
* Peak Torque: 12 Nm
* Peak Power: 216W
* Input Voltage: 110V~220V AC —>36V DC
* Encoder Resolution: 21-Bit Magnetic Encoder with 280MHz High-Performance Processor
* USB Refresh Rate: 1000 Hz
* App Functions: Supported
* Quick Release: Supported
* Connection Ports: Power, USB, Pedal, Dash, Shifter, Handbrake, E-stop
* Box Contents: R12 Wheel Base, User Manual, Power Supply, USB Cable, Tool Kit
* Fixing Method: 4-hole bottom mount
* Desk Clamp: Optional
* E-stop: Optional
* Online Firmware Update: Supported
* Dimensions: 225.87 x 156.68 x 123.99 mm

RS V2 Steering Wheel:
Features:
* Leather Grips: Crafted from carefully selected genuine leather with exquisite stitching, the RS grips deliver a premium feel along with superior durability and comfort.
* 13-Inch Standard Racing Rim: With dimensions matching a real racing wheel, the 13-inch rim offers a versatile and immersive sim racing experience that closely replicates real-world driving.
* Forged Carbon Fiber Base Plate & Magnetic Shifter Paddles: Manufactured using forged carbon fiber, the same material found in high-end hypercars, the base plate and paddles combine strength with a sleek, modern look. The RS V2 features programmable mechanical buttons with a satisfying tactile feel, customizable RGB backlighting in 8 colors, dual universal joysticks, and 20-segment rotary dials—giving racers complete control at their fingertips.
* Customized Quick Release: MOZA's industry-leading quick-release system, inspired by real-world motorsport technology, allows racers to swap wheels quickly and securely, ensuring a stable and reliable connection every time.
* RGB Sequential RPM / Shift Light Indicator: The RS V2 includes a sequential-flow RGB shift light system with 10 customizable LEDs. Choose from 7 colors to create a visual experience that matches your racing style.
* Wireless & Wired Communication Support: Compatible with all MOZA wheel bases, the RS V2 uses wireless technology for the R21, R16, and R9 bases, and wired slip-ring communication for the R5 base—ensuring broad compatibility across the MOZA ecosystem.
* Dual-Clutch System with Magnetic Shifters: Equipped with magnetic shift paddles, the RS V2 also features a dual-clutch system that can be toggled between single and dual-clutch modes—ideal for advanced sim titles like iRacing and the F1 series.
* Ergonomic Layout: Inspired by actual race car design, the RS V2 boasts an ergonomic layout with intuitive positioning, giving drivers quick, easy access to essential controls—optimizing performance and responsiveness during competitive races.

Specifications:
* Size: 13 Inches
* Grips: Genuine Leather
* Face Plate Material: Forged Carbon Fiber
* Back Plate Material: Aluminium
* Shifter Paddles Material: Forged Carbon Fiber
* Shifter Paddles: Magnetic
* Buttons: 10
* Button Light: Yes
* Choice of Colors: 8
* Button Type: Mechanical Buttons
* Universal Joysticks: 2
* Rotary Encoders: 2
* MOZA Pit House Control: Support
* Release Method: MOZA Quick Release
* Quick Release Material: Aluminium
* Shift Light Indicator: Yes
* Shift Light Customization: Yes
* Shift Light Color Options: 7
* Shift Light Mode Switch: Yes
* RPM Indicator: Yes

Packing List:
* 1 x Set of wheel base + steering wheel

Packaging Details:
* Weight: 11.1kg
