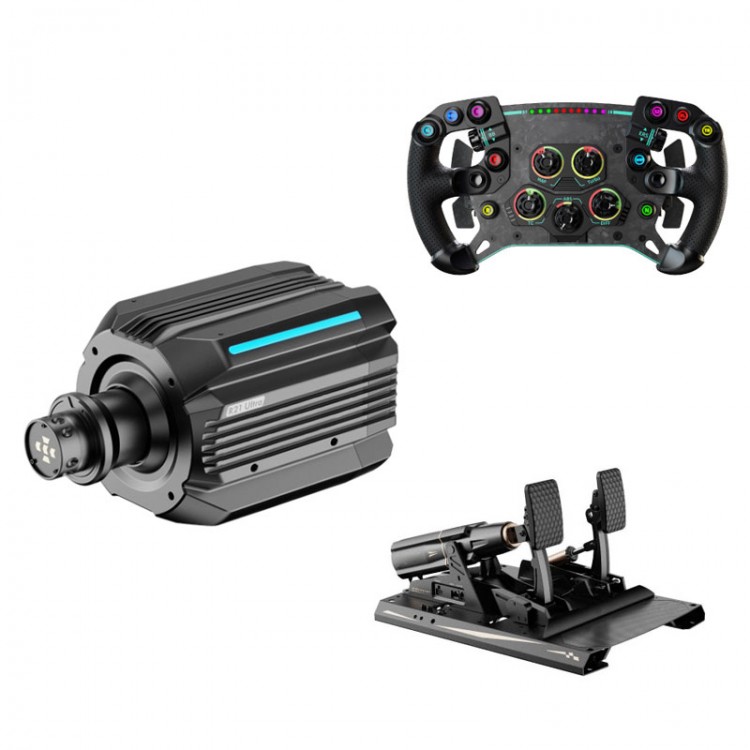

MOZA R21 Ultra 21NM DD Wheel Base + 11.8" GS V2P GT Wheel + mBooster Active Pedal Set (2-Pedal)

MOZA R21 Ultra 21NM DD Wheel Base + 11.8" GS V2P GT Wheel + mBooster Active Pedal Set (2-Pedal)

R21 Ultra 21NM DD Wheel Base:
1. Features:
MOZA R21 Ultra Flagship Direct Drive Base
* Breaking boundaries, pure driving experience

Advantages
* 21Nm Constant Torque
* Integrated Die-Casting Aluminum-Alloy Body
* 2.09 Million High-Resolution Encoder
* High Torque Density Flat-Wire Motor
* Ultra-Low Cogging Torque
* 600MHz High-Performance CPU
* 16.7 Million Colors Base Ambient Lighting
* APP Cloud Control

Self-Developed Flagship Flat-Wire Motor with Ultra-Low Cogging Torque
* MOZA's self-developed ultra-high torque density flat-wire motor delivers 26% higher torque output compared to bases of the same weight. The ultra-low cogging torque authentically restores the smooth steering wheel handling feel.
* Data sourced from MOZA Laboratory

21N·m Flagship Torque Performance with Redundant Design
* The powerful motor performance reserve ensures a sustained and stable output of 21N·m of strong torque.
* It delicately transmits various driving details, meeting the demands of professional-level driving.

21-bit High-Resolution Magnetic Encoder & 600MHz High-Performance Control Chip
* 2.09 million-level detailed force feedback
* Angle recognition accuracy up to 0.00017°
* Enabling precise analysis and fine control of force feedback details
* Restoring a true-to-life driving experience
* The 21-bit magnetic encoder divides each rotation cycle into 2,097,152 segments, offering a more delicate handling feel.

Family Design Evolution
* The compact, three-dimensional body design exudes a fierce, racing-inspired aesthetic. Two 16.7 million-color RGB light strips support rich, personalized customization.
* Supports custom colors and various lighting effects; multiple preset light signals available: Display different light signals such as ABS, TC, shift indicators, and flag signals, based on game status.

NexGen Force Ul Custom Force Feedback Algorithm
* Optimized force feedback algorithm and enhanced experience for rally-style racing
* We have collaborated with dozens of professional drivers worldwide to fine-tune and specifically optimize the force feedback algorithm for circuit racing, fully unleashing the powerful hardware performance.

iRacing Deep Integration
* Supports iRacing 360Hz high-frequency force feedback and Wheel LFE, providing more detailed force feedback and a more refined handling feel.

Force Feedback Interpolation Algorithm
* Eliminates peaks and valleys during force feedback transitions, making the force feedback smoother and more natural, with more detailed road feel.

Game Force Feedback Decoupling
* Breaks down the force feedback sent by the game into multiple individually adjustable forces.
* Supports decoupled adjustments for forces such as spring force, damping force and friction force, allowing detailed, professional force feedback tuning without affecting other game feedback effects (e.g., vibrations). This fully meets the need for more precise and specialized force feedback adjustments.

Self-Developed Force Feedback Curve Adjustment
* Allows the base's force feedback output to have a nonlinear relationship with game commands, amplifying dynamic feedback that aids driving and reducing disruptive forces.
* Provides multiple force feedback curves
* Supports custom adjustments, adapting to more use scenarios.

Innovative Road Feel Perception Equalizer for Scene-Based Immersive Driving
* Scene-based fine-tuning of road vibrations preserves the most helpful details for the driver while filtering out unnecessary vibrations, delivering an extraordinary immersive driving experience.

Intelligent Temperature Control - Fully Upgraded
* The flagship motor's powerful performance reserve ensures low heat loss and temperature rise during prolonged high-torque output.
* Temperature control algorithm upgrade, combined with intelligent torque control strategy, ensures stable operation even under long-duration, high-load conditions.

Multi-Position Mounting Options
* Supports bottom, front, and side mounting, accommodating various use and installation scenarios.

High-Strength Aluminum Alloy Body
* Integrated die-cast aluminum alloy body
* Lightweight, high-strength, and resistant to high-load usage scenarios.

Professional Conductive Slip Ring - Stable and Durable
* Over 10 million cycles of lifespan testing
* 2M/S high data transmission rate
* Stable performance, durable, and reliable
* Data sourced from MOZA Laboratory

Rich Ecosystem Interfaces
* MOZA ecosystem components such as pedals, dashboards, shifters, handbrakes, and emergency stop switches are available for direct connection to the base, reducing the need for USB ports on the PC.

Hands-Off Protection for Enhanced Safety
* When the vehicle loses control and the steering wheel shakes left and right, and it detects that the hands are not gripping the wheel, the steering wheel will automatically stop shaking and stabilize around the 0-point position. This effectively prevents injury and helps quickly restore control.

Seamless Play for Popular Games
* Currently compatible with dozens of popular simulation racing games, including the Horizon series, Project Cars series, DiRT Rally series, Assetto Corsa series, and F1 series.

2. Partial List of Game Compatibility:
* iRacing
* Le Mans Ultimate
* Assetto Corsa
* Assetto Corsa: Arena
* Dirt Rally
* Dirt Rally 2.0
* Dirt 4
* F1 2018
* F1 2019
* F1 2020
* F1 2021
* F1 22
* F1 23
* F1 24
* F1 25
* Forza Motorsport
* Forza Horizon 4 (Edition for Microsoft Store)
* Forza Horizon 5
* Project Cars 1
* Project Cars 2
* Project Cars 3
* Wreckfest
* KartKraft
* RaceRoom Racing Experience
* BeamNG.Drive
* MudRunner
* EA SPORTS™ WRC
* WRC 9
* WRC 10
* WRC G
* Richard Burns Rally
* Automobilista
* Automobilista 2
* Live For Speed
* rFactor 2
* Euro Truck Simulator 2
* American Truck Simulator
* American Truck Simulator 2

3. Product Parameters:
* Dimensions: 249mm x 140mm x 135mm
* Enclosure Material: Aluminum Alloy
* Coupling Material: Aluminum Alloy
* Encoder Resolution: 2,097,152 PPR
* Maximum Torque: 21Nm
* RGB Light Strips: 2 strips (16.7 million colors)
* APP Functionality: Supported
* Quick Release: Supported
* Interfaces: Power, PC, Pedals, Display, Shifter, Handbrake, Emergency Stop Switch
* Mounting Options: Bottom, Front, Side
* Supported Platforms: For PC, Xbox (requires pairing with ESX steering wheel)

GS V2P GT Wheel:
1. Features:
* 300mm/11.8" GT Wheel Built for E-Sports: The GS V2P is MOZA's e-sports-ready GT-style racing wheel — a fully featured 300mm sim wheel designed for maximum immersion with zero compromises.
* Perforated Microfiber Leather: The MOZA GS V2P features perforated microfiber leather, offering a premium feel and a refined touch compared to traditional rubber grips.
* Forged Carbon Fiber Frame and Paddles: Crafted from 5mm high-strength forged carbon fiber, the GS V2P's frame and paddles deliver a solid, weighty feel and dependable durability.
* Dual Clutch System with Magnetic Shifters: The magnetic carbon fiber paddles provide a satisfying mechanical response with every shift. The lower clutch paddles support both single and dual-clutch modes — ideal for professional sim racing platforms like iRacing and the F1 series.
* All-Aluminum Quick Release: Inspired by real racing wheels and precisely CNC-machined, the lightweight quick-release mechanism of the GS V2P offers industry-leading performance. Adhering to rigorous racing safety standards, it's been thoroughly tested for durability and reliability.
* 10 Programmable Backlit Mechanical Keys: Equipped with 10 programmable mechanical buttons, the GS V2P delivers tactile feedback with each press. Customize the button colors using the MOZA Pit House App, choosing from 8 vibrant color options.
* 8-Color RPM LED Lights: The wheel includes 10 high-brightness, 8-color RPM LEDs, allowing for full customization — with over 100 million color combinations. You can also adjust the RPM indicator's switch mode and timing for a tailored racing experience.
* Optimized, Ergonomic Design: The GS V2P offers a firm yet comfortable grip that mimics a real GT wheel. Even under the force of MOZA's powerful R21 base, drivers can make swift adjustments mid-race thanks to strategically placed joysticks, buttons, and switches. Make real-time car adjustments with ease using the thumb knobs and band switches — perfect for tuning brake bias, traction control, engine maps, ABS, and more. Two integrated joysticks also enable full menu navigation, so your hands never need to leave the wheel. There are two thumb knobs, five band knobs and two universal joysticks.

2. Specifications:
* Grips: Perforated Microfiber Leather
* Wheel Rim & Face Plate Material: 5mm-thick Forged Carbon Fiber
* Back Plate Material: Carbon Fiber Reinforced Composite
* Shifter Paddle Material: 3mm-thick Forged Carbon Fiber
* Size: 300mm/11.8" Diameter Standard Racing Wheel
* Magnetic Shifter Paddles: 2
* Clutch Paddles: 2
* Luminous Mechanical Buttons: 10
* Rotary Encoders: 5
* Thumb Encoders (depressible): 2
* Joysticks: 2
* LED Lamp Beads RGB: 10
* Choice of Colors: 8
* Intelligent Telemetry: Yes
* Fully Adjustable RPM LEDs through MOZA Pit House: Supported
* Release Method: All-aluminum MOZA quick release
* Paddle Sensor: Non-contact Hall Sensor
* Dual Clutch Modes: Combined Axis/Independent Axis/Button

mBooster Active Pedal Set (2-Pedal):
1. Features:
Innovative Design
* After years of innovation, MOZA has engineered a revolutionary structure with an advanced electronic control system. This breakthrough marks a new era in sim racing with our active pedal, delivering unmatched precision and authentic driving experience.

Professional Software Support
* MOZA Pit House software offers one-click presets, enabling professional precision settings quickly without the need to adjust mechanical structures. Effortlessly fine-tune basic pedal performance and advanced dynamic feedback for a seamless racing experience.
* Adjustable rebound, stroke, damping & friction
* ABS
* TC
* Engine vibration
* Vehicle body vibration (HI)
* Gear shift impact
* G-force

Realistic Dynamic Force Feedback
* MOZA's proprietary telemetry database enhances force feedback realism, delivering precise ABS feedback during braking, dynamic throttle feedback for traction control, vehicle vibrations, gearshift impacts, and G-force effects for a truly immersive driving experience.

Quiet and Smooth
* The MOZA mBooster Active Pedal features a high-precision ball screw, segmented servo motor, and a closed, rail-free design to effectively reduce operational friction. This results in a quiet and smooth experience, with noise levels as low as 44dB.

Dual 200KG Load Cell Sensors for Precise Control & Wider Range
* The MOZA mBooster Active Pedal is equipped with dual 200KG load cell sensors, ensuring ultra-precise pedal force detection with zero dead zones. This advanced technology delivers consistent, responsive braking for superior control and confidence on the track.

15-Bit High-Precision Angle Sensors
* The innovative sensor fusion algorithm combines 15-bit angle sensors with dual pressure sensors to ensure high-precision braking input and accurate brake force output.

21-bit High-resolution Magnetic Encoder
* Engineered with a high resolution of 2,097,152 PPR, this advanced encoder refines motor control, delivering incredibly smooth and detailed force feedback for an immersive racing experience.

High Performance with Compact Design
* High torque density motor and lightweight materials result in smaller installation size and more convenient operation.

Enhanced Pedal Feel
* Different from traditional pedals with passive feedback, the innovative active force feedback system, composed of motors and ball screws, provides strong limit force and rebound. It can simulate a wide range of pedal feel, from a road car's throttle to an F1 car's brake.

One-Click Pedal Customization
* Effortlessly customize the feel of your MOZA mBooster Active Pedal with just one click. It can be used as a throttle, brake, or clutch, ensuring a driving experience tailored to your preferences. Additionally, the mBooster is seamlessly compatible with the CRP2 pedals, offering versatile and enhanced performance.

Ergonomic Design
* The pedal surface features a biomimetic curved design that conforms to the arch of the foot, providing a snug fit for better force application and overall comfort.

Full Compatibility
* Directly connect to PC and compatible with almost all branded bases, fully supporting MOZA's wheelbase lineup.

Durable and Reliable
* The mBooster system has undergone millions of simulated pedal tests, ensuring stable performance.

Packing List:
* 1 × Wheel Base
* 1 × Racing Wheel
* 1 × mBooster Active Pedal Set

Packaging Details:
* Weight: 18.6kg
