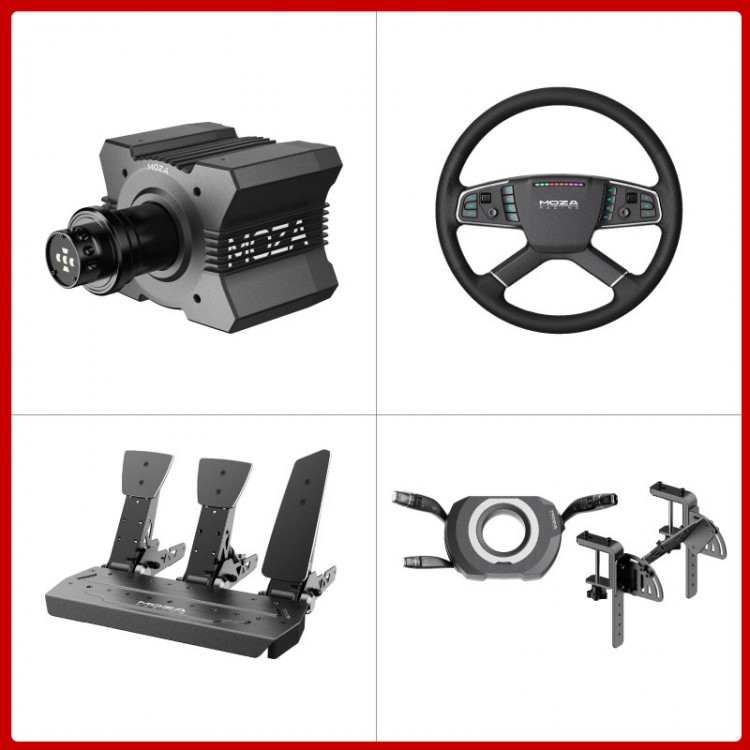

MOZA R9 V2 9Nm Wheel Base + 15.8" TSW Truck Wheel + 3-Pedal SR-P + Wiper Turn Signal Kit + Table Clamp

MOZA R9 V2 9Nm Wheel Base + 15.8" TSW Truck Wheel + 3-Pedal SR-P + Wiper Turn Signal Kit + Table Clamp

R9 V2 9Nm DD Wheel Base:
1. Differences between the R9 V2 and R9 V3 Wheel Bases:
* The R9 V3 supports iRacing's 360Hz mode and features a 21-bit magnetic encoder with a resolution of up to 2.09 million counts.

2. Description:
The MOZA R9 V2 is the wheel base for racers who take their performance seriously. This cutting-edge device delivers 9 Nm of torque from a direct-drive servo motor, ensuring exceptional precision and responsiveness. Crafted from aviation-grade aluminum alloy, it offers maximum torque with minimal weight. With wireless power and communication, and simple assembly, it's built for convenience. Take full control with the MOZA Pit House Control Center and enjoy seamless operation via the app-based Cloud Control.

3. Specifications:
* Platform: PC
* FFB Drive System: Direct Drive
* Max Wheel Rotation: Limitless
* Housing Material: Aviation Grade Aluminum Alloy
* Color: Black
* Peak Torque: 9 Nm
* Peak Power: 180W
* Input Voltage: 110V~220V AC —>36V DC
* USB Refresh Rate: 1000Hz
* Wheel Base Indicator Light: Supported
* App Functionality: Supported
* Quick Release: MOZA Quick Release
* Connection Port: Starting Switch, Power Supply, Data, Emergency Stop Switch, Display Screen
* Mounting Method: Four bottom mounting holes; dedicated bracket supports angle adjustment and side mounting; desktop clamp supported
* Table Clamp: Optional
* Side Mounting: Optional
* Emergency Stop Switch: Optional
* Firmware Upgrade: Supported
* Size (L x W x H) (mm): 240x157x124

4. Compatible Games:
* For Assetto Corsa
* For Assetto Corsa Competizione
* For Dirt Rally
* For Dirt Rally 2.0
* For Dirt 4
* For F1 2018
* For F1 2019
* For F1 2020
* For F1 2021
* For F1 2022
* For Project CARS 1
* For Project CARS 2
* For Project CARS 3
* For iRacing
* For Forza Horizon 4 (This game is currently not compatible with Steam)
* For Forza Horizon 5 (Win 10)
* For vLive For Speed
* For Automobilista
* For Automobilista 2
* For rFactor2
* For Euro Truck Simulator 2
* For American Truck Simulator
* For KartKarft
* For WRC 9
* For WRC 10
* For BeamNG.Drive
* For MudRunner
* For Wreckfest
* For RaceRoom Racing Experience
* For CarX Drift Racing Online

15.8" TSW Truck Wheel:
1. Features:
* 400mm/15.8" Standard Diameter, Classic Four-Spoke Design: Tailored for truck simulation, it features the popular 400mm diameter. The classic four-spoke truck-style design is complemented by bold chrome accents, creating a powerful and striking aesthetic.
* Dual-Texture Microfiber Leather with Hand-Stitched Seams: It is wrapped in perforated and textured microfiber leather. The perforated leather at the 3 and 9 o'clock positions provides excellent grip and prevents slipping. The microfiber leather is soft, delicate, and comfortable to the touch.
* High-Strength Aluminum Alloy Frame: The internal frame of the steering wheel is made of 4mm thick high-strength aluminum alloy, offering exceptional rigidity and stability.
* Short-Travel Backlit Buttons with 16.7 Million Colors: It features 14 automotive-style buttons with short travel and crisp, tactile feedback. Each button supports 16.7 million color customization, and is marked with truck-specific icons. It includes DIY stickers for personalized modifications.
* LED Shift Indicator with Customizable Colors: A LED shift indicator composed of 10 bright LEDs delivers a futuristic visual effect. Each LED supports 16.7 million colors for full customization.
* Lightweight Aluminum Alloy Quick Release: A lightweight quick release system ensures secure connection between the steering wheel and base. Fast to attach or detach, and highly reliable.
* Compatible with Third-Party Bases: Designed with an open and inclusive ecosystem, the wheel features built-in expansion ports and can connect directly to a PC via the MOZA universal adapter, enabling compatibility with most third-party wheel bases.
* Wireless and Conductive Slip Ring Connection Modes: The steering wheel supports both wireless communication and conductive slip ring modes, making it compatible with all MOZA racing simulator bases that use either method.
* Aluminum Alloy Thumbwheels and Ultra-Slim Flat Thumbsticks: It is equipped with 2 aluminum alloy knurled thumbwheels, offering a premium feel and clear tactile feedback for easy increment and decrement operations. Additionally, there are 2 ultra-slim flat thumbsticks that function as 4-way directional pads. Their flush design effectively prevents accidental inputs during intense steering.
* MOZA Pit House Multi-Function Control Center: It works with the Pit House steering wheel interface to test button functionality and customize settings such as joystick modes, shift indicator LED colors and brightness, activation timing, and backlight colors.
* Stable and Reliable: From torsion and destructive testing of the wheel's frame to long-term durability tests of individual electronic components, every element has passed rigorous testing. All buttons have endured 300,000 press cycles and still perform with consistent triggering and rebound.

3-Pedal SR-P:
1. Features:
* Made with High-strength Steel: The pedals are crafted from high-strength steel, ensuring superior quality and durability.
* Floor Mounted Organ Type Accelerator Pedal: The organ-style accelerator pedal allows the driver's foot and the pedal to move along the same trajectory, making throttle control easier and more precise.
* High-Precision 100KG Load Cell: The MOZA SR-P pedals feature advanced load cell sensors with a 100kg capacity. These sensors accurately detect brake pedal pressure, enabling users to apply the ideal braking force through precise pressure control.
* 16-bit High Precision Magnetic Encoder: The brake, optional clutch, and throttle pedals all use a 16-bit precision magnetic encoder with 65536 PPR resolution — offering much higher accuracy and greater stability than a Hall sensor.
* Dual Sensor Fusion Algorithm: The brake uses both pressure and angle sensors to allow precise braking control. In the initial stage, the angle sensor dominates, enabling racers to modulate the braking angle. In the mid and final stages, the pressure sensor takes over, making the pedal easier to control.
* Braking Spring and Damping Block Combined: By utilizing both a braking spring and a damping block, racers can enjoy greater control during the initial stage of pedal travel, along with a signature stiffness in the final stage that closely simulates real brake pedal feel.
* Direct Connection with PC through USB: The MOZA SR-P Pedals connect effortlessly to your PC via USB and can be easily calibrated using the intuitive MOZA Pit House software. With universal compatibility across all sim racing gear, they ensure a smooth and hassle-free experience for every racing enthusiast.
* Multiple Use Scenarios: The anti-slip mat on the bottom prevents the pedals from sliding during use without professional brackets, while still allowing easy integration into more advanced setups.
* Detachable Pedals: The pedals can be easily detached and mounted onto other professional brackets. For advanced users, they can also be installed in a reversed configuration.
* Pedal Output Curve Adjustment: MOZA Pit House allows easy configuration of pedal output curves to suit different needs.

2. Specifications:
* Material: High-strength steel
* Plate Material: High-strength steel
* Brake Sensor: Load cell + angle sensor
* Max Capacity: 100KG
* Throttle Sensor: Angle sensor
* Clutch Sensor: Angle sensor (Only for the 3-pedal set)
* Angle Sensor Resolution: 16-bit (65536ppr)
* Pedal Spacing: Adjustable
* Pedal Plate Height: Adjustable
* Pedal Connection Port: USB
* Pedal Travel Software Adjustment: Yes
* Pedal Travel Reverse Function: Yes
* Anti-Slipping Pad: Included

Wiper Turn Signal Kit:
1. Features:
Automotive-Grade Immersive Driving Experience
* Manufactured to professional automotive parts standards
* Premium texture and a deeply immersive driving experience

28 Programmable Switches
* It accurately replicates the functions of wipers, lights, and cruise control.
* 28 programmable switches meet a variety of driving needs.

Automatic-Centering Turn Signals
* Steering automatically returns to center; stalks automatic-reset, and turn signals automatic-cancel—simulating a real driving experience

Concealed Design
* Screw holes can be covered with magnetic covers.
* Concealed mounting leaves no visible marks, maintaining a clean and refined appearance.

Compatible with Mainstream Wheel Bases
* It supports direct connection to a PC and is compatible with all current MOZA racing simulator bases.
* When used with an optional bracket, it is partially compatible with third-party simulator bases.
* Currently, it is not compatible with older R16/R21 wheel bases that lack front mounting holes.
* Third-party racing simulators require an additional optional bracket. Please contact customer service for compatibility details.

Table Clamp for TSW Truck Wheel:
1. Features:
* High-Strength Steel Support Bracket: Crafted from 4-6mm thick high-strength steel, this bracket offers outstanding load-bearing performance. Its robust construction ensures superior durability and stability.
* Wide 0–75° Angle Adjustment: It features a 0-75° wide adjustment range, allowing easy customization of steering wheel angle and height. Perfectly suited for a variety of driving simulations including truck, farming, and racing simulators—delivering a realistic and comfortable driving experience.
* Compatible with Desktops & Aluminum Profile Mounting: It supports multiple installation setups with a clamping range of 3-70mm. It can be securely mounted to desks or aluminum profile frames. It is ideal for both compact desktop setups and professional cockpit environments.
* Universal for All MOZA Racing Wheel Bases: It is compatible with the entire MOZA racing simulator lineup—from the MOZA R3 to the MOZA R21.

2. Specifications:
* Size: 160 × 155 × 200 mm
* Material: High-strength Steel
* Height Adjustment Range: 5mm-70mm
* Angle Adjustment Range: 0°-75°

Packing List:
* 1 x Wheel base
* 1 x Steering wheel
* 1 x Set of pedals
* 1 x Wiper & turn signal kit
* 1 x Table clamp for TSW truck wheel

Packaging Details:
* Weight: 19.62kg

Note:
* The SR-P pedals are compatible with other products and can be used via USB alongside any brand. They are not compatible with the SR-P Lite Clutch Pedal and SR-P Lite Brake Pedal Performance Kit.
