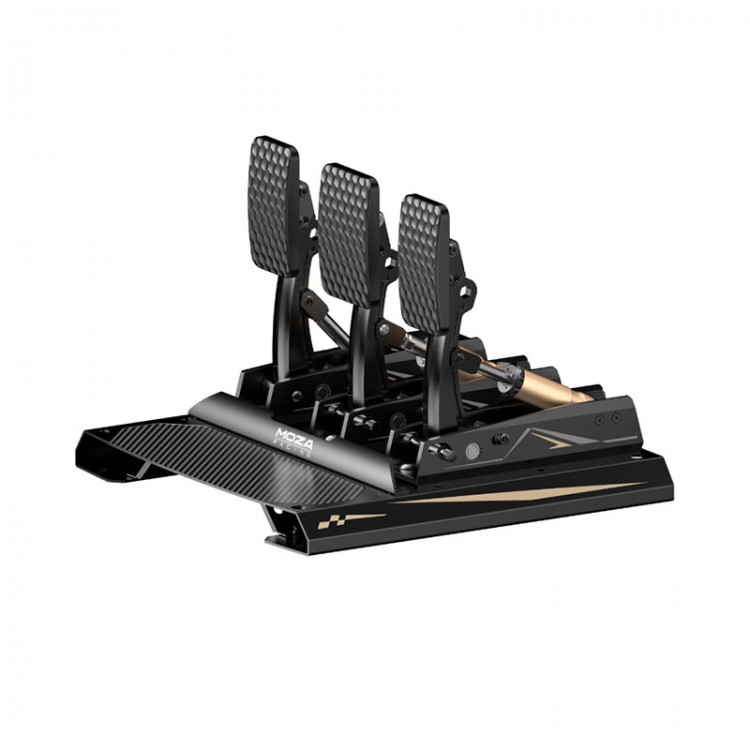

MOZA RACING CRP2 Load Cell Pedals Sim Racing Pedals (3-Pedal Set) Boast 200KG Load Cell Sensor

MOZA RACING CRP2 Load Cell Pedals Sim Racing Pedals (3-Pedal Set) Boast 200KG Load Cell Sensor

Description:
Introducing the MOZA CRP2 Load Cell Pedals — precision-engineered from CNC-machined aerospace-grade aluminum and finished with a carbon fiber heel plate, these pedals deliver exceptional durability and performance. Equipped with a 200 kg load cell sensor and a 15-bit high-precision angle sensor, the CRP2 ensures accurate, responsive braking with up to 1,764 customization options—tailored for everything from road cars to F1-level simulation. The tool-free adjustment system allows for quick, effortless tuning, while the sleek, minimalist design integrates seamlessly into any sim racing setup. Supporting inverted mounting and offering full compatibility with systems for PC and Xbox, the CRP2 is built for serious sim racers demanding professional-grade performance.

Features:
Minimalist Design
* The CRP2 sim racing pedals feature a minimalist design with smooth curves and a sophisticated black-and-gold color scheme that exudes competitive energy. Hexagonal design elements on the pedal face symbolize stability, balance, and versatility. Concealed wiring, springs, and screws contribute to a clean, professional appearance.

CNC Aerospace-Grade Aluminum Construction
* Key components are CNC-machined from aerospace-grade aluminum alloy to exacting standards and anodized for a sleek, durable finish. Additional components are made using precision die-casting and coated with automotive-grade finishes to ensure strength and quality. The base is constructed from high-strength steel to endure the intense forces of competitive racing.

Carbon Fiber Heel Plate
* The 3K twill carbon fiber heel plate adds a sporty touch while offering moderate surface friction for stable and precise heel placement during high-intensity sessions.

200KG Load Cell Sensor
* Equipped with a 200 kg pressure sensor, the brake pedal covers nearly the full braking force range found in real race cars. This provides a strong connection between muscle memory and applied braking force.

15-bit High-Precision Angle Sensor
* Using a patented sensor fusion algorithm, the CRP2 combines a 15-bit angle sensor with the load cell to deliver exceptional accuracy and fine control of braking force—maximizing responsiveness and enhancing muscle memory.

125 Brake Pedal Feel Combinations
* The brake features a damping block system with hardness options of 55, 70, 80, and 98, enabling 125 different pedal feel combinations. This adaptability supports simulation of a wide range of vehicles, from standard road cars to F3 race cars.

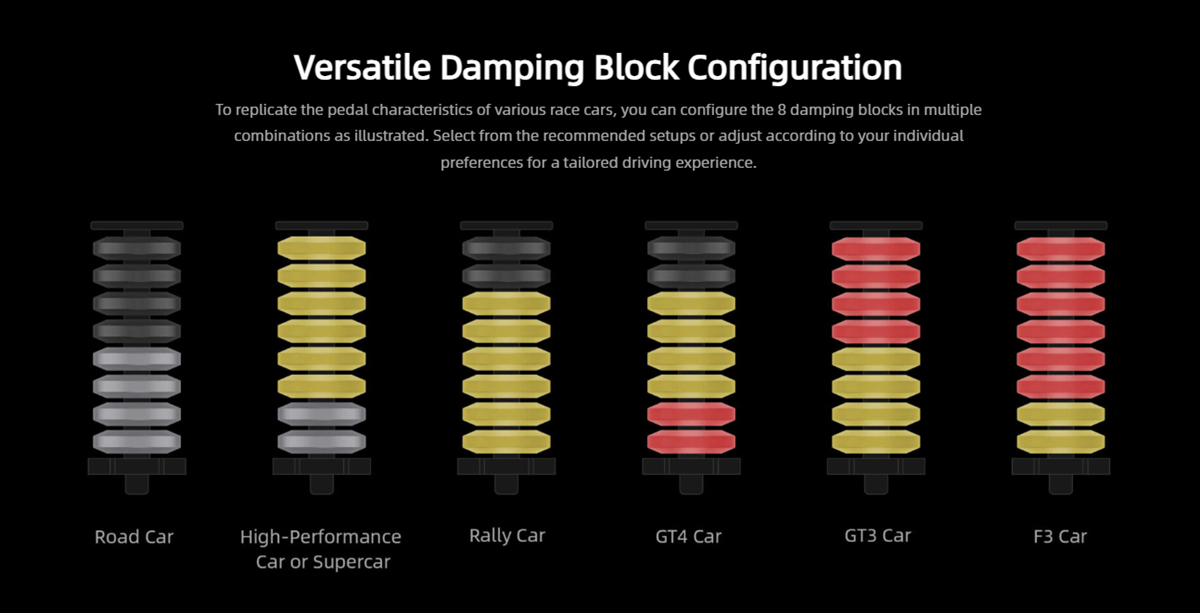

Versatile Damping Block Configuration
* Eight damping blocks can be configured in multiple combinations to simulate various race car brake profiles. Choose from suggested configurations or create a custom setup to match your driving style.

Adjustable Throttle
* The throttle features a spring-enclosed design and a precision guide rod for a silky-smooth pedal feel. It includes two springs with different resistance levels and allows for continuous force adjustment to simulate throttle feedback from a wide range of vehicles.

Three-Stage Adjustable Clutch (Optional)
* The clutch mimics the feel of high-performance vehicles with three distinct stages:
Stage 1: Short travel with light resistance
Stage 2: Sharply increased resistance, mimicking a clutch pressure plate spring
Stage 3: A quick release with a satisfying snap
* It also includes two resistance springs and continuous force adjustment to simulate various vehicle types.

Quiet and Smooth Operation
* An enclosed structure combined with a high-polish steel shaft ensures quiet, smooth pedal motion. Soft end-point cushions provide effective noise reduction during use.

Tool-Free Adjustment
* A patented tool-free design allows quick adjustments to damping blocks, springs, and pedal forces—no wrenches or tools required. Ideal for switching between vehicle profiles.

Adjustable Travel and Angle
* Each pedal—brake, throttle, and clutch (optional)—offers adjustable travel and angle, giving you full control over pedal feel and ergonomics.

Adjustable Position and Height
* Pedal spacing, footrest position, and pedal face height (adjustable up to 30 mm) are all customizable, supporting various foot sizes and user preferences.

Ergonomic Design
* The pedal surfaces follow a biomimetic curve that conforms to the foot arch, enhancing comfort and enabling more effective force application.

Enhanced Compatibility
* When paired with the Xbox-compatible ESX wheel base, the CRP2 pedals can be connected directly for Xbox use. They also support direct connection to a PC or the base.

Professional Software Support
* MOZA Pit House software allows you to monitor pedal status, configure pedal travel and signal output curves, adjust electronic travel, and view real-time signal output curves—unlocking the full potential of the hardware.

Engineered for Endurance
* Each CRP2 pedal has been tested for over one million press cycles, ensuring long-term durability and performance for even the most demanding sim racers.

Supports Inverted Mounting
* The CRP2 pedals support inverted mounting to replicate the layout and ergonomics of real road cars. This can be done with optional components or custom brackets.

Optional Performance Kit
* The Performance Kit includes 10 springs, various damping blocks, and a metal block. When combined with the original damping blocks, it offers 1,764 possible pedal feel combinations—enabling near-instant brake response and mimicking the hard brake feel of F1 and F2 cars.

Performance Customization Options
* Fine-tune your driving experience with various pedal feel and travel configurations. The spring offers a linear braking feel, while the aluminum block minimizes pedal travel for quicker response.

Specifications:
* Pedal Body Material: Aerospace-grade aluminum alloy
* Heel Plate Material: 3K twill carbon fiber
* Base Material: High-strength steel
* Load Cell Sensor Range: 0–200kg
* Brake Sensor: Load cell sensor and angle sensor
* Angle Sensor Resolution: 15-bit (32768 PPR)
* Brake Pedal Feel: 115 standard adjustments, 1764 optional configurations
* Throttle Adjustment: Two spring options with infinite adjustment
* Clutch Adjustment: Two spring options with infinite adjustment (Optional clutch)
* Brake Travel Adjustment: 15–20°
* Throttle Travel Adjustment: 15–23°
* Clutch Travel Adjustment: 15–25° (Optional clutch)
* Pedal Angle Adjustment: 0–15°
* Pedal Face Height Adjustment: Up to 30mm
* Footrest Adjustment: Up to 30mm
* Pedal Curve Adjustment: Adjustable
* Real-time Pedal Output Display: Adjustable
* Pedal Pressure Engagement Point: Adjustable
* Pedal Surface: Biomimetic curved
* Inverted Mounting Kit: Optional

Packing List:
* 1 x 3-Pedal Set

Packaging Details:
* Weight: 10.2kg
