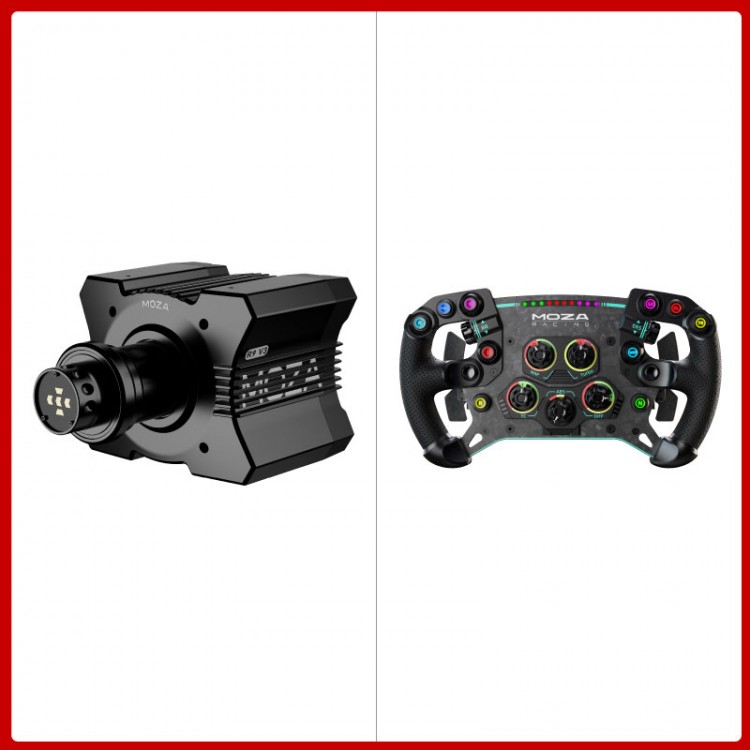

MOZA RACING R9 V3 9Nm Direct Drive Wheel Base with Force Feedback + 300mm/11.8" GS V2P GT Wheel

MOZA RACING R9 V3 9Nm Direct Drive Wheel Base with Force Feedback + 300mm/11.8" GS V2P GT Wheel

R9 V3 9Nm Direct Drive Wheel Base:
1. Features:
Professional True Servo with 9Nm of Torque
* It delivers a sustained and stable output of 9Nm torque, faithfully replicating the steering resistance from consumer vehicles to race cars. It finely transmits all driving details, meeting the gaming and training needs of most racing enthusiasts.

21-bit Magnetic Encoder & 280MHz High-Performance Processor
* 2.09 Million-Level Force Feedback Resolution: The 21-bit magnetic encoder divides each full rotation into 2,097,152 steps, offering ultra-refined control.
* With angle detection precision up to 0.00017°, the response is more accurate and the steering feel is smoother.
* It reproduces rich and detailed force feedback sensations with high realism.

High-Performance Servo Motor
* High torque density, compact yet powerful: Featuring a high slot fill ratio design, magnetic core with excellent conductivity, and strong neodymium magnets, it ensures lower power consumption and higher output.
* Multi-slot, multi-pole design with ultra-low torque ripple: 18-slot, 16-pole structure provides reduced torque ripple and superior vibration damping, making steering feel smoother and silkier.
* Wide High-Torque Speed Range: With a low back-EMF design, it maintains high torque even at high speeds, enabling fast direction corrections while preventing torque dropouts.

NexGen Force 4.0 Feedback System
* More detailed and refined force feedback lets you clearly perceive curbs and road surface bumps.
* The vehicle's center of gravity shift and tire slip response are more sensitive and rapid.
* A newly developed cogging torque compensation algorithm provides smoother steering feedback.
* Force Feedback Interpolation Algorithm: It eliminates force spikes during sudden feedback changes, creating a more natural and fluid experience.
* Game Feedback Decoupling: It deconstructs game force feedback into separately adjustable components, allowing for greater customization.
* Innovative Road Surface Perception Equalizer: Scene-based vibration tuning maximizes useful feedback while filtering out excess noise, delivering immersive and realistic driving sensations.
* Self-Developed Force Feedback Curve Adjustment: It allows the base force feedback output to have a nonlinear relationship with the game commands, amplifying dynamic force feedback that aids driving while weakening interfering forces. This helps drivers more easily detect vehicle loss of control, improves driving tolerance, and lets them confidently push the limits.

Intelligent Motor Temperature Control System
* It monitors the temperature of the motor and electronic components in real time, ensuring stable operation of the device even during endurance races.

High-Strength Aluminum Alloy Body
* Using automotive-grade coating and laser processing, it delivers a premium metallic texture.

Professional Conductive Slip Ring — Stable and Durable
* It securely connects the base and steering wheel, enabling high-speed rotation with a lifespan of up to 5 million revolutions. The data comes from MOZA laboratory durability tests.
* Stable performance, durable and reliable.

Mobile App Cloud Control
* Users can adjust the base, steering wheel, pedals, and other devices remotely. Parameter tuning during races can be done without pausing or switching windows. Main operations in the Pit House can be completed via smartphone or tablet.

MOZA Pit House – Professional Sim Racing Control Center
* MOZA's independently developed PC-based control center allows users to monitor the status of all devices within the MOZA ecosystem. Users can quickly adjust parameters and launch games without repetitive setup.
* Quick Tuning for the MOZA Ecosystem: Pit House enables function checks and personalized quick tuning for all MOZA devices. Users can launch games directly, apply one-click configurations, and access telemetry data. It offers a user-friendly interface and comprehensive functionality.
* Beginner-Friendly: It provides one-click scenario-based presets tailored to different racing car types and game titles, including official presets and exclusive setups from professional sim racers. Beginners can start racing immediately without a steep learning curve.
* 19 Force Feedback Tuning Parameters for a Custom Feel: It offers 19 adjustable parameters such as mechanical friction and road feel sensitivity. The open tuning platform allows players to create their ideal steering feel while learning about tuning and improving their skill level.
* Proprietary Road Surface Perception Equalizer: It enables precise, scenario-based adjustment of road texture vibration. It retains helpful feedback while filtering out excess vibrations, delivering an extraordinary immersive driving experience.
* Proprietary Force Feedback Curve Adjustment: It allows the base's force output to follow a non-linear relationship with in-game commands. It amplifies dynamic feedback beneficial to driving, dampens distracting forces, and helps the driver better detect vehicle instability—enhancing control near the limits.
* Detailed Steering Wheel Control: Through MOZA Pit House, users can finely tune settings such as dual-clutch paddles, knobs, joysticks, and shift indicator lights, significantly improving steering wheel handling.
* Precision Pedal Adjustment: On the pedal setup page, users can finely adjust throttle, brake, and clutch travel, output curves, and pressure response points. This helps players quickly develop proper braking techniques and effectively improve lap times.

Integrated Design Saves Space
* Using an integrated motor, it is compact and portable.
* It supports professional cockpits, integrated brackets, and desktop clamp installation, providing more installation options.
* Note: Desktop clamp installation requires purchasing the desktop clamp separately.

2. Supported Games:
* Assetto Corsa
* Assetto Corsa Competizione
* Forza Horizon 4 (Microsoft Store)
* Forza Horizon 5
* Euro Truck Simulator 2
* American Truck Simulator
* RaceRoom Racing Excperience
* F1 2018
* F1 2019
* F1 2020
* F1 2021
* F1 22
* F1 23
* rFactor 2
* Project CARS 1
* Project CARS 2
* Project CARS 3
* WRC G
* WRC 9
* WRC 10
* Dirt Rally
* Dirt Rally 2.0
* Dirt 4
* iRacing
* Wreckfest
* KartKarft
* Richard Burns Rally
* Live For Speed
* BeamNG.Drive
* MudRunner
* CarX Drift Racing Online
* Automobilista 2

3. Specifications:
* Supported Platform: PC
* Drive Type: Direct Drive
* Maximum Steering Angle: 90° to 2700°
* Housing Material: Aluminum Alloy
* Maximum Torque: 9 Nm
* Maximum Power: 180W
* Input Voltage: 110V~220V AC → 36V DC
* Maximum USB Refresh Rate: 1000Hz
* App Functionality: Supported
* Quick Release: Supported
* Ports: Power, Data, Pedals, Display, Shifter, Handbrake, Emergency Stop Switch
* Accessories: User Manual, Power Supply, Data Cable, Screw Kit
* Mounting Method: Four bottom mounting holes; dedicated bracket supports angle adjustment and side mounting; desktop clamp supported
* Firmware Upgrade: Supported
* Desktop Clamp: Optional
* Side Mounting: Optional
* Emergency Stop Switch: Optional

GS V2P GT Wheel:
1. Features:
* 300mm/11.8" GT Wheel Built for E-Sports: The GS V2P is MOZA's e-sports-ready GT-style racing wheel — a fully featured 300mm sim wheel designed for maximum immersion with zero compromises.
* Perforated Microfiber Leather: The MOZA GS V2P features perforated microfiber leather, offering a premium feel and a refined touch compared to traditional rubber grips.
* Forged Carbon Fiber Frame and Paddles: Crafted from 5mm high-strength forged carbon fiber, the GS V2P's frame and paddles deliver a solid, weighty feel and dependable durability.
* Dual Clutch System with Magnetic Shifters: The magnetic carbon fiber paddles provide a satisfying mechanical response with every shift. The lower clutch paddles support both single and dual-clutch modes — ideal for professional sim racing platforms like iRacing and the F1 series.
* All-Aluminum Quick Release: Inspired by real racing wheels and precisely CNC-machined, the lightweight quick-release mechanism of the GS V2P offers industry-leading performance. Adhering to rigorous racing safety standards, it's been thoroughly tested for durability and reliability.
* 10 Programmable Backlit Mechanical Keys: Equipped with 10 programmable mechanical buttons, the GS V2P delivers tactile feedback with each press. Customize the button colors using the MOZA Pit House App, choosing from 8 vibrant color options.
* 8-Color RPM LED Lights: The wheel includes 10 high-brightness, 8-color RPM LEDs, allowing for full customization — with over 100 million color combinations. You can also adjust the RPM indicator's switch mode and timing for a tailored racing experience.
* Optimized, Ergonomic Design: The GS V2P offers a firm yet comfortable grip that mimics a real GT wheel. Even under the force of MOZA's powerful R21 base, drivers can make swift adjustments mid-race thanks to strategically placed joysticks, buttons, and switches. Make real-time car adjustments with ease using the thumb knobs and band switches — perfect for tuning brake bias, traction control, engine maps, ABS, and more. Two integrated joysticks also enable full menu navigation, so your hands never need to leave the wheel. There are two thumb knobs, five band knobs and two universal joysticks.

2. Specifications:
* Grips: Perforated Microfiber Leather
* Wheel Rim & Face Plate Material: 5mm-thick Forged Carbon Fiber
* Back Plate Material: Carbon Fiber Reinforced Composite
* Shifter Paddle Material: 3mm-thick Forged Carbon Fiber
* Size: 300mm/11.8" Diameter Standard Racing Wheel
* Magnetic Shifter Paddles: 2
* Clutch Paddles: 2
* Luminous Mechanical Buttons: 10
* Rotary Encoders: 5
* Thumb Encoders (depressible): 2
* Joysticks: 2
* LED Lamp Beads RGB: 10
* Choice of Colors: 8
* Intelligent Telemetry: Yes
* Fully Adjustable RPM LEDs through MOZA Pit House: Supported
* Release Method: All-aluminum MOZA quick release
* Paddle Sensor: Non-contact Hall Sensor
* Dual Clutch Modes: Combined Axis/Independent Axis/Button

Packing List:
* 1 x Set of wheel base + steering wheel

Packaging Details:
* Weight: 8.88kg
