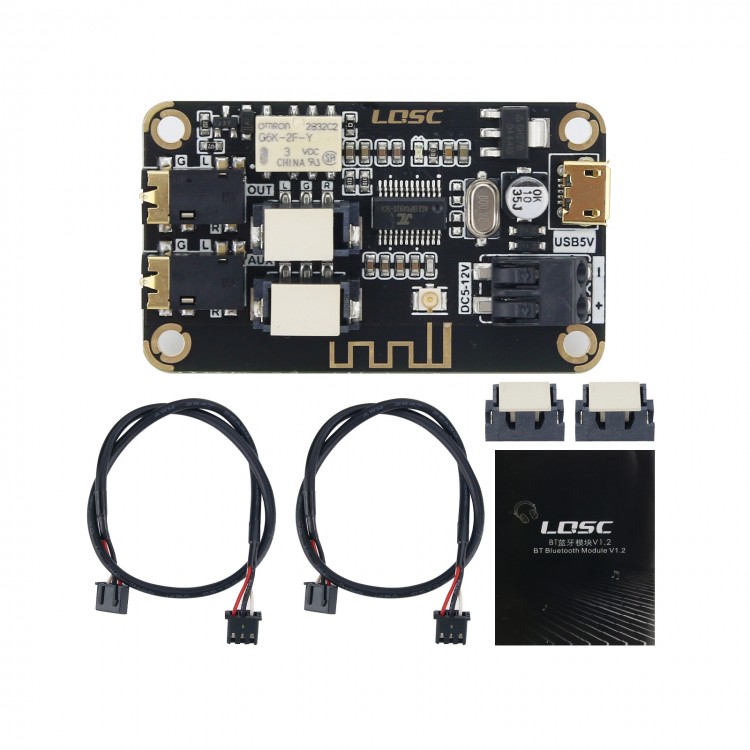

MP3 Bluetooth Decoder Board BT4.2 Stereo Audio Receiver Module Support AUX Input Wide Voltage Antenna
Parameters:
- Bluetooth Module Ver: 1.2
- Input Voltage: DC5V-12V
- Bluetooth Version: 4.2
- Bluetooth Name: LQSC_BT
- Working Temperature: -40℃ to 85℃
- Full patch process
- Wide range of operating voltage
- Power supply reverse protection
- Dual AUX input terminals (3.5mm and 2.54mm 3P)
- Dual audio output terminals (3.5mm and 2.54mm 3P)
- Can be connected with an external antenna (for mounting inside a metal box)
LED Indicator:
- Flashing: waiting for connection
- Slow flash: audio playing
- Steady on: connected
- Bluetooth Name: LQSC_BT (supports back connection)
- Decoding Format: AAC, FLAC, APE, WMA, WAV
Usage Method:
- This module is a Bluetooth receiver module that outputs standard analog audio signals. At the same time, the AUX input terminal is added to facilitate connection with other audio sources.
When Bluetooth is not connected, the AUX terminal and the OUT terminal are directly connected.
When Bluetooth is connected, the Bluetooth audio signal is output from the OUT terminal, and the AUX terminal and the OUT terminal are disconnected.
Package Included:
- 1 x MP3 Bluetooth Decoder Module
- 2 x 2.54mm 3P Audio Shielded Cables
- 2 x 2.54mm 3P Socket Terminals
