Features:
- Super three audio decoding -WAV + WMA + MP3, lossless music listening casually.
- Advanced noise reduction recording mode, ultra-clear sound likes original.
- With high-quality audio function, USB access more convenient.
- With TF card (mobile phone memory card) downloading function, no need to plug TF card frequently for downloading music.
- Support TF Card (mobile phone memory card) and U disk play mode.
- Onboard 2W power amplifier and sounds super loud, also with PCB terminals,and easy to wire.
- Gold-plated headphone output interface is compatible with both the national standard and American standard headphones, without equipping special standard headphone.
- Gold-plated AUX input interface, convenient for external audio accessing.
- The unique remote control design, manipulate randomly is no longer distant.
- With a key interface and MCU interface, make the secondary development possible.
- With Micro USB power supply interface, mobile power supply is simple ; lead to positive and negative power supply pads, 3.7V lithium battery easy to modify.
- Support breakpoint memory save function.

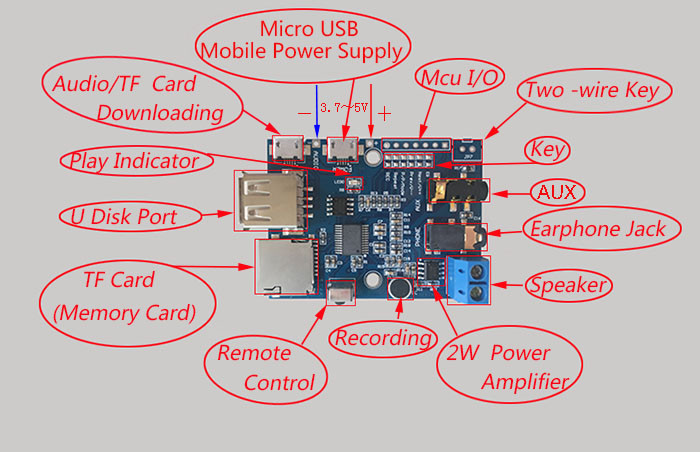

Product  Overview:
- Support MP3, WMA, WAV format decoding (identify automatically).
- Support recording function, via buttons or remote control to enter the recording mode,when enter the recording mode,the frequency of LED indicator becomes faster.
- Support USB data cable downloading (TF card), connect the data cable between computer and Audio interface ,you can read / write files to TF card.
- With high-quality USB AUDIO (sound card) function, use a USB data cable to connect the computer and Audio Interface directly; wait for the computer to recognize the new device , and open the music player software to play music ,and you can switch to USB audio to play, and can adjust the volume .
- Support TF card (128M ~ 32G), U disk (1G ~ 32G) (If there is only one kind of device,  equipment would be identified automatically; if the two devices are both installed,it would be switched by remote control or buttons), support FAT16 / FAT32 file system.
- Support Mode: TF card, U disk, Linein mode, recording mode, audio mode; TF card power-on default.
- Support AUX external input, and volume is controled by the decoder.
- Key function: prev / Volume -, Next / Volume +, Play / Pause / MODE, EQ, single / repeat, recording.
- Support remote control, the remote control can replace keys (For more details, view the remote control key function).
- Support break-point save function, if power failure during playing, the next time the power up, it would continue to play music from the miusic break-point.
- EQ function, EQ has six forms: Normal , Class , JAZZ , Rock , Bass , POP ; the Normal default .
- Leave spare keys, as well as two-wire keyboard interface for key modification; also through the microcontroller I / O port control buttons for follow-up development easily.

Onboard Key Function Description:
- Key                  Function
- EQ                   Sound mode
- Next/V++         "Press" for switching next song, "long press" for volume up.
- Prev/V--           "Press" for switching previous song, "long press" for volume down
- P/P/Mode        "Press" for the "Play/Pause" Switch, "long press" for U disk, TF card mode.
- Repeat            "Press" for “single/all song" mode.
- REC                 Recording.

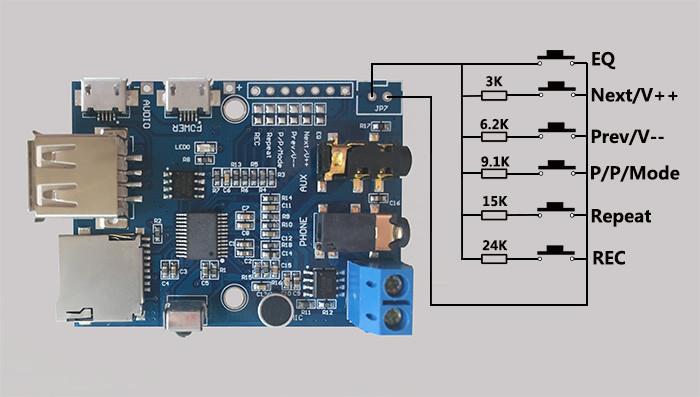

Two-wire key modification:

Instructions:
- When you use the "Sound / download" function,it must not be inserted U disk on the board; connect the computer and Audio Interface though data lines ,audio can be output through the decoder board (using the player software to play music), also TF card can be read and written, but this mode can not play music storaged in U disk and TF card.
- Use recording mode; press the REC button on the remote control, the frequency of decoder indicator LED becomes faster , and start recording, press the REC button when recording is finished, the frequency of LED indicator becomes slower, and start playing the recording, after playing the recording ,it will switch to play music mode saved in TF card, if there is no TF card, it would switch to U disk play mode. (Audio (MP3 format) storaged in the TF card default, without TF card, storaged in the U disk).
- If using U disk play mode, it is recommended to use USB 5V power supply (not recommended for use 3.7V lithium battery-powered) since the early U disk does not support 3.7V voltage.
- POWER interface must be used when using a mobile power supply; Audio interfaces must not be used, or can not play the music storaged in U disk.
- Keyboard can be replaced through the microcontroller I / O port to achieve the music controls.

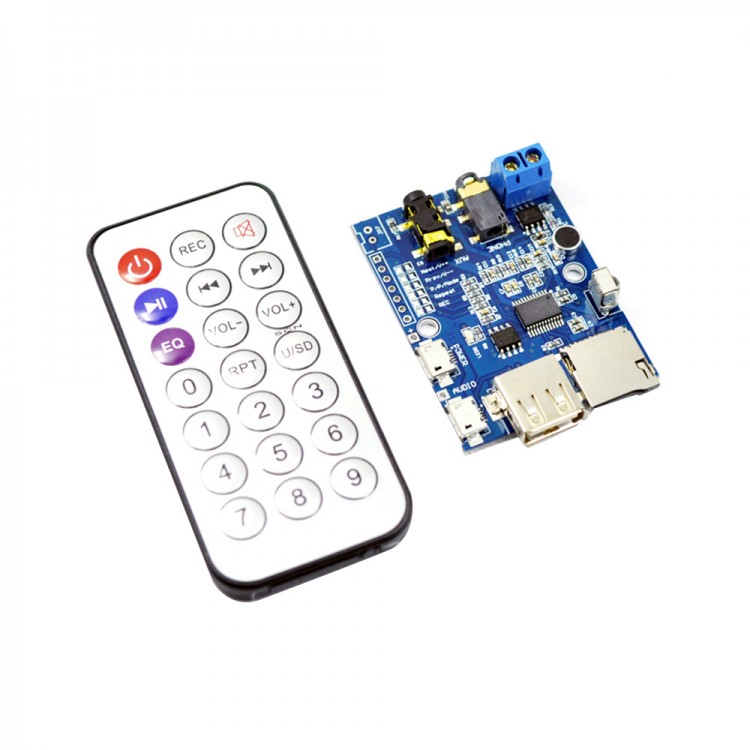

Package list:
- 1 x MP3 WAV WMA Decoder Board
- 1 x Remote controller
