Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $313.50 | $307.10 | $297.51 | $284.71 | Contact US |

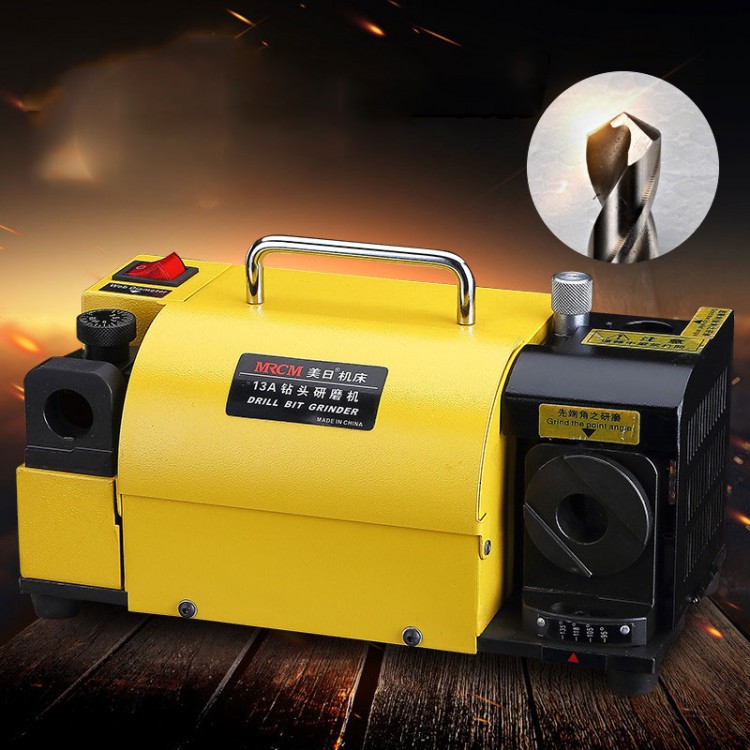

Description:
The machine is set up with the function of adjusting a point (central point) size, which can effectively coordinate with the material of drill hole and the rotation speed. It can control the quality precision and prolong the service life of the drill bit.
Features:
- Be used to grind the twist drill bits of 2 - 15 mm diameter, no limit on max. length.
- The min length is according to the collect, if the twist drill can be held, then it can be grind.
- Can grind the HSS or Carbide(optional)
- Can grind the point angle and lip relief angle. (If you also want to grind front cutting lip, please choose MR-13D)
- The electrically controlled and powerful DC motor: stable frequency, strong horsepower and long service life.
- Bearing shaft and locking unit
Specification:
- Model: MR-13A
- Grinding Range: ø 3 - ø 13( ø 2 - ø 15 optional)
- Point Angle: 100° (90°) ~ 135°
- Power: AC 220 V, 50 Hz; AC 110 V, 60 Hz
- Motor: 180 W
- Speed: 4800 rpm
- Dimension: 32 x 18 x 19 cm
- Weight: 10 kg
Package Included:
- 1 x Drill Sharpener MR-13A
