MS6812 Multi-Function Cable Tracker Cable Locator w/ Carrying Pouch & Test Leads for Telephone Lines

MS6812 Multi-Function Cable Tracker Cable Locator w/ Carrying Pouch & Test Leads for Telephone Lines

Description:

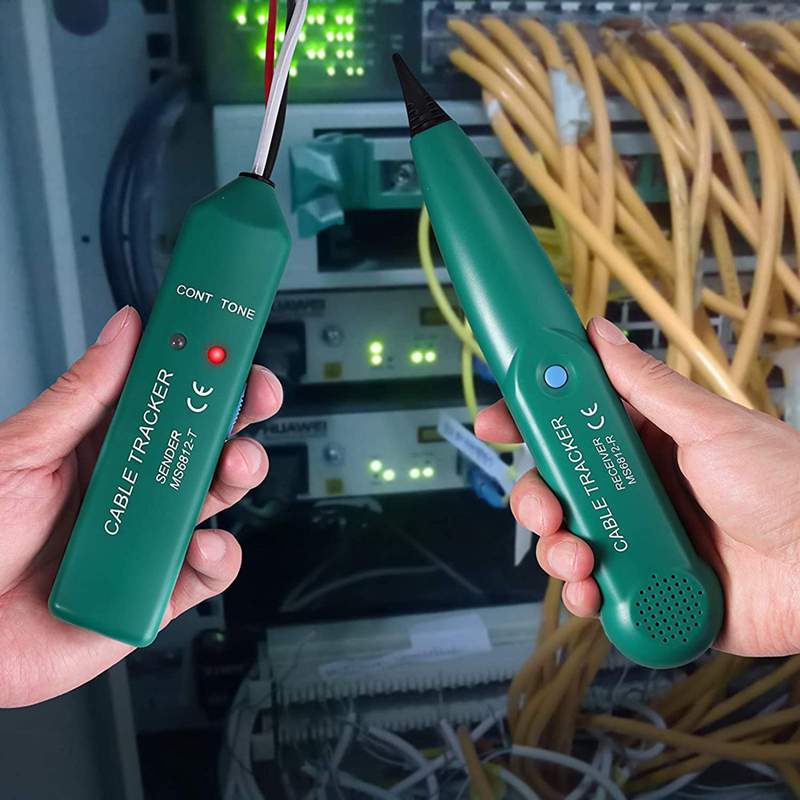

The cable tracker is designed to identify and trace wires or cables in a group without damaging the insulation.

The telephone cable tracking system consists of a tone generator and a probe, allowing you to locate cable routing and detect breakpoints in the line (and pinpoint their location if present).

It can also identify the status of a working telephone line so you can determine whether the line is idle, ringing, or in use—all without causing any interference or damage to the cable installation.

Benefits:
* Determine cable or wire continuity
* Trace and diagnose breakpoints
* Send a single pure tone to the cable
* Indicate whether a telephone line is idle, ringing, or busy
* Check cables without interrupting installation
* High-quality tool with adjustable volume sensitivity control
* Simplifies installation, debugging, and maintenance of one or multiple telephone lines at home or in the office

Features:
* Determine whether cable lines are continuous
* Trace cable routing and locate line breakpoints
* Receive audio signals from cables (telephone lines)
* Identify the status of a working telephone line (idle, ringing, off-hook)
* Send a single-tone or dual-tone signal to the target cable

Specifications:
* Audio signal: 1.5kHz
* Receiving frequency range: 100Hz-300kHz
* Dimensions: Receiver: 238mm × 43mm × 26mm; Transmitter: 145mm × 35mm × 25mm
* Net weight: 240g
* Connector: RJ-11 (for telephone cable sockets)

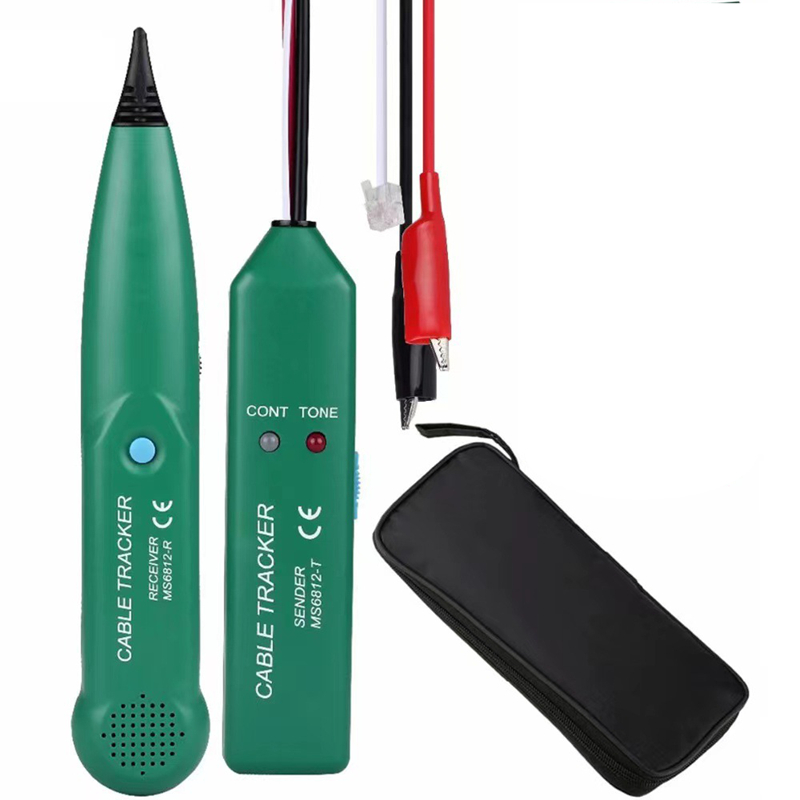

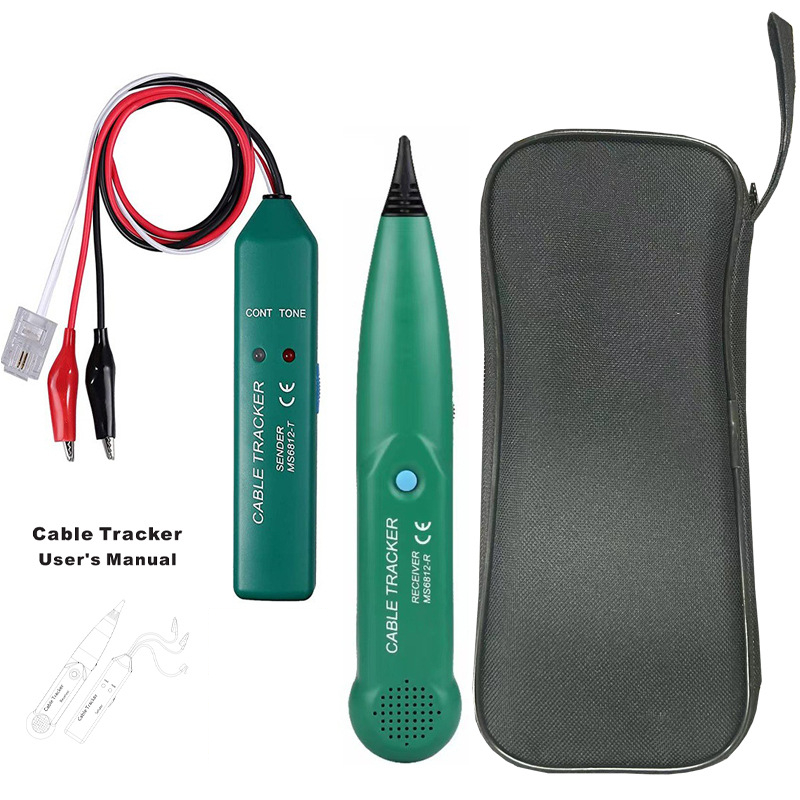

Packing List:
* 1 x Transmitter with test leads
* 1 x Receiver
* 1 x Carrying pouch
* 1 x User manual

Packaging Details:
* Weight: 0.4kg

Note:
* Batteries are not included. Two 9V batteries are needed.
