NF-8209 Pro (NF-8209Pro) Cable Tracker Network Cable Tester NCV Detector with LED Lighting

Availability: In stock, usually dispatched in 1 business day

  • Price:$69.83
  • Price in reward points: 698 Reward Points: 7
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $68.43 $67.04 $64.94 $62.15 Contact US
Quantity:

NF-8209 Pro (NF-8209Pro) Cable Tracker Network Cable Tester NCV Detector with LED Lighting

Features:

Multifunction Network Cable Tracer
* 60V voltage withstand, overload protection
* Line tracing, pair mapping, and cable testing
* Testable cable length: 5–350m
* Large 1400mAh lithium battery
* Strong anti-interference signal
* PoE testing and port flashing
* RJ45/RJ11 plug crimp testing
* NCV detector and LED flashlight

60V Voltage Withstand & Overload Protection
* Safe protection: Supports safe and fast cable mapping under voltages not exceeding 60V, preventing device damage

High-Standard Connectors
* Firmly grips RJ45 and RJ11 plugs
* Suitable for RJ45 network cables and RJ11 telephone cables
* Dual-core telephone cables can be adapted using alligator clips

Line Tracing Function
* Quickly identifies the target cable
* Supports network cables, telephone cables, and metal wires
* Efficiently locates the correct cable in long or messy cable bundles

New Upgraded Combined Line Tracing & Pair Mapping
* In line tracing mode, you can perform pair mapping directly without adjusting the main unit, greatly improving testing efficiency.
* Note: Supports direct pair mapping for 60V low-voltage switches in powered-on state. Do not use on high-voltage lines. Non-standard or high-voltage switches cannot be mapped to avoid damaging the device.

Cable Sequence Indicator Lights
* Makes pair mapping easy and simple
* For network cable pair testing, select the pair mapping function with the button, then plug the cable into the main and secondary unit ports

PoE Testing for Quick Identification
* Can test MCU and IEEE 802.3af/at PoE protocols
* Connect the PoE device to the main unit using a network cable to quickly verify if it is a standard PoE device
* Displays number of powered pins, voltage, device standard, and other parameters at a glance

Port Flashing
* Connect the cable under test to the transmitter
* The corresponding port indicator on the switch or router will flash in sync, allowing easy identification

Single-End RJ45 Crimp Quick Test
* Automatically detects if the cable RJ45 crimp is correct
* Unlike traditional testers, it can test cables even with only one end terminated

Signal Enhancement for Longer Cable Testing Distance
* Can test continuity on cables up to 350 meters
* Line tracing supports unshielded network cables up to 100 meters

NCV Inductive Alarm Detection
* AC voltage detection range: 48–1000V
* When the probe approaches an AC voltage source and detects a signal, the receiver emits a "beep" alarm

Built-In Illumination for Dark Areas
* Equipped with a flashlight function, making work in dark or complex environments easier and safer

Specifications:
1. Transmitter Test Functions:
1.1. Pair Test:
* Applicable Cables: CAT5, CAT6
* Cable Test Functions: Normal, Open Circuit, Short Circuit, Crossed
* Cable Shielding: Can distinguish between Shielded and Unshielded
* Wiring: 1-to-1 Pair, Punch-down/Pair Interface + RJ45 Receiver Interface
* Test Length: 600 meters

1.2. Punch-down Test:
* Test Type: 8-core
* Identification Response Time: ≤1 second
* Minimum Identification Length: Greater than half the internal length of the RJ45 connector

1.3. Length Test:
* Cable Type Tested: CAT5, CAT6
* Open Circuit Length Measurement Range: 5–300 meters
* Typical Measurement Accuracy: ≤20m: ±1.6m; 20–100m: ±2.4m; >100m: ±3.2m
* Minimum Resolution for Length Measurement: meters/feet/yards
* Short Circuit Distance Indication: Detects distance to cable short fault

1.4. Cable Tracing Test:
* Applicable Cables: Cat5, Cat6
* Output Signal Voltage: 5V±1.0Vp-p (Audio Mode)
* Volume at 0cm from Probe: >105dB
* Volume at 30cm from Probe: >80dB
* Audio Transmission Frequency: 455kHz
* Cable Tracing: Supported
* Anti-Interference Mode: Supported
* Maximum Audio Transmission Distance: RJ45 1000 meters

1.5. POE Test:
* Voltage Test Range: DC 5–60V
* Power Wire Core/Bridging Method: End Bridging/Mid Bridging/8-core Power/Unknown
* Standard Identification: Non-standard, IEEE 802.3at/af

1.6. Port LED Flashing:
* Switch Type: 10M/100M/1000M

2. Other Parameters:
* NCV Tester Function: AC 80V–1000V, 50Hz/60Hz
* Headphone Function: Supported
* LED Illumination: Supported
* Power Supply: 3.7V 1400mAh Polymer Lithium Battery
* Automatic Power Off: 30 minutes
* Pair Interface: RJ45
* Transmitter Dimensions: 125mm × 70mm × 32mm
* Receiver Dimensions: 198mm × 50mm × 30mm

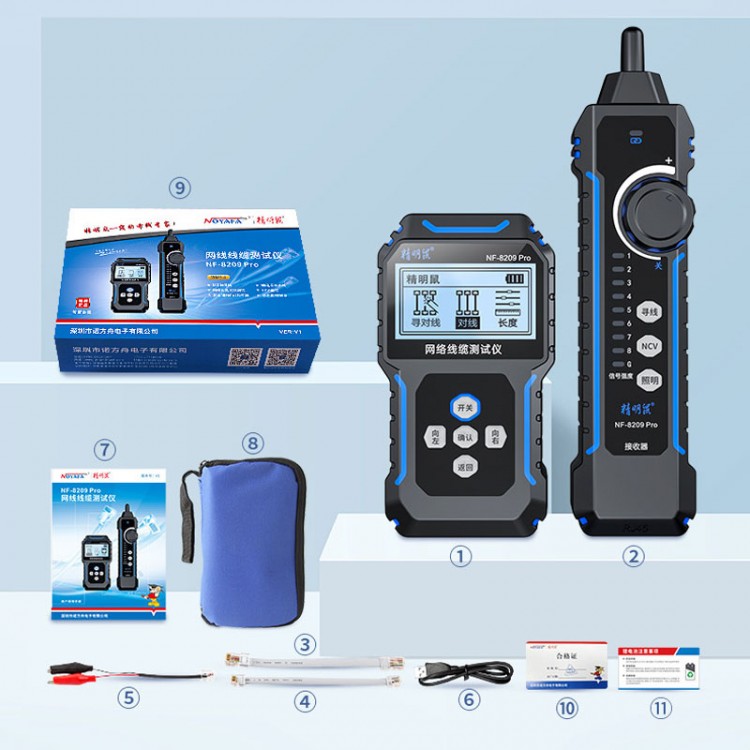

Packing List:
* 1 × Transmitter
* 1 × Receiver
* 1 × RJ45 Network Cable
* 1 × RJ11 Telephone Cable
* 1 × Pair of Alligator Clips
* 1 × Type-C Charging Cable
* 1 × User Manual
* 1 × Tool Bag
* 1 × Certificate of Conformity/Warranty Card
* 1 × Precaution Card

Packaging Details:
* Weight: 0.6kg
