NOYAFA NF-308S Cable Tracker Wire Tracker Wire Fault Locator Network Cable Length Tester (English)

NOYAFA NF-308S Cable Tracker Wire Tracker Wire Fault Locator Network Cable Length Tester (English)

Description:
NOYAFA NF-308S is an English version cable finder. It is an upgraded version of NF-308. NF-308S has upgraded its withstand voltage PoE performance.

Features:
1. Directly hunt 5E, 6E, telephone wire, coaxial cable, USB cable and other cables.
2. Check wiring error in 5E, 6E and coaxial cable, such as open circuit, short circuit, jumper wire and reverse connection.
3. Locate the wiring or connection error.
4. Measure cable length and determine the distance of breakage point.
5. Automatically time-delay shut off and backlight display.
6. Single board computer software watchdog design and reliable operation.
7. Verify RJ45 and BNC conductors.

Attention:
1. Don't connected high voltage lines to avoid burning out the machine.
2. Pay attention to the sharp part and put it into the right place to avoid hurting others, because of .
3. Connected the cable to the right port.
4. Read the user manual before use.　

Specifications:
Over Specifications:
- Model: NF-308S
- Port: RJ45, RJ11, BNC and USB 　
- Wire map type: RJ45 and BNC Cable 　
- Tracking type: RJ45, RJ11, BNC, USB and Metal Cable
- Other function: Port flash function

Transmitter:
- Indicator: LCD 53 x 25mm/2.1 x 1", with backlight
- Tone frequency: 225Hz
- Max. distance of transmission: 2km
- Max. distance of cable map: 300m/984.3ft
- Max. working current: Less than 70mA
- Tone mode: 2 tone adjustable
- Compatible connectors: RJ11, RJ45, coaxial and USB
- Max. signal voltage: 15Vp-p
- Function selection: 3 position buttons & 1 power switch
- Function and faults LCD display: LCD display (wire map, tone, short, no adapter)
- Cable map indication: LCD (#1-#8)
- Shielded indication: LCD (#9)
- Voltage protection: AC 60V/DC 42V
- Dimensions (LxWxD): 185 x 80 x 32mm/7.3 x 3.1 x 1.3"

Receiver:
- Frequency: 225kHz
- The Max. working current: Less than 70mA
- Earphone jack: 1
- LED illumination: 2
- Dimensions (LxWxD): 218 x 46 x 29mm/8.6 x 1.8 x 1.1"

Remote Unit:
- Compatible connectors: RJ11, RJ45, coaxial and USB
- Dimensions (LxWxD): 107 x 30 x 24mm/4.2 x 1.2 x 0.9"

Function Comparison:
- Function: NF-308
- Find cables: RJ45+RJ11+BNC USB
- Address cables: RJ45+BNC
- Test length: RJ45
- Test cross cables: RJ45+BNC
- Test short-circuit: RJ45+BNC
- Test crosstalk: RJ45+BNC
- Lighting: √
- Earphone: √
- Anti-jamming: √
- Voltage withstand: √
- Tone: 2 types

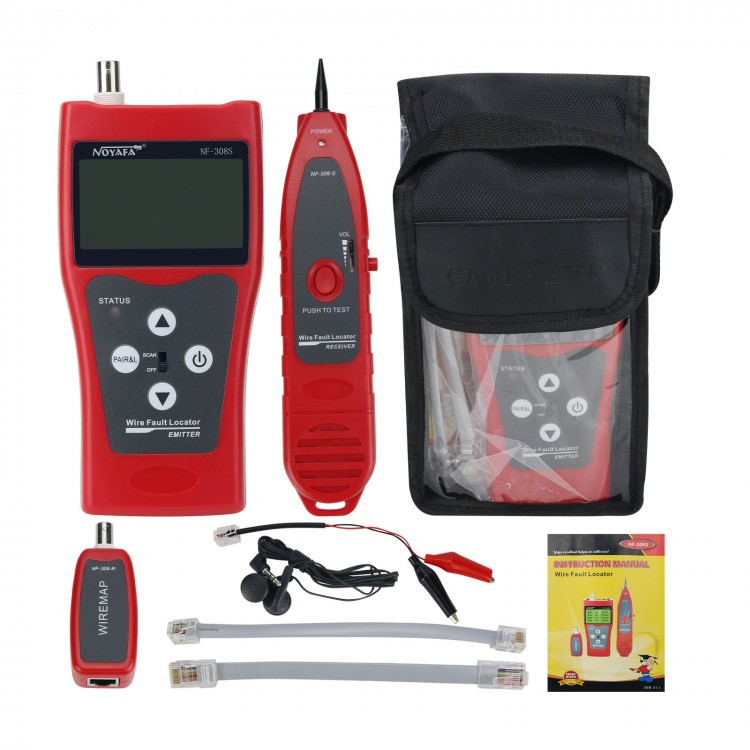

Package Included:
- 1 x Transmitter
- 1 x Receiver
- 1 x Remote unit
- 1 x Earphone
- 1 x Set of telephone line adapter
- 1 x Set of network cable adapter
- 1 x Set of coax cable adapter
- 1 x Set of cable clips
- 1 x Storage bag
- 1 x User manual

Note:
- 2pcs 9V alkaline batteries are not included in the package.

Packaging Details:
- G.W.: 0.8kg
