Description:

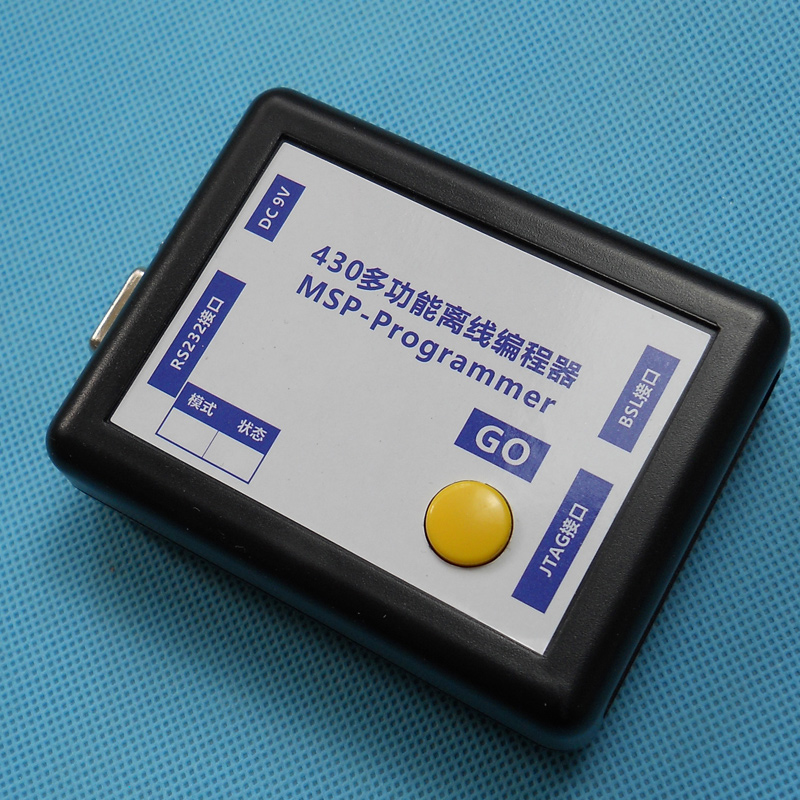

MSP430 multi-function offline programmer is a programmer for the MSP430 FLASH full series of microcontrollers. It can complete the programming of MSP430 series microcontrollers and fuses, and reprogram BSL after the fuses are blown out.

It supports MSP430 F1 series, F2 series, F4 series, F5 series, F6 series, G2 series, FR series, AFE series, CC 430 series, etc.

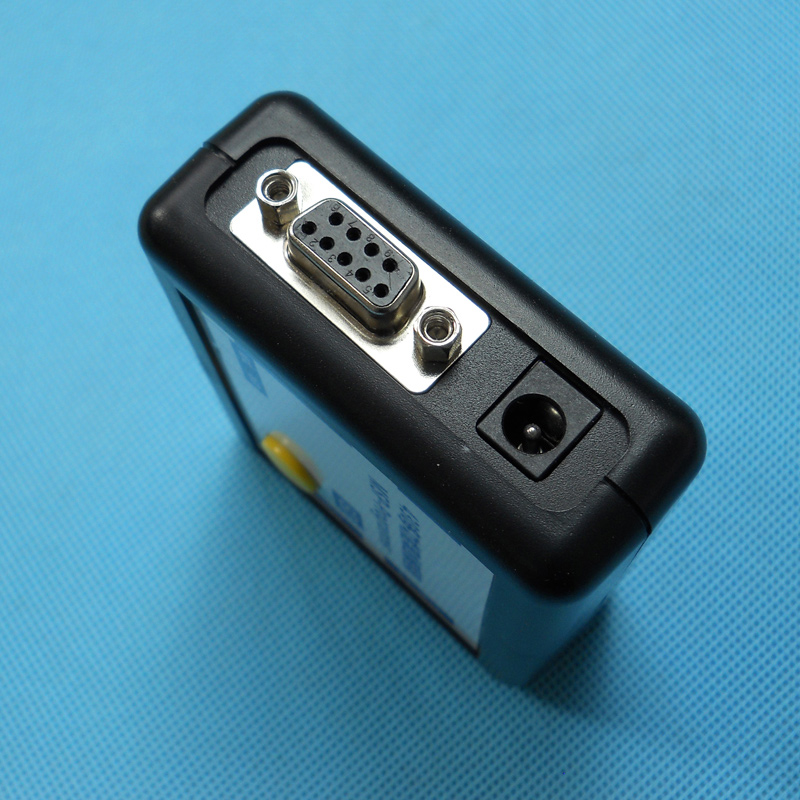

It comes with a 9-pin RS232 interface cable, supporting USB interface and RS232 interface and independent offline work.

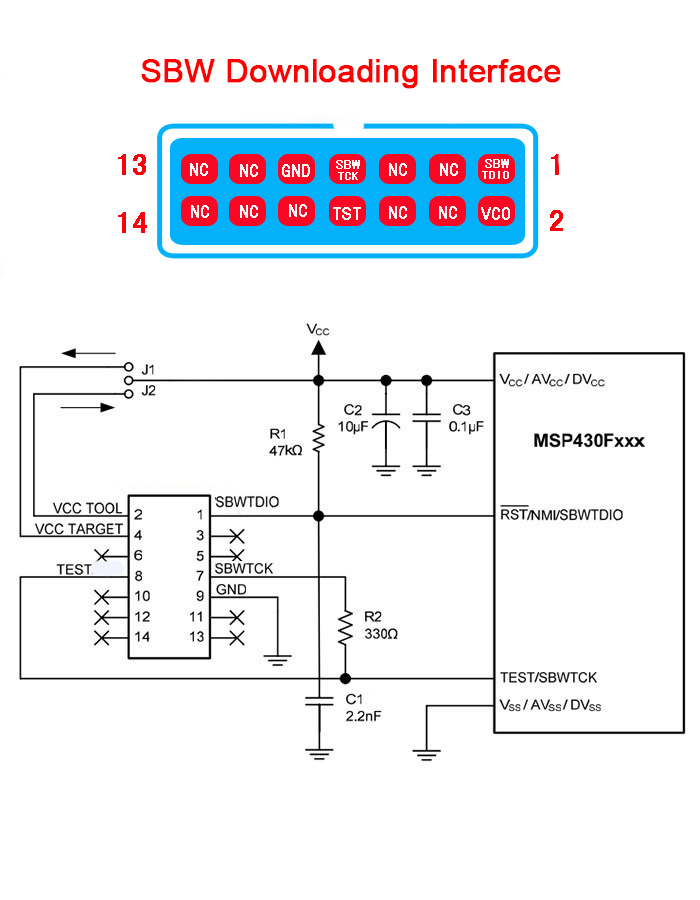

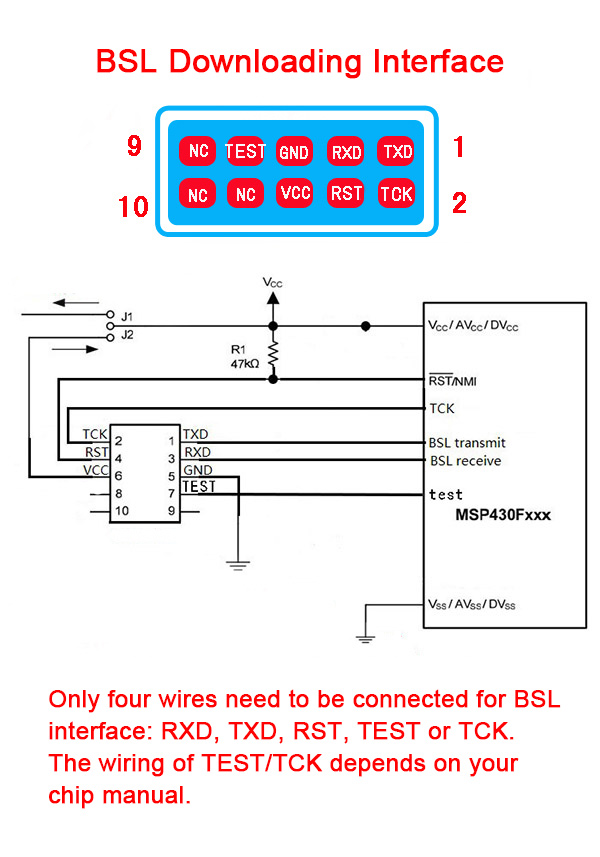

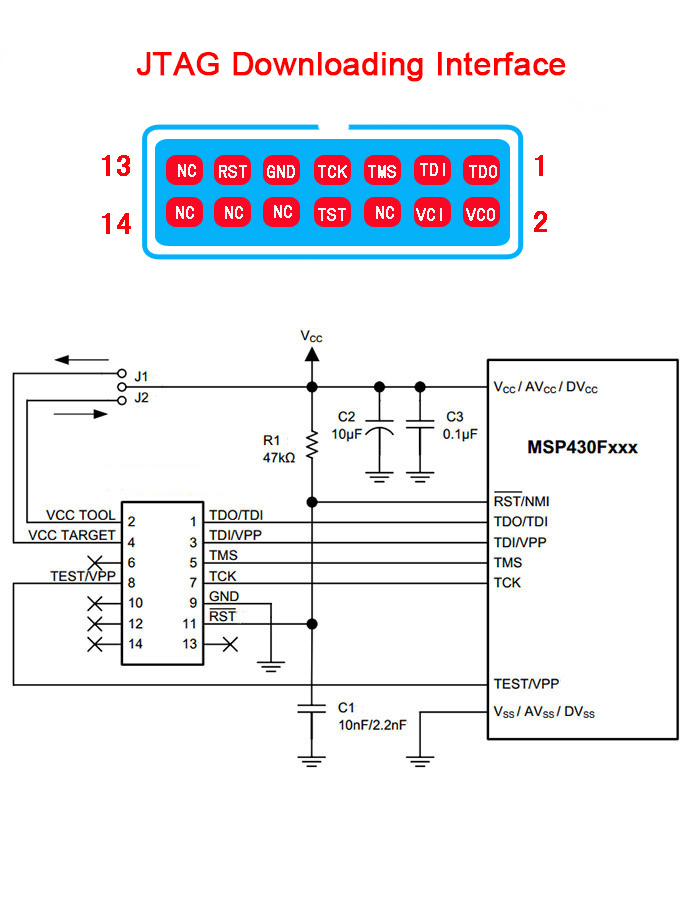

The offline programmer integrates JTAG, BSL, and SBW programming modes. The JTAG programming interface is suitable for program writing and blowing fuses to the chip without the target chip having blown the fuse.

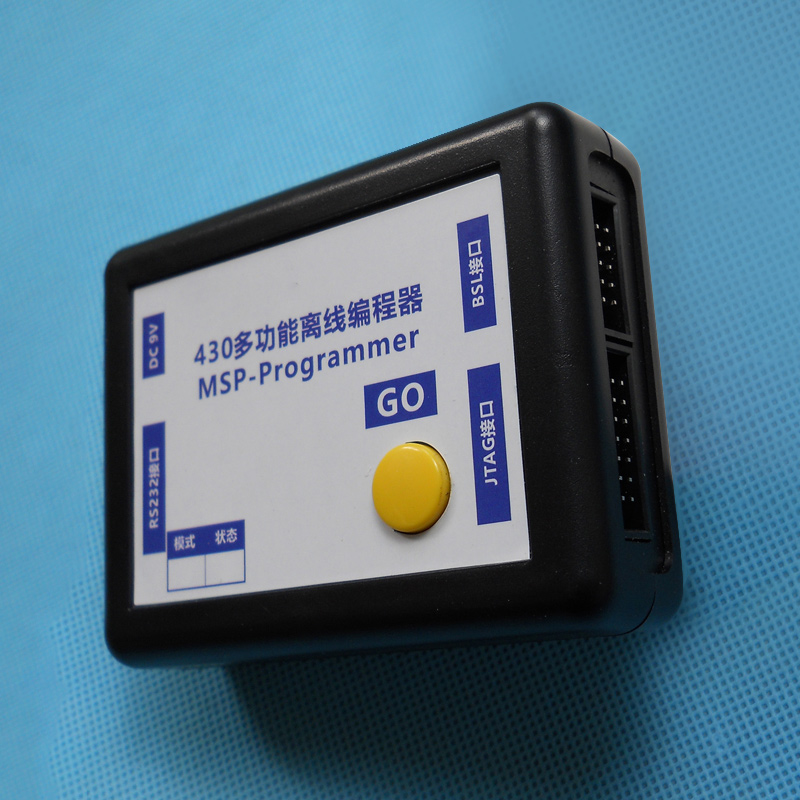

The programmer is designed with buzzer to prompt and LED light indicating status.

Several cables make it easy and flexible to use.

MSP430 programmer downloads and programs for MSP series chips:
Suitable for MSP430F1XX, MSP430F2XX, MSP430F3XX, MSP430F4XX, MSP430F5XX, MSP430F6XX, CC430X5XX, CC430X6XX, MSP430FR2XX, MSP430FR4XX, MSP430FR5XX, MSP430FR6XX, MSP430I2XX, MSP430FE4XX, MSP430FW4XX, MSP430FG4XX, MSP430FG6XX, MSP430AFEXX, MSP430G2XX and other series.

Package Included:
- 1 x Main unit
- 1 x 1.5m/4.9ft male to female serial cable
- 1 x RS232 communication USB to serial cable
- 2 x 14P gray FFC cables
- 1 x 14P color FFC cable
- 1 x 10P gray FFC cable
- 1 x 10P cable for DuPont
- 1 x DC 9V power adapter

Note:
- It is not an original one. It can be used to replace MSP430 programmer for Texas Instruments.
- It is for WIN XP, 7, 8, WIN 10 and 11.
