MSP430 MCU Programmer Original Offline USB Programmer (Standard Version) for Texas Instruments

MSP430 MCU Programmer Original Offline USB Programmer (Standard Version) for Texas Instruments

Product Description:
MSP430 can be used for offline batch programming. It boasts an easy-to-use USB interface and high-quality all-copper button (can be used 300,000 times). One press to download programs.

It is suitable for the mass production of MSP430 MCU. Technical support is provided to facilitate your your production.

As a multi-function programmer, it supports MSP430 target boards and chips with BSL/JTAG/SBW interfaces.

Product Features:
- The USB programmer has been upgraded. It supports USB communications and 5V power supply
- Small design: it is easier to carry. Size: 98 x 52 x 28mm/3.9 x 2 x 1.1" (LxWxH)
- Quality shell and components are used
- Provide technical support
- Military-grade high-quality board, lead-free process and gold-plated PCB substrate are used
- A variety of isolation and USB protection are provided to ensure stable and reliable performance
- Practical functions, follow-up software and hardware upgrade services, users' questions answered

For All MSP Series Chips (including but not limited to):
CC430X5XX, CC430X6XX, MSP430F1XX, MSP430F2XX, MSP430F3XX, MSP430F4XX, MSP430F5XX, MSP430F6XX, MSP430FR2XX, MSP430FR4XX, MSP430FR5XX, MSP430FR6XX, MSP430I2XX, MSP430FE4XX, MSP430FW4XX, MSP430FG4XX, MSP430FG6XX, MSP430G2XX, MSP430AFEXX, etc.

Function Description:
The MSP430 programmer can program MSP430 FLASH full series of MCU chips online or offline through a target board or a user board. With easy-to-use USB interface, it is fully compatible with official standard 14-pin JTAG interface for TI. It supports multiple chips, batch programming, fast programming speed and fuse encryption. It is easy to carry.

Functional Characteristics:
1. Support MSP430 series, CC430 series, FR, G series and other 430 chip series.
2. Support online and offline programming (5V power supply is needed for offline mode and a computer is not used).
3. Support fuse burnout encryption (SBW and JTAG methods are supported to burn fuses).
4. USB communications and power supply. Convenient and easy to use, with good versatility.
5. Support sound prompt and LED status prompt at the same time to visually indicate the download progress.
6. Support firmware upgrade. In the future, we will develop a new version and provide free upgrade service.
7. Programming can be realized via SBW, JTAG and BSL.
8. Small size makes it easy to carry. Good substrate and components are used.

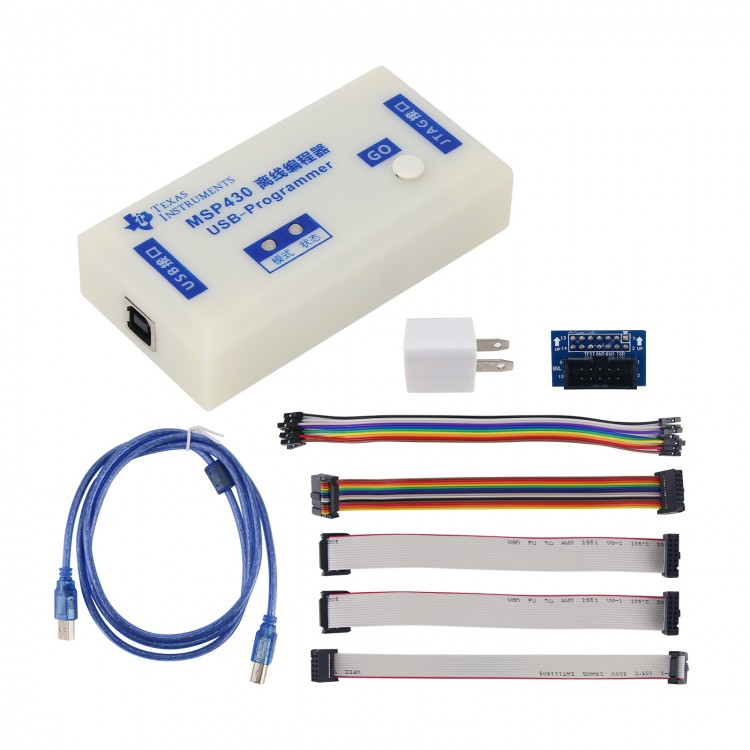

Package Included:
- 1 x Programmer
- 1 x JTAG to BSL Adapter Board

Note:
- Other items pictured are not included, for demonstration purposes only. Thank you for your understanding!

4-Cable Mode:


2-Cable SBW Mode:


BSL Mode:
