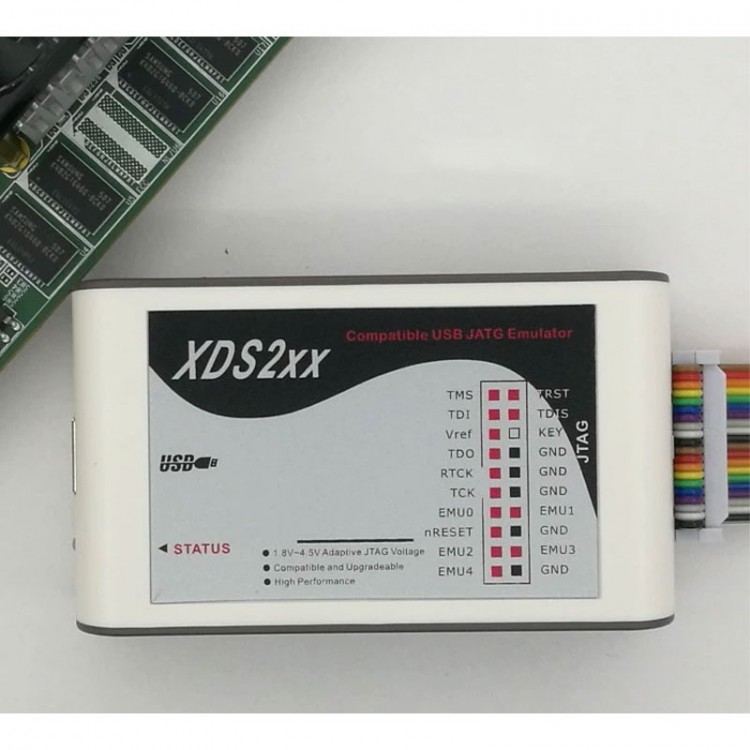

XDS2xx China-Made Emulator Programmer Compatible with XDS200 Original Emulator for Texas Instruments

XDS2xx China-Made Emulator Programmer Compatible with XDS200 Original Emulator for Texas Instruments

Features:
* It is compatible with original XDS200 emulator for TI
* USB2.0 full-speed interface and USB bus provides power supply
* Supports target board IO voltage from 1.5V to 4.5V
* DSP for TI and microprocessors with JTAG/CJTAG interface are supported
* Provides software and hardware break-point capabilities and supports real-time mode
* Provides Embedded Trace Buffer (ETB)
* Provides UniFlash programming for TI
* JTAG Reset and Wait-in-reset boot modes using the two EMU pins sampled by the nTRST pin
* Power-on reset boot-modes using the two EMU pins sampled by the TVD signal
* The EMU signaling capability of the XDS560 Rev D is available
* Even when the CCS is not running, it can still provide target board power-down detection and apply boot mode when CCS boots
* 456MHz solution and higher performance
* PCBA adopts the SMT process
* -5 to 65 cycle temperature ramp-up process. And it can also simulate debugging
* Using TPS multi-channel DCDC power supply scheme, the total current is only 140mA
* Five TPD4E002 ESD protection ICs protect each input/output data cable

Specifications:
* Model number: XDS2xx
* Origin: China mainland
* Simulation voltage: 1.6V
* Simulation frequency: 20MHz
* Supported IDE: for CCS and IAR

Package Included:
* 1 x Emulator
* 1 x USB Data Cable

Ports and Indicator Lights:
* USB interface: Hi-Speed USB 2.0

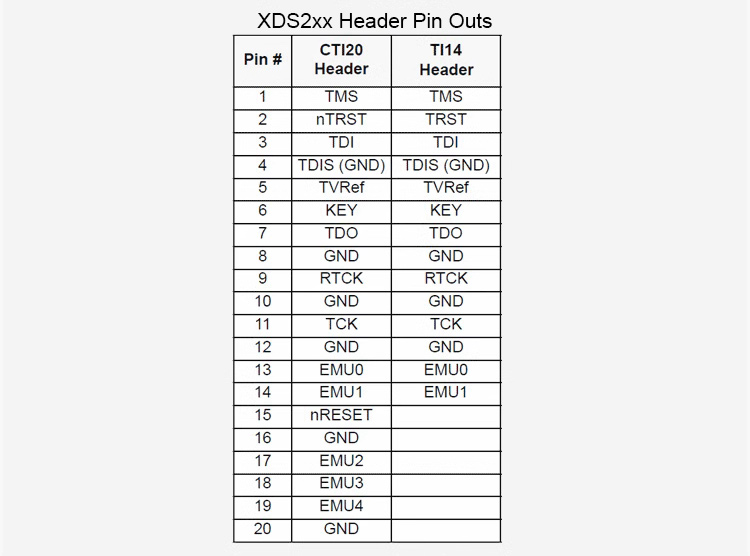

* JTAG/CJTAG interface: TI-14PIN and CTI20 (2.54mm pitch) available
* LED indicator: Red LED on: XDS2xx boot complete, wait for CCS to load the simulation driver; Red LED off: Simulation driver loading completed (after Launch Target configuration); Green LED flashing: Busy status (emulator and target board data exchange status indication)


Supported Chips:
* For C28xxx, C5000, C64x+, C66xx, DaVinci, ARM, Cortex, OMAP3/4/5, OMAPL13x, AM18XX, AM33xx, etc.

Operating Environment:
1. Development environment
* For Code Composer Studio v6 (eclipse) and Code Composer Studio v5 (eclipse) v5.3 and later, or v5.2 with the latest emulation update for TI

2. Compatible operating systems
* For Windows XP/Vista/7/8 (32-bit and 64-bit), Windows 2003 Server (32-bit and 64-bit), Linux (for Ubuntu, Fedora, RedHat, etc.)

FAQ:
Q: Is it compatible with the original one for TI?
A: Yes, it is. The official XDS200 clock speed is 300MHz, while XDS2xx's is 456MHz, performance improved by about 20%.

Q: How does it perform?
A: Its performance is between that of XDS100v2/v3 and XDS560. It supports what XDS100v2/v3 supports. And it outperforms in speed and its performance is close to that of XDS560.

Q: What are its advantages?
A: 1. Inexpensive alternative. 2. Easy to install. 3. Compact, simple and reliable. 4. No need to be replaced for updated DSPs (ongoing support for new DSPs). 5. Increased performance over XDS100.

Q: What chips does it support?
A: It supports newer chips, but does not support some older DSP chips, such as C24xx and C6713. In fact, the best way is to install CCS6.0, create a new File->New-> Target Configuration File, select the option for "Texas Instruments XDS2xx USB Debug Probe", and then look for the chips it supports in the chip list.
