• RealView Enterprise Version ULINK2 Emulator Programmer Debugger Original Firmware MDK4.7 to Upgrade

RealView Enterprise Version ULINK2 Emulator Programmer Debugger Original Firmware MDK4.7 to Upgrade

Availability: In stock, usually dispatched in 1 business day

  • Price:$23.04
  • Price in reward points: 230 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $22.58 $22.12 $21.43 $20.51 Contact US
Quantity:

RealView Enterprise Version ULINK2 Emulator Programmer Debugger Original Firmware MDK4.7 to Upgrade

Last Keil for ARM-MDK4.70 out!

keil.com/download/product/Official download address, simply fill in your details to download, (following upgrade firmware)


Here is the latest list of supported IC:
Link for keil.com/arm/chips.asp

Get ULINK2 see here:
1. The first installation CD in the MDK software, first use ulink2 driver will automatically install ULINK2 drive here: C: KeilARMULINK (keil default installation directory);
2. Ulink2 connected to the computer instantly: COM, RUN led will blink simultaneously bright look;
3. Set the aspect can be seen not understand ULINK2 Manual: C: KeilARMHlpULNK2.chm (keil default installation directory);
4. Ulink2 drive location: C: KeilARMULINK (keil default installation directory);
5. Win7 client files that harmony should use the "Run as administrator" (right mouse button menu you can see) / Operating System permissions should minimize restart the computer before running MDK registration services

SWD, and SWV wiring instructions:
1. Wiring SW mode: SWCLK, SWD, GND, a total of three lines, are indispensable; SWV mode requires increased SWO; (If the download appears: Contents mismatch at: 0800005DH (Flash = FFH Required = 18H)! This error please reset pin is also connected! )

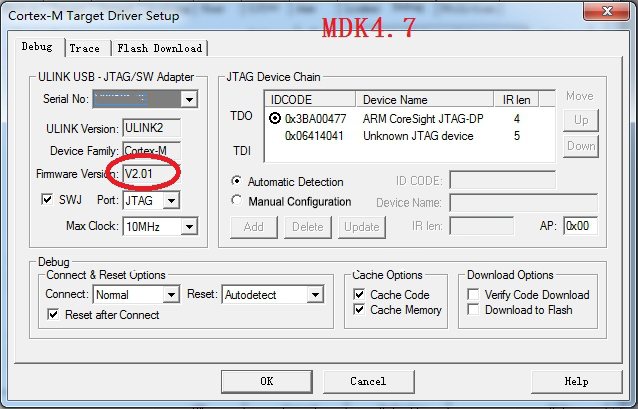

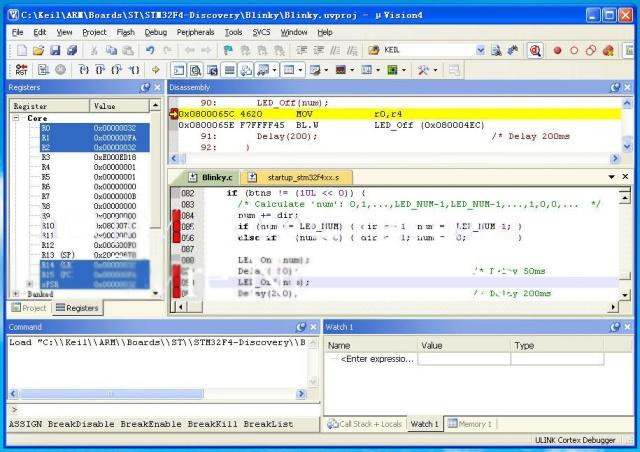

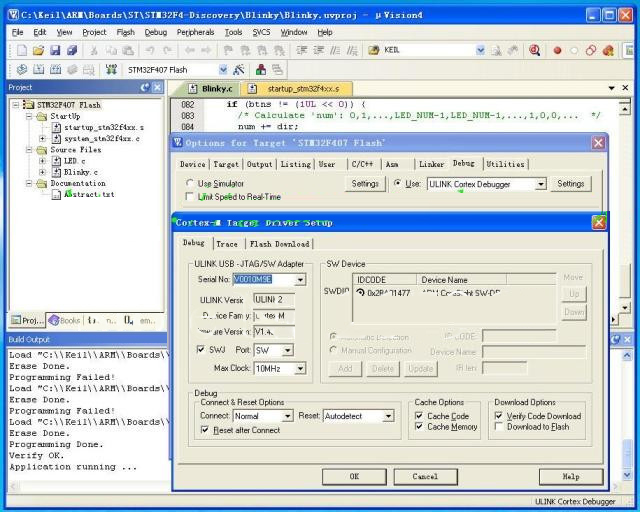

2. ULINK2 for MDK debug Cortex-M4 picture is as follows:



Note:
1. Support MDK3.8a, 4.0x, 4.1x, 4.2x, 4.2x, 4.5x, 4.60,4.70 next upgrade!, And later keil software! Please use MDK3.8a above!
2. If the simulation ARM Cortex-M4 is best to use the latest MDK4.23 (keil for arm) software or later.

Package Included:
- 1 x ULINK2 emulator
- 1 x USB Cable
- 1 x FFC Cable

Description:
ULINK2 is the latest emulator with all the features of an emulator for ARM and adds features such as serial debug (SWD) support, return clock, and real-time proxy. Through this emulator, users can perform on-chip debugging (JTAG, SWD, OCDS) and Flash programming of chips.

ULINK2 New Features:
- ULINK2 standard Windows USB driver support Plug and Play
- Supports for ARM Cortex-M0, 3,4 serial debugging
- Supports reading and writing memory during program execution, terminal emulation, and serial debug output
- Supports 10-pin cable (also supports 20-pin connector)

ULINK2 main functions:
- USB interface high-speed downloading user code
- Storage Area / register View
- Rapid single-step run
- A variety of program breakpoints
- Chip Flash

ULINK2 Technical Specifications:
Link for keil.com/arm/ulink/cmp.asp

Supported Devices Table (constantly increasing):
For Actel (ARM7/ARM9/Cortex Family)
A2F200M3F, A2F500M3G, COREMP7, Cortex-M1

For Analog Devices (ARM7/ARM9/Cortex Family)
ADuC7019, ADuC7020, ADuC7021, ADuC7022, ADuC7023, ADuC7024, ADuC7025, ADuC7026, ADuC7027, ADuC7028, ADuC7030, ADuC7032, ADuC7033, ADuC7034, ADuC7036, ADuC7037, ADuC7038, ADuC7039, ADuC7060, ADuC7061, ADuC7062, ADuC7122, ADuC7128, ADuC7129, ADuC7229

For ARM (ARM7/ARM9/Cortex Family)
Cortex-M0, Cortex-M1 (for Altera), Cortex-M3, Cortex-M4, Cortex-M4 FPU

For Atmel (ARM7/ARM9/Cortex Family)
AT91C140, AT91F40416, AT91F40816, AT91FR40162, AT91FR4042, AT91FR4081, AT91M40400, AT91M40800, AT91M40807, AT91M42800A, AT91M43300, AT91M55800A, AT91M63200, AT91R40008, AT91R40807, AT91RM3400, AT91RM9200, AT91SAM3S1A, AT91SAM3S1B, AT91SAM3S1C, AT91SAM3S2A, AT91SAM3S2B, AT91SAM3S2C, AT91SAM3S4A, AT91SAM3S4B, AT91SAM3S4C, AT91SAM3U1C, AT91SAM3U1E, AT91SAM3U2C, AT91SAM3U2E, AT91SAM3U4C, AT91SAM3U4E, AT91SAM7A1, AT91SAM7A2, AT91SAM7A3, AT91SAM7L128, AT91SAM7L64, AT91SAM7S128, AT91SAM7S16, AT91SAM7S161, AT91SAM7S256, AT91SAM7S32, AT91SAM7S321, AT91SAM7S512, AT91SAM7S64, AT91SAM7SE256, AT91SAM7SE32, AT91SAM7SE512, AT91SAM7X128, AT91SAM7X256, AT91SAM7X512, AT91SAM7XC128, AT91SAM7XC256, AT91SAM7XC512, AT91SAM9260, AT91SAM9261, AT91SAM9261S, AT91SAM9263, AT91SAM9M10, AT91SAM9R64, AT91SAM9RL64, AT91SAM9XE128, AT91SAM9XE256, AT91SAM9XE512, SAM3N1A, SAM3N1B, SAM3N1C, SAM3N2A, SAM3N2B, SAM3N2C, SAM3N4A, SAM3N4B, SAM3N4C, SAM9G10, SAM9G15, SAM9G20, SAM9G35, SAM9G45, SAM9X25

For AustriaMicroSystems (ARM7/ARM9/Cortex Family)
AS3525

For Cirrus Logic (ARM7/ARM9/Cortex Family)
CS740110-IQZ, CS740120-IQZ, CS740130-IQZ

For Ember (ARM7/ARM9/Cortex Family)
EM351, EM357

For Energy Micro (ARM7/ARM9/Cortex Family)
EFM32G200F16, EFM32G200F32, EFM32G200F64, EFM32G210F128, EFM32G222F128, EFM32G222F32, EFM32G222F64, EFM32G230F128, EFM32G230F32, EFM32G230F64, EFM32G232F128, EFM32G232F32, EFM32G232F64, EFM32G280F128, EFM32G280F32, EFM32G280F64, EFM32G290F128, EFM32G290F32, EFM32G290F64, EFM32G840F128, EFM32G840F32, EFM32G840F64, EFM32G842F128, EFM32G842F32, EFM32G842F64, EFM32G880F128, EFM32G880F32, EFM32G880F64, EFM32G890F128, EFM32G890F32, EFM32G890F64, EFM32GG230F1024, EFM32GG230F512, EFM32GG280F1024, EFM32GG280F512, EFM32GG290F1024, EFM32GG290F512, EFM32GG295F1024, EFM32GG295F512, EFM32GG330F1024, EFM32GG330F512, EFM32GG380F1024, EFM32GG380F512, EFM32GG390F1024, EFM32GG390F512, EFM32GG395F1024, EFM32GG395F512, EFM32GG840F1024, EFM32GG840F512, EFM32GG880F1024, EFM32GG880F512, EFM32GG890F1024, EFM32GG890F512, EFM32GG895F1024, EFM32GG895F512, EFM32GG940F1024, EFM32GG940F512, EFM32GG980F1024, EFM32GG980F512, EFM32GG990F1024, EFM32GG990F512, EFM32GG995F1024, EFM32GG995F512, EFM32LG230F128, EFM32LG230F256, EFM32LG230F64, EFM32LG232F128, EFM32LG232F256, EFM32LG232F64, EFM32LG280F128, EFM32LG290F128, EFM32LG290F256, EFM32LG290F64, EFM32LG295F128, EFM32LG295F256, EFM32LG295F64, EFM32LG330F128, EFM32LG330F256, EFM32LG330F64, EFM32LG332F128, EFM32LG332F256, EFM32LG332F64, EFM32LG380F128, EFM32LG380F256, EFM32LG380F64, EFM32LG390F128, EFM32LG390F256, EFM32LG390F64, EFM32LG395F128, EFM32LG395F256, EFM32LG395F64, EFM32LG840F128, EFM32LG840F256, EFM32LG840F64, EFM32LG842F128, EFM32LG842F256, EFM32LG842F64, EFM32LG880F128, EFM32LG880F256, EFM32LG880F64, EFM32LG890F128, EFM32LG890F256, EFM32LG890F64, EFM32LG895F128, EFM32LG895F256, EFM32LG895F64, EFM32LG940F128, EFM32LG940F256, EFM32LG940F64, EFM32LG942F128, EFM32LG942F256, EFM32LG942F64, EFM32LG980F128, EFM32LG980F256, EFM32LG980F64, EFM32LG990F128, EFM32LG990F256, EFM32LG990F64, EFM32LG995F128, EFM32LG995F256, EFM32LG995F64, EFM32TG108F16, EFM32TG108F32, EFM32TG108F4, EFM32TG108F8, EFM32TG110F16, EFM32TG110F32, EFM32TG110F4, EFM32TG110F8, EFM32TG210F16, EFM32TG210F32, EFM32TG210F8, EFM32TG222F16, EFM32TG222F32, EFM32TG222F8, EFM32TG230F16, EFM32TG230F32, EFM32TG230F8, EFM32TG232F16, EFM32TG232F32, EFM32TG232F8, EFM32TG822F16, EFM32TG822F32, EFM32TG822F8, EFM32TG840F16, EFM32TG840F32, EFM32TG840F8, EFM32TG842F16, EFM32TG842F32, EFM32TG842F8

For Freescale Semiconductor (ARM7/ARM9/Cortex Family)
MAC7101, MAC7104, MAC7105, MAC7106, MAC7111, MAC7112, MAC7114, MAC7115, MAC7116, MAC7121, MAC7122, MAC7124, MAC7125, MAC7126, MAC7131, MAC7134, MAC7135, MAC7136, MAC7141, MAC7142, MAC7144, MC9328MX21, MCIMX27, MCIMX27L, MK10DN512xxx10, MK10DX256xxx10, MK10N512VMD100, MK10X128VMD100, MK10X256VMD100, MK20DN512xxx10, MK20DX128xxx10, MK20DX256xxx10, MK20N512VMD100, MK20X128VMD100, MK20X256VMD100, MK30DN512xxx10, MK30DX256xxx10, MK30N512VMD100, MK30X128VMD100, MK30X256VMD100, MK40DN512xxx10, MK40DX256xxx10, MK40N512VMD100, MK40X128VMD100, MK40X256VMD100, MK50N512CMD100, MK51N512CMD100, MK52N512CMD100, MK53DN512xxx10, MK53N512CMD100, MK60DN256xxx10, MK60DN512xxx10, MK60DX256xxx10, MK60N512VMD100, MK60X256VMD100, MK61FN1M0xxx12, MK61FN1M0xxx15, MK61FX512xxx12, MK61FX512xxx15, MK70FN1M0xxx12, MK70FN1M0xxx15, MK70FX512xxx12, MK70FX512xxx15

For Fujitsu Semiconductors (ARM7/ARM9/Cortex Family)
MB9AF102N, MB9AF102R, MB9AF104N, MB9AF104R, MB9AF111L, MB9AF111M, MB9AF111N, MB9AF112L, MB9AF112M, MB9AF112N, MB9AF114L, MB9AF114M, MB9AF114N, MB9AF115M, MB9AF115N, MB9AF116M, MB9AF116N, MB9AF311L, MB9AF311M, MB9AF311N, MB9AF312L, MB9AF312M, MB9AF312N, MB9AF314L, MB9AF314M, MB9AF314N, MB9AF315M, MB9AF315N, MB9AF316M, MB9AF316N, MB9BF104N, MB9BF104R, MB9BF105N, MB9BF105R, MB9BF106N, MB9BF106R, MB9BF304N, MB9BF304R, MB9BF305N, MB9BF305R, MB9BF306N, MB9BF306R, MB9BF404N, MB9BF404R, MB9BF405N, MB9BF405R, MB9BF406N, MB9BF406R, MB9BF504N, MB9BF504R, MB9BF505N, MB9BF505R, MB9BF506N, MB9BF506R

For Holtek (ARM7/ARM9/Cortex Family)
HT32F1251, HT32F1251B, HT32F1252, HT32F1253

For Infineon (8051 Family)
TLE7809, TLE7810, TLE7824, TLE7826, XC822-1F, XC822M-1F, XC822MT-1F, XC822T-0F, XC822T-1F, XC824M-1F, XC824MT-1F, XC835MT-2F, XC836-2F, XC836M-1F, XC836M- 2F, XC836MT-2F, XC836T-2F, XC864-1FRI, XC866-1FR, XC866-2FR, XC866-4FR, XC866L-1FR, XC866L-2FR, XC866L-4FR, XC878-13FF, XC878-16FF, XC878C-13FF, XC878C-16FF, XC878CM-13FF, XC878CM-16FF, XC878L-13FF, XC878L-16FF, XC878M-13FF, XC878M-16FF, XC886-6FF, XC886-8FF, XC886C-6FF, XC886C-8FF, XC886CLM-6FF, XC886CLM- 8FF, XC886CM-6FF, XC886CM-8FF, XC886LM-6FF, XC886LM-8FF, XC888-6FF, XC888-8FF, XC888C-6FF, XC888C-8FF, XC888CLM-6FF, XC888CLM-8FF, XC888CM-6FF, XC888CM-8FF, XC888LM-6FF, XC888LM-8FF
For Infineon (C16x/ST10/XC16x Family) latest support list see here: link for keil.com/c166/chips.asp
XC161CJ-16F, XC161CS-32F, XC164CM-16F, XC164CM-4F, XC164CM-8F, XC164CS-16F, XC164CS-16R, XC164CS-32F, XC164CS-32R, XC164CS-8F, XC164CS-8R, XC164D-16F, XC164D- 32F, XC164D-8F, XC164GM-16F, XC164GM-4F, XC164GM-8F, XC164KM-4F, XC164KM-8F, XC164LM-4F, XC164LM-8F, XC164N-16F, XC164N-32F, XC164N-8F, XC164S-16F, XC164S-32F, XC164S-8F, XC164SM-4F, XC164SM-8F, XC164TM-4F, XC164TM-8F, XC167CI-16F, XC167CI-32F, XC2210U-4F, XC2210U-8F, XC2220L-12F, XC2220L-20F, XC2220U- 4F, XC2220U-8F, XC2224L-12F, XC2224L-20F, XC2230L-12F, XC2230L-20F, XC2232N-24F, XC2232N-40F, XC2234L-12F, XC2234L-20F, XC2234N-16F, XC2234N-24F, XC2234N-40F, XC2236N-16F, XC2236N-24F, XC2236N-40F, XC2237M-104F, XC2237M-56F, XC2237M-72F, XC2238N-24F, XC2238N-40F, XC2261N-24F, XC2263M-104F, XC2263M-56F, XC2263M-72F, XC2263N- 16F, XC2263N-24F, XC2263N-40F, XC2264-56F, XC2264-72F, XC2264-96F, XC2264N-16F, XC2264N-40F, XC2265M-104F, XC2265M-56F, XC2265M-72F, XC2265N-24F, XC2265N-40F, XC2267-56F, XC2267-72F, XC2267-96F, XC2267M-104F, XC2267M-56F, XC2267M-72F, XC2268I-136F, XC2268N-24F, XC2268N-40F, XC2269I-136F, XC2285-56F, XC2285-72F, XC2285- 96F, XC2285M-104F, XC2285M-56F, XC2285M-72F, XC2286-56F, XC2286-72F, XC2286-96F, XC2287-56F, XC2287-72F, XC2287-96F, XC2287M-104F, XC2287M-56F, XC2287M-72F, XC2288H-136F, XC2288H-200F, XC2288I-136F, XC2289H-136F, XC2289H-200F, XC2289I-136F, XC2298H-136F, XC2298H-200F, XC2299H-136F, XC2299H-200F, XC2310S-4F, XC2310S-8F, XC2320D- 12F, XC2320D-20F, XC2320S-4F, XC2320S-8F, XC2321D-12F, XC2321D-20F, XC2330D-12F, XC2331D-12F, XC2331D-20F, XC2336A-56F, XC2336A-72F, XC2336B-24F, XC2336B-40F, XC2338B-24F, XC2338B-40F, XC2361A-56F, XC2361A-56F, XC2361A-72F, XC2361B-40F, XC2361E-104F, XC2361E-136F, XC2363A-56F, XC2363A-72F, XC2364A-104F, XC2364A-56F, XC2364A- 72F, XC2364B-24F, XC2364B-40F, XC2365-48F, XC2365-56F, XC2365-72F, XC2365A-104F, XC2365A-56F, XC2365A-72F, XC2365B-40F, XC2365E-136F, XC2368E-104F, XC2368E-136F, XC2387-72F, XC2387A-104F, XC2387A-56F, XC2387A-72F, XC2387C-136F, XC2388C-136F, XC2388C-200F, XC2388E-104F, XC2388E-136F, XC2712X-8F, XC2722X-8F, XC2723X-20F, XC2733X- 20F, XC2734X-32F, XC2734X-40F, XC2764X-32F, XC2764X-40F, XC2765X-104F, XC2765X-72F, XC2765X-96F, XC2766X-96F, XC2768X-104F, XC2768X-136F, XC2785X-104F, XC2785X-72F, XC2786X-96F, XC2787X-136F, XC2787X-200F, XC2788X-104F, XC2788X-136F, XC2797X-136F, XC2797X-200F, XE162FM-24F, XE162FM-48F, XE162FM-72F, XE162FN-16F, XE162FN-24F, XE162FN- 40F, XE162HM-24F, XE162HM-48F, XE162HM-72F, XE162HN-16F, XE162HN-24F, XE162HN-40F, XE164F-24F, XE164F-48F, XE164F-72F, XE164F-96F, XE164FM-24F, XE164FM-48F, XE164FM-72F, XE164FN-16F, XE164FN-24F, XE164FN-40F, XE164G-24F, XE164G-48F, XE164G-72F, XE164G-96F, XE164GM-24F, XE164GM-48F, XE164GM-72F, XE164GN-16F, XE164GN- 24F, XE164GN-40F, XE164H-24F, XE164H-48F, XE164H-72F, XE164H-96F, XE164HM-24F, XE164HM-48F, XE164HM-72F, XE164HN-16F, XE164HN-24F, XE164HN-40F, XE164K-24F, XE164K-48F, XE164K-72F, XE164K-96F, XE164KM-24F, XE164KM-48F, XE164KM-72F, XE164KN-16F, XE164KN-24F, XE164KN-40F, XE167F-48F, XE167F-72F, XE167F-96F, XE167FH- 136F, XE167FH-200F, XE167FM-48F, XE167FM-72F, XE167G-48F, XE167G-48F, XE167G-72F, XE167G-96F, XE167GM-48F, XE167GM-72F, XE167H-48F, XE167H-72F, XE167H-96F, XE167HM-48F, XE167HM-72F, XE167K-48F, XE167K-72F, XE167K-96F, XE167KM-48F, XE167KM-72F, XE169FH-136F, XE169FH-200F

For Lapis Semiconductor (ARM7/ARM9/Cortex Family)
ML674000, ML674001, ML674002, ML674003, ML675001, ML675002, ML675003, ML675011, ML67Q4050, ML67Q4051, ML67Q4060, ML67Q4061, ML67Q5250, ML67Q5260, ML696201, ML69Q6203

For Luminary Micro (ARM7/ARM9/Cortex Family)
moved to platform for Texas Instruments

For Nuvoton (ARM7/ARM9/Cortex Family)
M0516LAN, M0516ZAN, M052LAN, M052ZAN, M054LAN, M054ZAN, M058LAN, M058ZAN, MINI51LAN, MINI51ZAN, MINI52LAN, MINI52ZAN, MINI54LAN, MINI54ZAN, NUC100LC1AN, NUC100LD1AN, NUC100LD2AN, NUC100LD3AN, NUC100LE3AN, NUC100RC1AN, NUC100RD1AN, NUC100RD2AN, NUC100RD3AN, NUC100RE3AN, NUC100VD2AN, NUC100VD3AN, NUC100VE3AN, NUC101LC1AN, NUC101LD2AN, NUC101LE3AN, NUC101RC1AN, NUC101RD2AN, NUC101RE3AN, NUC101VC1AN, NUC101VD2AN, NUC101VE3AN, NUC120LC1AN, NUC120LD1AN, NUC120LD2AN, NUC120LD3AN, NUC120LE3AN, NUC120RC1AN, NUC120RD1AN, NUC120RD2AN, NUC120RD3AN, NUC120RE3AN, NUC120VD2AN, NUC120VD3AN, NUC120VE3AN, NUC122LC1AN, NUC122LD2AN, NUC122SC1AN, NUC122SD2AN, NUC122ZC1AN, NUC122ZD2AN, NUC130LD2AN, NUC130LD3AN, NUC130LE3AN, NUC130RD2AN, NUC130RD3AN, NUC130RE3AN, NUC130VD2AN, NUC130VD3AN, NUC130VE3AN, NUC140LD2AN, NUC140LD3AN, NUC140LE3AN, NUC140RD2AN, NUC140RD3AN, NUC140RE3AN, NUC140VD2AN, NUC140VD3AN, NUC140VE3AN, NUC710, NUC740, NUC745

For NXP (founded by Philips) (8051 Family)
P89LPC952, P89LPC954

For NXP (founded by Philips) (ARM7/ARM9/Cortex Family)
LH75400, LH75401, LH75410, LH75411, LH79520, LH79524, LH79525, LH7A400, LH7A404, LPC1102UK, LPC1111/101, LPC1111/102, LPC1111/201, LPC1111/202, LPC1112/101, LPC1112/102, LPC1112/201, LPC1112 / 202, LPC1113/201, LPC1113/202, LPC1113/301, LPC1113/302, LPC1114/201, LPC1114/202, LPC1114/301, LPC1114/302, LPC11C12/301, LPC11C14/301, LPC11C22/301, LPC11C24/301, LPC11D14/302, LPC11U12/201, LPC11U13/201, LPC11U14/201, LPC1224/101, LPC1224/121, LPC1225/301, LPC1225/321, LPC1226/301, LPC1227/301, LPC12D27/301, LPC1311, LPC1311/01, LPC1313, LPC1313/01, LPC1342, LPC1343, LPC1751, LPC1752, LPC1754, LPC1756, LPC1758, LPC1759, LPC1763, LPC1764, LPC1765, LPC1766, LPC1767, LPC1768, LPC1769, LPC1774, LPC1776, LPC1777, LPC1778, LPC1785, LPC1786, LPC1787, LPC1788, LPC1810, LPC1820, LPC1830, LPC1850, LPC2101, LPC2102, LPC2103, LPC2104, LPC2104/01, LPC2105, LPC2105/01, LPC2106, LPC2106/01, LPC2109, LPC2109/01, LPC2114, LPC2114/01, LPC2119, LPC2119 / 01, LPC2124, LPC2124/01, LPC2129, LPC2129/01, LPC2131, LPC2131/01, LPC2132, LPC2132/01, LPC2134, LPC2134/01, LPC2136, LPC2136/01, LPC2138, LPC2138/01, LPC2141, LPC2142, LPC2144, LPC2146, LPC2148, LPC2194, LPC2194/01, LPC2210, LPC2210/01, LPC2212, LPC2212/01, LPC2214, LPC2214/01, LPC2220, LPC2290, LPC2290/01, LPC2292, LPC2292/01, LPC2294, LPC2294/01, LPC2361, LPC2362, LPC2364, LPC2365, LPC2366, LPC2367, LPC2368, LPC2377, LPC2378, LPC2387, LPC2388, LPC2420, LPC2458, LPC2460, LPC2468, LPC2470, LPC2478, LPC2880, LPC2888, LPC2917, LPC2917/01, LPC2919, LPC2919/01, LPC2921, LPC2923, LPC2925, LPC2926, LPC2927, LPC2929, LPC2930, LPC2939, LPC3130, LPC3131, LPC3141, LPC3143, LPC3152, LPC3154, LPC3180, LPC3220, LPC3230, LPC3240, LPC3250, SJA2010

For ROHM (ARM7/ARM9/Cortex Family)
BU1511KV2

For Samsung (ARM7/ARM9/Cortex Family)
S3C2410A, S3C2440A, S3C44B0X, S3C4510B, S3F4A0KR, S3F4A1HR, S3F4A2FR, S3FM02G

For Socle Technology Corp. (ARM7/ARM9/Cortex Family)
PC7130, PC7230

For STMicroelectronics (8051 Family)
uPSD3212A, uPSD3212C, uPSD3212CV, uPSD3233B, uPSD3233BV, uPSD3234A, uPSD3234BV, uPSD3253B, uPSD3253BV, uPSD3254A, uPSD3254BV, uPSD3312D, uPSD3312DV, uPSD3333D, uPSD3333DV, uPSD3334D, uPSD3334DV, uPSD3354D, uPSD3354DV, uPSD3422E, uPSD3422EV, uPSD3433E, uPSD3433EV, uPSD3434E, uPSD3434EV, uPSD3454E, uPSD3454EV

For STMicroelectronics (ARM7/ARM9/Cortex Family)
STA2051, STM32F100C4, STM32F100C6, STM32F100C8, STM32F100CB, STM32F100R4, STM32F100R6, STM32F100R8, STM32F100RB, STM32F100RC, STM32F100RD, STM32F100RE, STM32F100V8, STM32F100VB, STM32F100VC, STM32F100VD, STM32F100VE, STM32F100ZC, STM32F100ZD, STM32F100ZE, STM32F101C4, STM32F101C6, STM32F101C8, STM32F101CB, STM32F101R4, STM32F101R6, STM32F101R8, STM32F101RB, STM32F101RC, STM32F101RD, STM32F101RE, STM32F101RF, STM32F101RG, STM32F101T4, STM32F101T6, STM32F101T8, STM32F101TB, STM32F101V8, STM32F101VB, STM32F101VC, STM32F101VD, STM32F101VE, STM32F101VF, STM32F101VG, STM32F101ZC, STM32F101ZD, STM32F101ZE, STM32F101ZF, STM32F101ZG, STM32F102C4, STM32F102C6, STM32F102C8, STM32F102CB, STM32F102R4, STM32F102R6, STM32F102R8, STM32F102RB, STM32F103C4, STM32F103C6, STM32F103C8, STM32F103CB, STM32F103R4, STM32F103R6, STM32F103R8, STM32F103RB, STM32F103RC, STM32F103RD, STM32F103RE, STM32F103RF, STM32F103RG, STM32F103T4, STM32F103T6, STM32F103T8, STM32F103TB, STM32F103V8, STM32F103VB, STM32F103VC, STM32F103VD, STM32F103VE, STM32F103VF, STM32F103VG, STM32F103ZC, STM32F103ZD, STM32F103ZE, STM32F103ZF, STM32F103ZG, STM32F105R8, STM32F105RB, STM32F105RC, STM32F105V8, STM32F105VB, STM32F105VC, STM32F107RB, STM32F107RC, STM32F107VB, STM32F107VC, STM32F205RB, STM32F205RC, STM32F205RE, STM32F205RF, STM32F205RG, STM32F205VB, STM32F205VC, STM32F205VE, STM32F205VF, STM32F205VG, STM32F205ZC, STM32F205ZE, STM32F205ZF, STM32F205ZG, STM32F207IC, STM32F207IE, STM32F207IF, STM32F207IG, STM32F207VC, STM32F207VE, STM32F207VF, STM32F207VG, STM32F207ZC, STM32F207ZE, STM32F207ZF, STM32F207ZG, STM32F215RE, STM32F215RG, STM32F215VE, STM32F215VG, STM32F215ZE, STM32F215ZG, STM32F217IE, STM32F217IG, STM32F217VE, STM32F217VG, STM32F217ZE, STM32F217ZG, STM32F405RG, STM32F405VG, STM32F405ZG, STM32F407IE, STM32F407IG, STM32F407VE, STM32F407VG, STM32F407ZE, STM32F407ZG, STM32F415RG, STM32F415VG, STM32F415ZG, STM32F417IE, STM32F417IG, STM32F417VE, STM32F417VG, STM32F417ZE, STM32F417ZG, STM32L151C8, STM32L151CB, STM32L151R8, STM32L151RB, STM32L151V8, STM32L151VB, STM32L152C8, STM32L152CB, STM32L152R8, STM32L152RB, STM32L152V8, STM32L152VB, STR710FZ1, STR710FZ2, STR711FR0, STR711FR1, STR711FR2, STR712FR0, STR712FR1, STR712FR2, STR715FR0, STR730FZ1, STR730FZ2, STR731FV0, STR731FV1, STR731FV2, STR735FZ1, STR735FZ2, STR736FV0, STR736FV1, STR750FL2, STR750FV0, STR750FV1, STR750FV2, STR751FR0, STR751FR1, STR751FR2, STR752FR0, STR752FR1, STR752FR2, STR755FR0, STR755FR1, STR755FR2, STR755FV0, STR755FV1, STR755FV2, STR910FAM32, STR910FAW32, STR910FAZ32, STR910FM32, STR910FW32, STR911FAM42, STR911FAM44, STR911FAM46, STR911FAM47, STR911FAW42, STR911FAW44, STR911FAW46, STR911FAW47, STR911FM42, STR911FM44, STR912FAW42, STR912FAW44, STR912FAW46, STR912FAW47, STR912FAZ42, STR912FAZ44, STR912FAZ46, STR912FAZ47, STR912FW42, STR912FW44

For Texas Instruments (ARM7/ARM9/Cortex Family)
LM3S101, LM3S102, LM3S1110, LM3S1133, LM3S1138, LM3S1150, LM3S1162, LM3S1165, LM3S1166, LM3S1332, LM3S1435, LM3S1439, LM3S1512, LM3S1538, LM3S1601, LM3S1607, LM3S1608, LM3S1620, LM3S1621, LM3S1625, LM3S1626, LM3S1627, LM3S1635, LM3S1636, LM3S1637, LM3S1651, LM3S1751, LM3S1776, LM3S1811, LM3S1816, LM3S1850, LM3S1911, LM3S1918, LM3S1937, LM3S1958, LM3S1960, LM3S1968, LM3S1969, LM3S1B21, LM3S1C21, LM3S1C26, LM3S1C58, LM3S1D21, LM3S1D26, LM3S1F11, LM3S1F16, LM3S1G21, LM3S1G58, LM3S1H11, LM3S1H16, LM3S1J11, LM3S1J16, LM3S1N11, LM3S1N16, LM3S1P51, LM3S1R21, LM3S1R26, LM3S1W16, LM3S1Z16, LM3S2110, LM3S2139, LM3S2276, LM3S2410, LM3S2412, LM3S2432, LM3S2533, LM3S2601, LM3S2608, LM3S2616, LM3S2620, LM3S2637, LM3S2651, LM3S2671, LM3S2678, LM3S2730, LM3S2739, LM3S2776, LM3S2793, LM3S2911, LM3S2918, LM3S2919, LM3S2939, LM3S2948, LM3S2950, LM3S2965, LM3S2B93, LM3S2D93, LM3S2U93, LM3S300, LM3S301, LM3S308, LM3S310, LM3S315, LM3S316, LM3S317, LM3S328, LM3S3634, LM3S3651, LM3S3654, LM3S3739, LM3S3748, LM3S3749, LM3S3826, LM3S3J26, LM3S3N26, LM3S3W26, LM3S3Z26, LM3S5632, LM3S5651, LM3S5652, LM3S5656, LM3S5662, LM3S5732, LM3S5737, LM3S5739, LM3S5747, LM3S5749, LM3S5752, LM3S5762, LM3S5791, LM3S5951, LM3S5956, LM3S5B91, LM3S5C31, LM3S5C36, LM3S5C51, LM3S5C56, LM3S5D51, LM3S5D56, LM3S5D91, LM3S5G31, LM3S5G36, LM3S5G51, LM3S5G56, LM3S5K31, LM3S5K36, LM3S5P31, LM3S5P36, LM3S5P3B, LM3S5P51, LM3S5P56, LM3S5R31, LM3S5R36, LM3S5T36, LM3S5U91, LM3S5Y36, LM3S600, LM3S601, LM3S608, LM3S610, LM3S6100, LM3S611, LM3S6110, LM3S612, LM3S613, LM3S615, LM3S617, LM3S618, LM3S628, LM3S6420, LM3S6422, LM3S6432, LM3S6537, LM3S6610, LM3S6611, LM3S6618, LM3S6633, LM3S6637, LM3S6730, LM3S6753, LM3S6911, LM3S6918, LM3S6938, LM3S6950, LM3S6952, LM3S6965, LM3S6C11, LM3S6C65, LM3S6G11, LM3S6G65, LM3S800, LM3S801, LM3S808, LM3S811, LM3S812, LM3S815, LM3S817, LM3S818, LM3S828, LM3S8530, LM3S8538, LM3S8630, LM3S8730, LM3S8733, LM3S8738, LM3S8930, LM3S8933, LM3S8938, LM3S8962, LM3S8970, LM3S8971, LM3S8C62, LM3S8G62, LM3S9781, LM3S9790, LM3S9792, LM3S9971, LM3S9997, LM3S9B81, LM3S9B90, LM3S9B92, LM3S9B95, LM3S9B96, LM3S9BN2, LM3S9BN5, LM3S9BN6, LM3S9C97, LM3S9CN5, LM3S9D81, LM3S9D90, LM3S9D92, LM3S9D95, LM3S9D96, LM3S9DN5, LM3S9DN6, LM3S9G97, LM3S9GN5, LM3S9L71, LM3S9L97, LM3S9U81, LM3S9U90, LM3S9U92, LM3S9U95, LM3S9U96, LM4F110B2QR, LM4F110C4QR, LM4F110E5QR, LM4F110H5QR, LM4F111B2QR, LM4F111C4QR, LM4F111E5QR, LM4F111H5QR, LM4F112C4QC, LM4F112E5QC, LM4F112H5QC, LM4F112H5QD, LM4F120B2QR, LM4F120C4QR, LM4F120E5QR, LM4F120H5QR, LM4F121B2QR, LM4F121C4QR, LM4F121E5QR, LM4F121H5QR, LM4F122C4QC, LM4F122E5QC, LM4F122H5QC, LM4F122H5QD, LM4F130C4QR, LM4F130E5QR, LM4F130H5QR, LM4F131C4QR, LM4F131E5QR, LM4F131H5QR, LM4F132C4QC, LM4F132E5QC, LM4F132H5QC, LM4F132H5QD, LM4F230E5QR, LM4F230H5QR, LM4F231E5QR, LM4F231H5QR, LM4F232E5QC, LM4F232H5QC, LM4F232H5QD, RM48L530, RM48L540, RM48L550, RM48L730, RM48L740, RM48L750, RM48L930, RM48L940, RM48L950, TMS470R1A128, TMS470R1A256, TMS470R1A288, TMS470R1A384, TMS470R1A64, TMS470R1B1M, TMS470R1B512, TMS470R1B768, TMS570LS2124, TMS570LS2125, TMS570LS2134, TMS570LS3134, TMS570LS3135, TMS570LS3137

For Toshiba (ARM7/ARM9/Cortex Family)
TMPA900CMXBG, TMPA910CRAXBG, TMPM321F10FG, TMPM324F10FG, TMPM330FDFG, TMPM330FWFG, TMPM330FYFG, TMPM332FWUG, TMPM333FDFG, TMPM333FWFG, TMPM333FYFG, TMPM341FDXBG, TMPM341FYXBG, TMPM360F20FG, TMPM361F10FG, TMPM362F10FG, TMPM363F10FG, TMPM364F10FG, TMPM369FDFG, TMPM369FYFG, TMPM370FYDFG, TMPM370FYFG, TMPM372FWUG, TMPM373FWDUG, TMPM374FWUG, TMPM380FWDFG, TMPM380FWFG, TMPM380FYDFG, TMPM380FYFG, TMPM382FSFG, TMPM382FWFG, TMPM390FWFG, TMPM395FWAXBG

For Zilog (ARM7/ARM9/Cortex Family)
ZA9L
