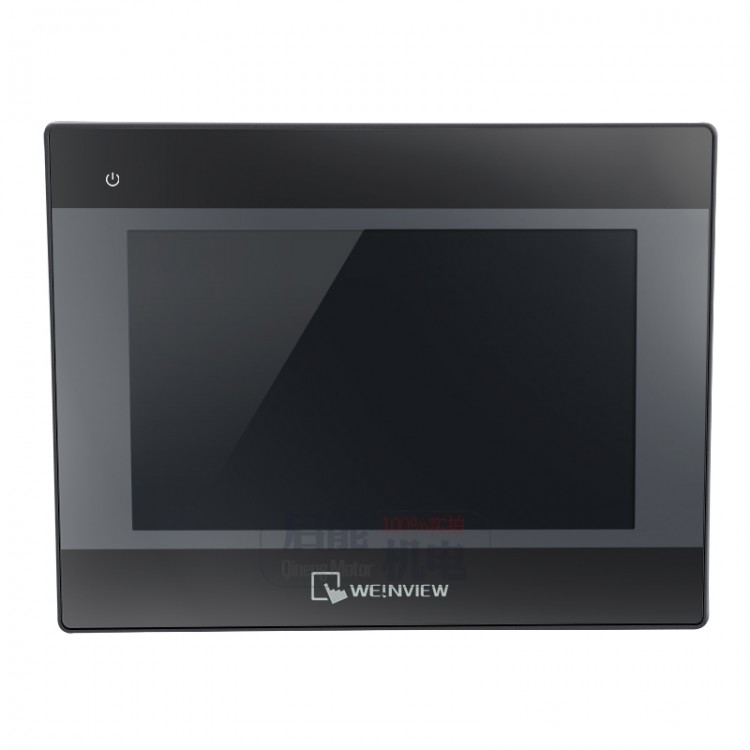

MT8071IP HMI Touch Screen 7" TFT LCD Display Resolution 800 x 480 For Industrial Automation & Control

MT8071IP HMI Touch Screen 7" TFT LCD Display Resolution 800 x 480 For Industrial Automation & Control

Features:
- Wide input voltage range 10.5~28VDC
- The new choice brings you a different user experience.
- Compact MT(iP) series is fully upgraded to meet users' various applications and needs.
- Equipped with upgraded 600 MHz CPU processor for Cortex A8
- For seamlessly upgrading from EB8000 to EasyBuilder Pro

Display:
- Display: 7" TFT LCD
- Resolution: 800 x 480
- Brightness (cd per meters): 300
- Contrast Ratio: 500:1
- Backlight Type: LED
- Backlight Life Time: >30,000 hrs.
- Colors: 16M
- LCD Viewing Angle (T/B/L/R): 70/50/70/70

Touch Panel:
- Type: 4-wire Resistive Type
- Accuracy: Active Area Length(X)±2%, Width(Y)±2%

Memory:
- Flash: 128 MB
- RAM: 128 MB

Processor:
- For 32 bits RISC Cortex-A8 600MHz

I/O Port:
- USB Host: USB 2.0 x 1
- USB Client: N/A
- Ethernet: 10/100 Base-T x 1
- Serial Port: COM1: RS-232; COM2: RS-485 2W/4W
- RS-485 Dual Isolation: N/A
- CAN Bus: N/A

RTC:
- Built-in

Power Supply:
- Input Power Supply: 10.5-28 VDC
- Power Consumption: 1A@12VDC ; 500mA@24VDC
- Power Supply Isolation: Built-in
- Voltage Resistance: 500VAC (1 min.)
- Isolation Resistance: Exceed 50MΩ at 500VDC
- Vibration Endurance: 10 to 25Hz (X, Y, Z direction 2G 30 minutes)

Specifications:
- PCB Coating: None
- Enclosure: Plastic

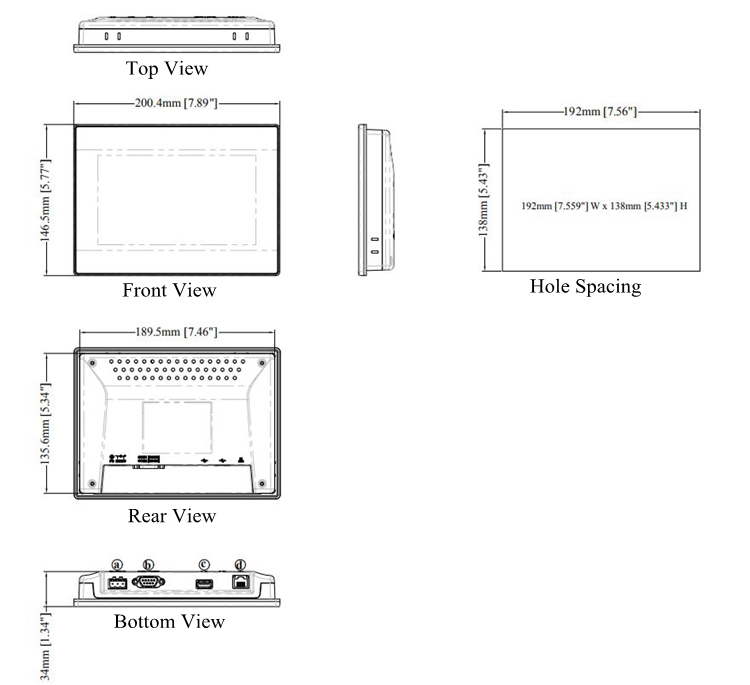

- Dimensions: 200.4 x 146.5 x 34 mm
- Hole Spacing: 192 x 138 mm
- Weight: Approx. 0.52 kg
- Mount: Panel mount

Operating Environment:
- Protection Level: NEMA4 / IP65 Compliant Front Panel
- Storage Temperature: -20℃ to 60℃ (-4℉ to 140℉)
- Operating Temperature: 0℃ to 50℃ (32℉ to 122℉)
- Relative Humidity: 10% ~ 90% (non-condensing)

Certificate:
- CE marked

Software:
- For EasyBuilder Pro

Package Included:
- 1 x Set of Touch Screen
