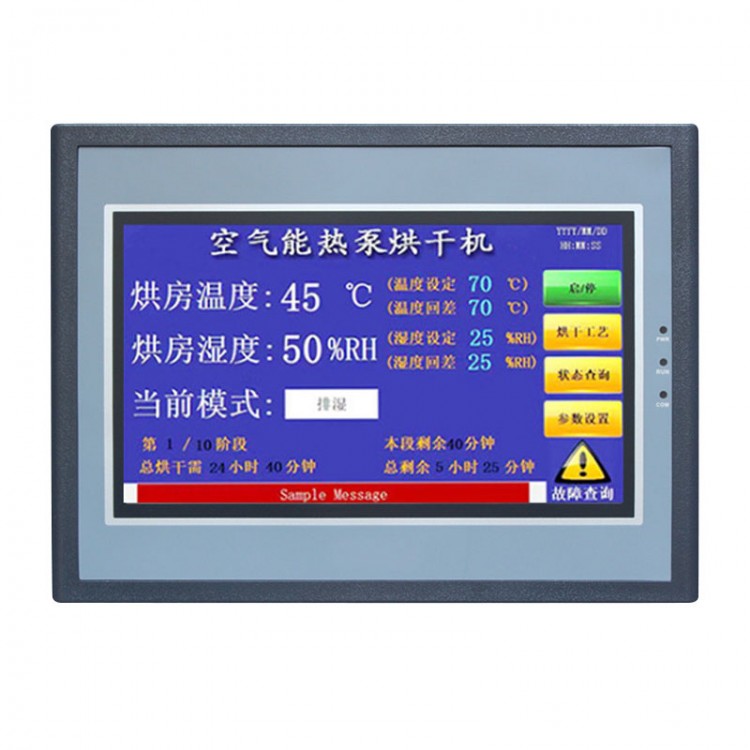

7 Inch HMI Display Resistive Touch Screen (Dual Serial Port) for Industrial Automation Equipment

7 Inch HMI Display Resistive Touch Screen (Dual Serial Port) for Industrial Automation Equipment

Description:
7" industrial grade resistive touch screen is suitable for industrial automation equipment (intelligent control display terminal). It supports a variety of controller communication protocols. It can adapt to various PLCs, inverters, servo controllers, MCU control systems, etc., (supporting major PLCs such as for Mitsubishi, Panasonic, Omron, Delta, Xinjie, FATEK, Siemens, Keyence and LG). When it is operating, users only need to select and call directly on its software.

Features:
- Sensitive and quick to touch
- HD LCD screen
- The configuration software of the host computer is simple
- Built-in RTC clock
- Support power-down data saving
- Power supply with over-voltage protection
- Serial communication port and a variety of communication protocols are supported. Single/dual serial port for you to choose (COM1: RS232/RS485/RS422. COM2: RS232 or RS485)
- Panel with protection design can effectively prevent dust and water droplets from invading the inside of the display (front panel waterproof IP65 and back cover dustproof IP20)
- Working environment: it is suitable for high and low temperature environment. With good high and low temperature resistance, it can operate stably in the harsh environment of temperature difference. The product has passed the tests in high and low temperature environment (-20 °C and 55 °C).
- Precise touch control makes it easier and faster to use. The experience is superior. Its surface has a glossy or matte surface with high stability, and it supports more refined, industrial operations, touch without blind spots, higher sensing accuracy, and faster response.
- Industrial motherboard with powerful performance: 24-hour uninterrupted operation. It is durable to use. It is suitable for various environments, enabling worry-free automation.

Product Specifications:
Hardware Performance:
- Model: AMZ070W1RAG (single serial port); AMZ070W1RAGD (dual serial port; COM2 RS485); AMZ070W1RAGE (dual serial port; COM2 RS232)
- Monitor: 7" TFT LCD
- Resolution (Px): 800x480
- Colour: 260,000
- Brightness: 600 cd/m²
- In a bad/poor light: LED
- LED lifetime: 20000 hours
- Touch screen: 4-wire industrial resistance touch screen (surface hardness 4H)
- CPU: 32-bit 600MHz main frequency ARM9 built-in 32MB DDR memory
- Storage: 128Mbyte SPI Nand Flash
- RTC: Built in real time clock
- Ethernet: None
- Power-down data saving: Support
- USB port: 1 USB2.0 device port and 1 USB2.0 host port
- Program download mode: via USB, USB disk and SD card
- USB disk: Support
- Communication port: COM1: RS232/RS485/RS422 (choose one). COM2: RS232 or RS485 (only for dual-serial port version)

Electrical Specifications:
- Rated power: Maximum 3.5W
- Rated voltage: DC 24V (work normally in the range of 10.8V-30V)
- Power supply protection: + / - 2KV lightning surge protection
- Permissible power loss: < 5ms
- CE & ROHS: Meet EN61000-6-2:2005 and EN61000-6-4:2007 standards; Lightning surge + / - 2KV, Burst + / - 4KV; Electrostatic contact discharge + / - 8Kv; Electrostatic air discharge + / - 15kV

Environmental Specifications:
- Working temperature: -20℃ to 50℃
- Storage temperature: -40℃ to 70℃
- Ambient humidity: 0 ~ 90% RH (non condensing)
- Earthquake resistance: 10-25Hz (x, y, z directions, 2G / 30min)
- Cooling mode: Natural air cooling

Other Parameters:
- Protection level: The front panel conforms to IP65 (installed with flat panel cabinet), and the rear shell conforms to IP20
- Effective display area of touch screen: 154.1 x 85.9mm/6.1 x 3.4"
- Hole spacing: 192 x 138mm/7.6 x 5.4"
- Dimensions: 203 x 149 x 38mm/8 x 5.9 x 1.5"
- Net weight: 400g/0.9lb

Package Included:
- 1 x Touch Screen
- 1 x Bag of Accessories
- 1 x Installation Instructions

Note:
- Power supply terminal, fixing screws and buckles are included.
