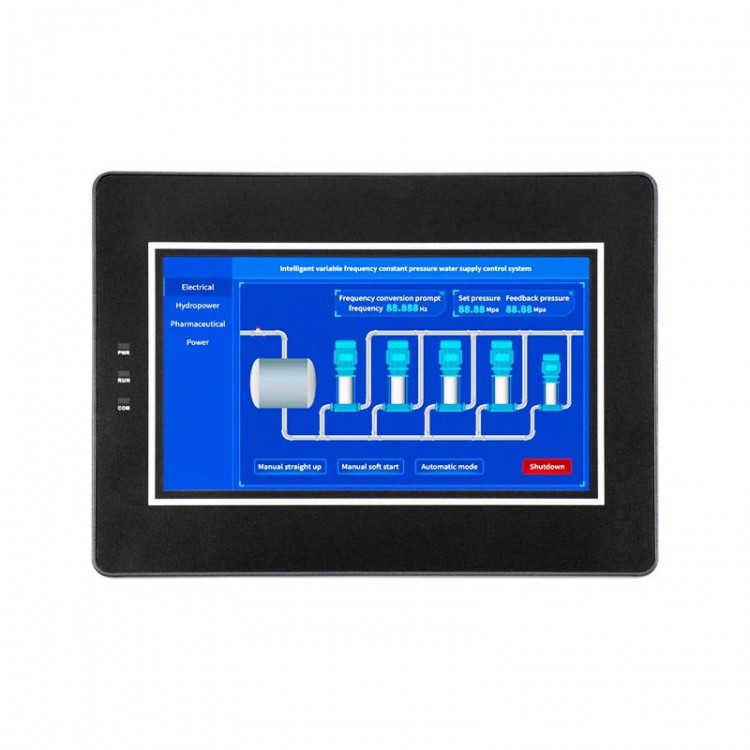

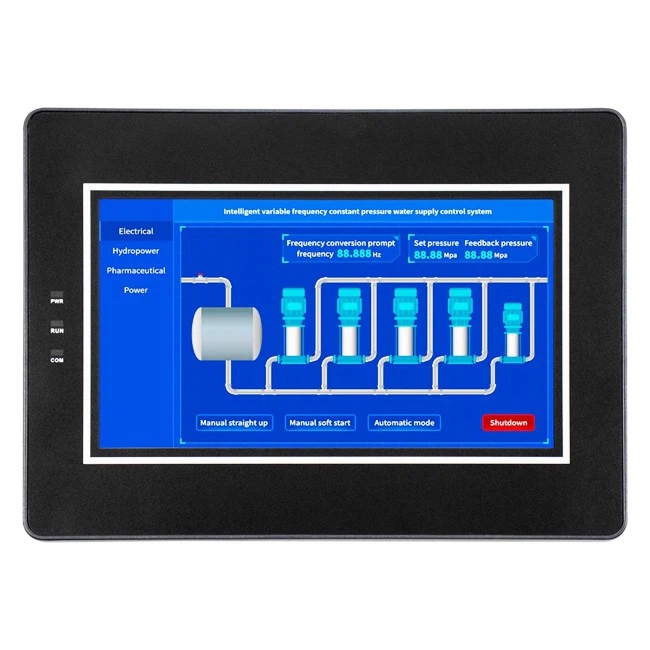

MGC 7 Inch HMI Display Resistive Touch Screen (Dual Serial + Ethernet Port) for IoT Industrial PLC
Product Introduction:
7" high-end industrial cloud HMI is equipped with 3 independent serial ports (RS232/RS485/RS422) and one CAN bus interface, and one Ethernet interface.
The serial ports support various PLC protocols and standard MODBUS protocols as well as our unique user advanced custom protocols, which can be easily connected to various PLCs and smart meters, and can also freely communicate with microcontrollers.
The CAN bus port supports all CAN communication protocols of CAN2.0 standard, including the mainstream CANopen and J1939 protocols. It has been applied in a large number of fields such as construction machinery, special vehicles, automotive systems, battery management systems, etc. It can fully meet the needs of construction machinery with high vibration and wide temperature.
Network port can support most PLC's Ethernet protocol and standard MODBUS TCP protocol as well as network port custom protocol, and can realize remote monitoring function (through the cell phone app or computer web page we provide)
Equipped with a standard USB port, it can be plugged with a U disk for engineering upgrades and data storage.
In the era of Internet of Things, global production sites are full of various forms of information. 7" IoT HMI can collect and use this information to easily implement IoT in the production site. As a compact HMI, it is equipped with a 7" wide screen and can build IoT through a large network interface and 4G network. It is suitable for today's mainstream of various large automated equipment and production lines. The color model also comes with a USB Type-A interface for connecting commercial USB devices (e.g., bar code readers, USB memory devices, etc.), so that a PC on the network can collect data from each device. The color model is only 7 inches but provides a high resolution of 16.77M Colors with true color display of 800x480 pixels, which makes it convenient to view and easy to operate.
Package Included:
- 1 x Touch Screen
Note:
- Battery is not included.
