Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $56.57 | $55.41 | $53.68 | $51.37 | Contact US |

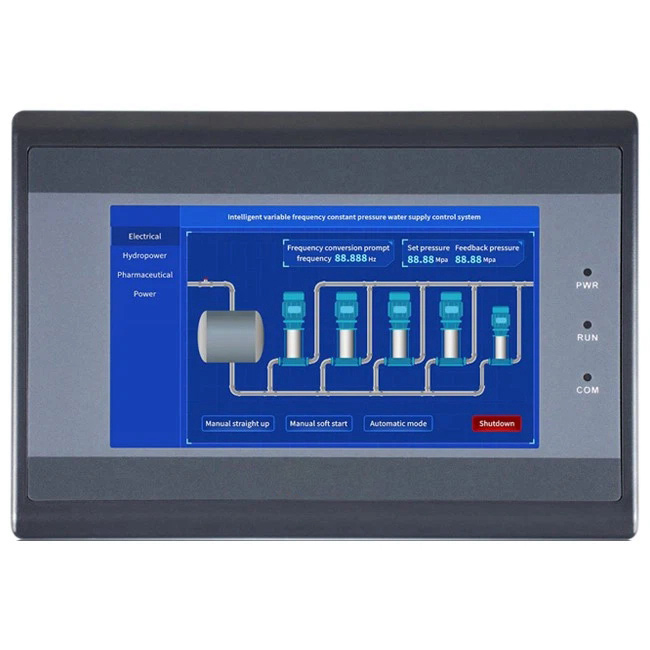

MGC 4.3 Inch IoT HMI Resistive Touch Screen PLC HDMI Display Screen with Dual Serial Port (Ethernet)
Product Introduction:
In the past in the industrial field,
HMI touch screen is more often used as a window for human and mechanical
equipment interaction, and used to connect various PLCs, sensors.
Nowadays,
in the context of industrial IoT, manufacturing enterprises need to
integrate OT and IT technologies more to achieve their own
digitalization, intelligent transformation and upgrading, and improve
efficiency. So, HMI touch screen as a key medium for mechanical
equipment to connect to the Internet of Things, was given a new mission -
to transfer mechanical equipment data to the cloud into the Internet of
Things, to help achieve the "Internet of Things".
At present,
there are a few leading domestic products networking type HMI touch
screen and Internet of things off both down to connect all kinds of PLC,
sensors, up to connect the powerful ability of the Internet of things.
4.3 Inch IoT HMI's IoT Function:
The
IoT HMI touch screen and IoT gateway are equipped with comprehensive
and diverse IoT functions, making the "Internet of Things" easier and
safer:
By using EdgeAccess remote service management platform,
you can monitor and control the equipment on your computer, cell phone
or tablet at any time and anywhere, and realize remote service functions
such as remote desktop, PLC transmission and online recipe upgrade,
which greatly saves the time and cost of traveling.
The M-IoT
machine IoT cloud platform can be fully connected to Ali's ecology to
realize 10 million level equipment online concurrency, leasing and other
applications, which is safe, stable and reliable and brings greater
value-added to manufacturing enterprises.
Through the IoT-type
HMI touch screen and IoT gateway support MQTT, HTTP, HJ212, OPC UA and
other IoT protocols, as well as remote database writing, it can achieve
seamless interface with third-party MES/ERP/SCADA and other information
management systems, helping to efficiently optimize production operation
plans.
By using the split HMI, i.e. HDMI HD box, only one HDMI
cable is needed to adapt to various TVs, monitors and projectors, and
Kinco DTools HMI configuration software can also be used to easily
realize the demand for large-screen display and monitoring of factory
production lines, which is convenient and fast.
HMI Functions:
IoT
type HMI touch screen can connect with all kinds of PLCs and sensors,
which is the basic function of HMI touch screen, and now the national
product networking type HMI touch screen is also strengthening this
skill.
Comprehensive support for CoDeSys and Omron tag protocol,
Siemens / Mitsubishi / Keans / AB / Delta and other global 300 + PLC
manufacturers product communication, HMI touch screen interface can be
used for up to four serial / dual network port configuration, and can
meet the needs of most applications.
Supporting CANopen, Modbus
and other standard common protocols, and support network port / serial
port / CAN port custom development / custom development, etc., it can
meet the communication needs of non-standard microcontrollers, sensors,
etc.

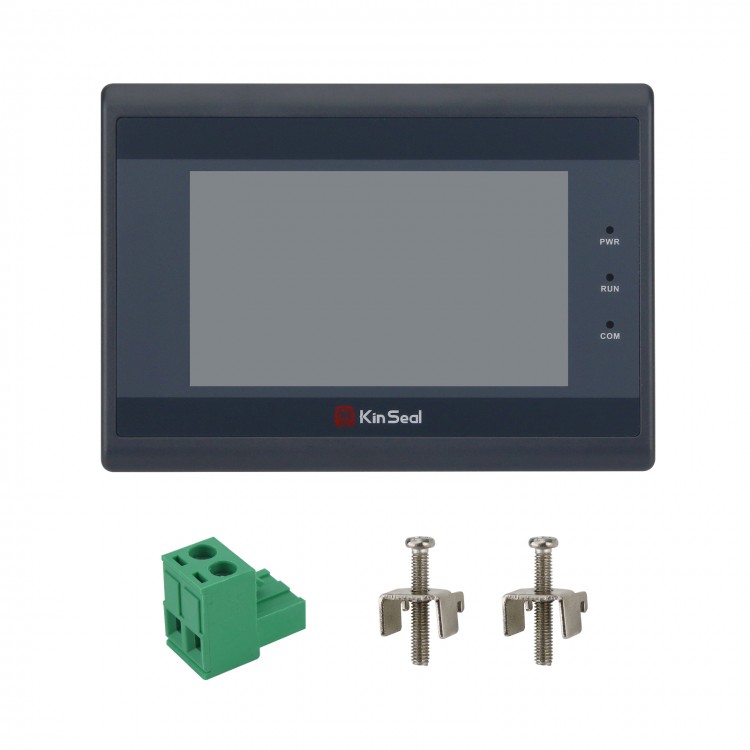

Package Included:
- 1 x IoT HMI
