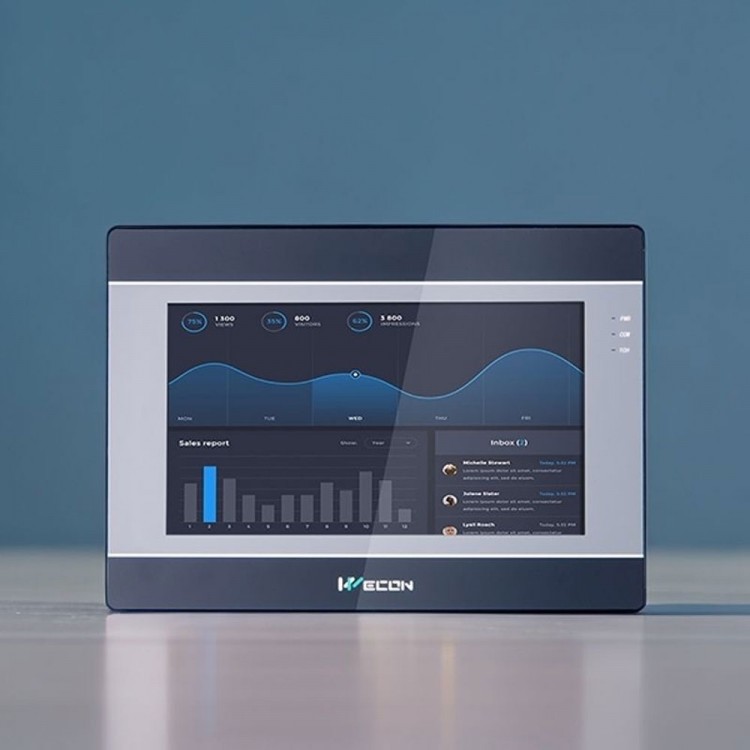

Wecon PI3070I 7-Inch HMI Display Human Machine Interface with 2-Core Processor 128M Flash + 128M RAM

Wecon PI3070I 7-Inch HMI Display Human Machine Interface with 2-Core Processor 128M Flash + 128M RAM

Features:
* Mainboard Specifications: Dual-core processor with 128MB Flash and 128MB RAM memory
* Display: 7-inch, resolution: 800 × 480
* Interface: COM1: RS232, RS422/RS485 (multiple interfaces optional)
* Download Method: Data cable download + USB flash drive download

Specifications:
* CPU: High-performance processor
* Touch Screen: Resistive

Display:
* Display: 7-inch
* Resolution: 800 × 480
* Brightness: 250cd/m²
* Backlight Type: LED
* Backlight Life (Half-life): Greater than 20,000 hours

Storage:
* FLASH: 128MB
* Memory (RAM): 128MB
* SD Card Slot: None
* RTC: Real-time clock

I/O Interface:
* USB Interface: USB Host: USB 2.0 × 1; USB Client: USB 2.0 × 1
* Serial Interface: 1 serial port. RS232, RS422/RS485 (2-in-1)
* Ethernet: None
* CAN: None
* HDMI-Compatible Interface: None

Perpetual Calendar:
* Built-in

Power Specifications:
* Input Power: 24V DC (12–28V DC)
* Power Consumption: Less than 8W
* Power Isolation: None

Structural Specifications:
* Enclosure Material: Engineering Plastic PC+ABS (Flame Retardant Grade)
* Dimensions: 201.2mm × 147.2mm × 39.0mm
* Cutout Dimensions: 192.0mm × 138.0mm
* Weight: 0.51kg

Operating Environment:
* Protection Rating: Front panel compliant with IP65
* Storage Temperature: -20℃ to 70℃
* Operating Temperature: -10℃ to 55℃
* Operating Humidity: 10% to 90% RH (non-condensing)
* Vibration Resistance: 10–25Hz, 2G for 30 minutes along X, Y, and Z axes

* CE Certification: Complies with CE standards
* Software: PI Studio Configuration Software
* Remote Control: Not supported

Packing List:
* 1 × HMI Touch Screen

Packaging Details:
* Weight: 0.6kg
