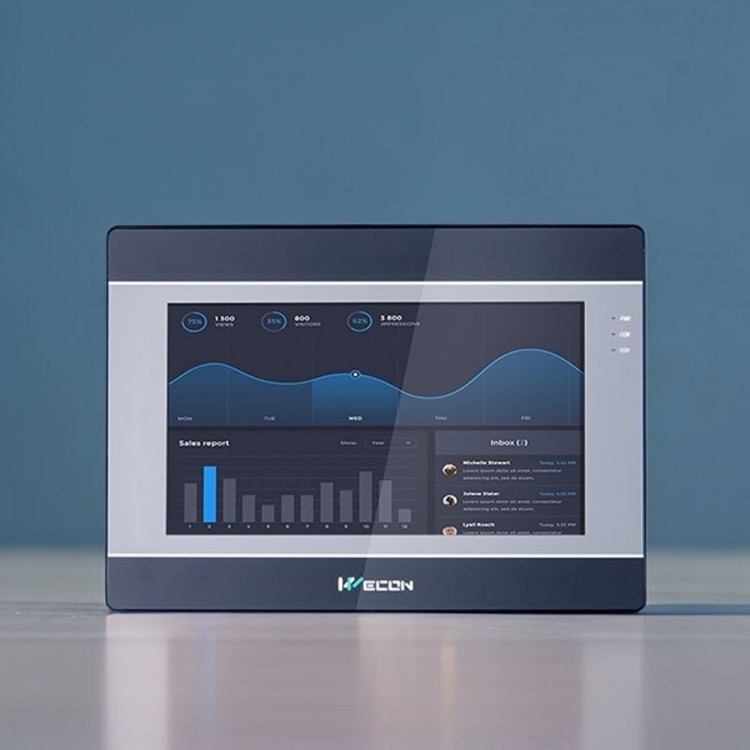

Wecon PI3070IE 7-Inch HMI Human Machine Interface Boasts 4-Core Processor with 128M Flash + 64M RAM

Wecon PI3070IE 7-Inch HMI Human Machine Interface Boasts 4-Core Processor with 128M Flash + 64M RAM

Features:
* Mainboard Specifications: Quad-core high-performance processor with 128M Flash and 64M RAM memory
* Display: 7 inches; Resolution: 800×480
* Interfaces: COM1: RS232, RS422/RS485
* Download Methods: Data cable download + USB drive download

Specifications:
* CPU: Quad-core high-performance processor
* Touch Screen: Resistive

Display:
* Screen Size: 7 inches
* Resolution: 800×480
* LCD Brightness: 250cd/㎡
* Backlight Type: LED
* Backlight Lifespan (Half-life): More than 20,000 hours

Memory:
* Flash: 128MB
* RAM: 64MB
* SD Card Slot: None

I/O Interfaces:
* USB: USB Host: USB 2.0 × 1; USB Client: USB 2.0 × 1
* Serial Interface: One serial port: RS232, RS422/RS485 (2-in-1)
* Ethernet: None
* CAN: None
* HDMI-compatible Interface: None

Perpetual Calendar:
* Built-in

Power Supply:
* Input Voltage: 24V DC (12~28V DC)
* Power Consumption: Less than 8W
* Power Isolation: None

Other Parameters:
* Housing Material: Engineering plastic PC+ABS (flame retardant grade)
* Overall Dimensions: 201.2mm × 147.2mm × 39.0mm
* Cutout Dimensions: 192.0mm × 138.0mm
* Weight: 0.52kg

Operating Environment:
* Protection Rating: Front panel complies with IP65
* Storage Temperature: -20℃ to 70℃
* Operating Temperature: -10℃ to 55℃
* Operating Humidity: 10% to 90% RH (non-condensing)
* Vibration Resistance: 10–25Hz, 2G for 30 minutes in X, Y, and Z directions

* CE Certification: Complies with CE certification standards
* Software: PI Studio configuration software
* Remote Control: Not supported

Packing List:
* 1 × HMI Display

Packaging Details:
* Weight: 0.6kg
