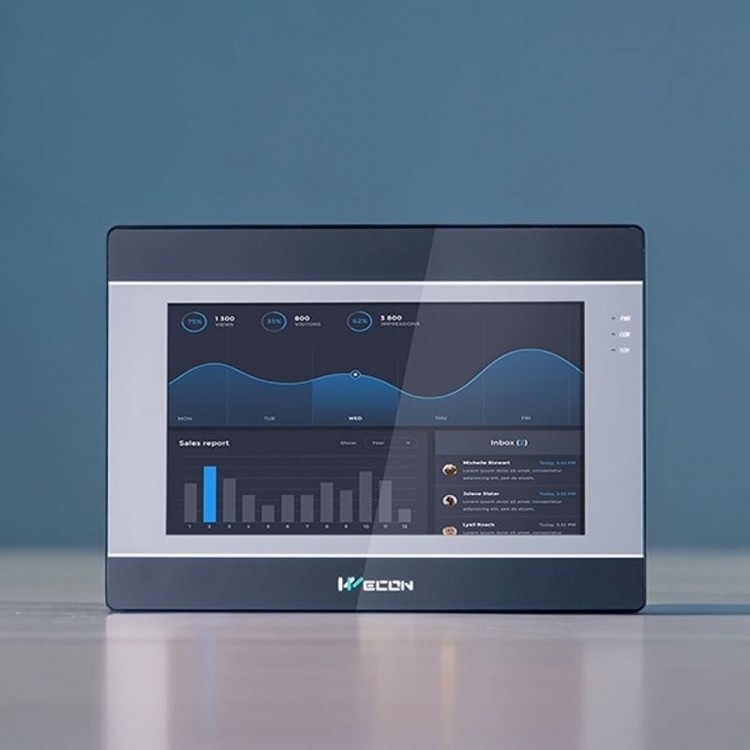

Wecon PI3102IE 10.1-Inch Touch Screen Human Machine Interface with 4-Core Processor 128M Flash + 64M RAM

Wecon PI3102IE 10.1-Inch Touch Screen Human Machine Interface with 4-Core Processor 128M Flash + 64M RAM

Features:
* Mainboard Specifications: Quad-core high-performance processor with 128M Flash and 64M RAM memory
* Display: 10.1 inches; Resolution: 1024×600
* Interfaces: COM1: RS232, RS422/RS485
* Download Methods: Data cable download + USB drive download

Specifications:
CPU:
* Quad-core high-performance processor

Touch Screen:
* Resistive

Display:
* Screen Size: 10.1 inches
* Resolution: 1024×600
* Brightness: 350cd/㎡
* Backlight Type: LED
* Backlight Lifetime (Half-life): More than 20,000 hours

Memory:
* Flash: 128MB
* RAM: 64MB
* SD Card Slot: None

I/O Interfaces:
* USB: USB Host: USB 2.0 × 1; USB Client: USB 2.0 × 1
* Serial Port: One serial port. RS232, RS422/RS485 (2-in-1)
* Ethernet: Not available
* CAN: Not available
* HDMI-Compatible Port: Not available

Perpetual Calendar:
* Built-in

Power Supply:
* Input Voltage: 24V DC (12~28V DC)
* Power Consumption: Less than 10W
* Power Isolation: Not available

Operating Environment:
* Protection Rating: Front panel compliant with IP65
* Storage Temperature: -20℃ to 70℃
* Operating Temperature: -10℃ to 55℃
* Operating Humidity: 10% to 90% RH (non-condensing)
* Vibration Resistance: 10–25Hz, 2G for 30 minutes along X, Y, and Z axes

Other Parameters:
* Enclosure Material: Engineering Plastic PC+ABS (Flame Retardant Grade)
* Dimensions: 272.0mm × 191.0mm × 41.5mm
* Cutout Dimensions: 260.0mm × 179.0mm
* Weight: 1.02kg
* CE Certification: Complies with CE standards
* Software: PI Studio configuration software
* Remote Control: Not supported

Packing List:
* 1 × HMI Display

Packaging Details:
* Weight: 0.6kg
