| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $119.67 | $117.23 | $113.56 | $108.68 | Contact US |
Wecon PI3043IE 4.3-Inch HMI Human Machine Interface with 4-Core Processor 128MB Flash + 64MB RAM
$73.52
Wecon PI3102I 10.1-Inch HMI Human Machine Interface with 2-Core Processor 128M+128M & Ethernet Port
$160.97
Wecon PI3070I 7-Inch HMI Display Human Machine Interface with 2-Core Processor 128M Flash + 128M RAM
$106.56

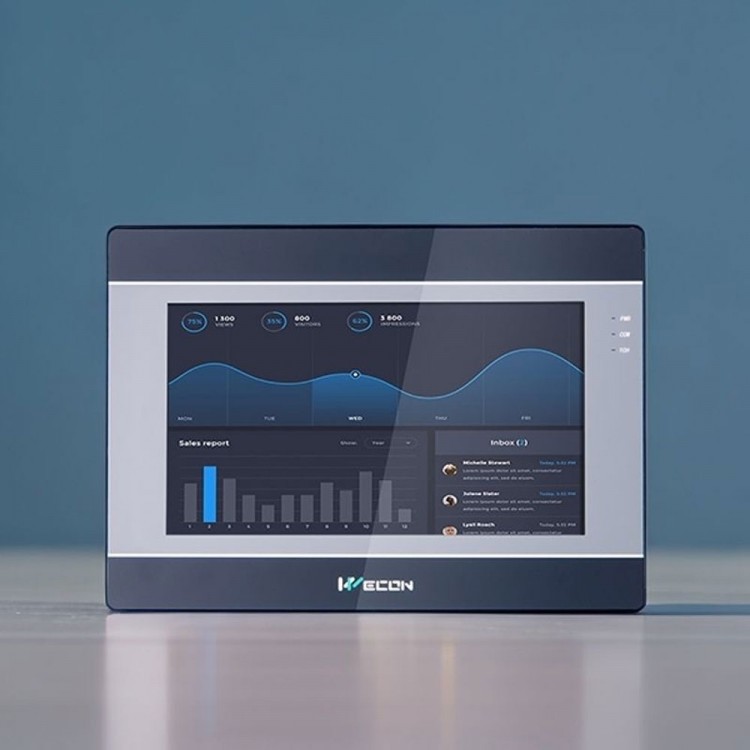

Wecon PI3070IG 7-Inch HMI IoT Screen Touch Screen with 4-Core Processor 128MB+128MB & Ethernet Port
Features:
* Mainboard Specifications: Quad-core high-performance processor with 128MB Flash and 128MB RAM memory combination
* Display: 7-inch, resolution: 800 × 480
* Interface: COM1: RS232, RS422/RS485, RS485; Ethernet port
* Download Method: Data cable download + USB flash drive download + LAN download + Remote download
Specifications:
* CPU: Quad-core high-performance processor
* Touch Screen: Resistive
Display:
* Display: 7-inch
* Resolution: 800 × 480
* LCD Brightness: 250cd/m²
* Backlight Type: LED
* Backlight Life (Half-life): Greater than 20,000 hours
Storage:
* Flash: 128MB
* Memory (RAM): 128MB
* SD Card Slot: With
I/O Interface:
* USB: USB Host: USB 2.0 × 1; USB Client: USB 2.0 × 1 (the two USB ports cannot be used simultaneously)
* Serial Interface: 1 serial port. RS232, RS422/RS485 (2-in-1), RS485
* Ethernet Port: With
* 4G/Wi-Fi Module: Optional
Perpetual Calendar:
* Built-in
Power Supply:
* Input Power: 24V DC (12–28V DC)
* Power Consumption: Less than 8W
* Power Isolation: None
Other Parameters:
* Enclosure Material: Engineering Plastic PC+ABS (Flame Retardant Grade)
* Dimensions: 201.2mm × 147.2mm × 39.0mm
* Cutout Dimensions: 192.0mm × 138.0mm
* Weight: 0.52kg
* CE Certification: Complies with CE certification standards
* Software: PI Studio Configuration Software
Operating Environment:
* Protection Rating: Front panel compliant with IP65
* Storage Temperature: -20℃ to 70℃
* Operating Temperature: -10℃ to 55℃
* Operating Humidity: 10% to 90% RH (non-condensing)
* Vibration Resistance: 10–25Hz, 2G for 30 minutes along X, Y, and Z axes
Software Features:
* IoT Services: Optional
* * Real-time Data Monitoring Points: 100
* * Alarm Data Monitoring Points: 20
* * Historical Data Monitoring Points: 50
* * Historical Data Retention: 60 days/1,000,000 records
* Standard Transparent Transmission: With
* VPN Transparent Transmission: Optional
Packing List:
* 1 × IoT Screen
Packaging Details:
* Weight: 0.6kg
