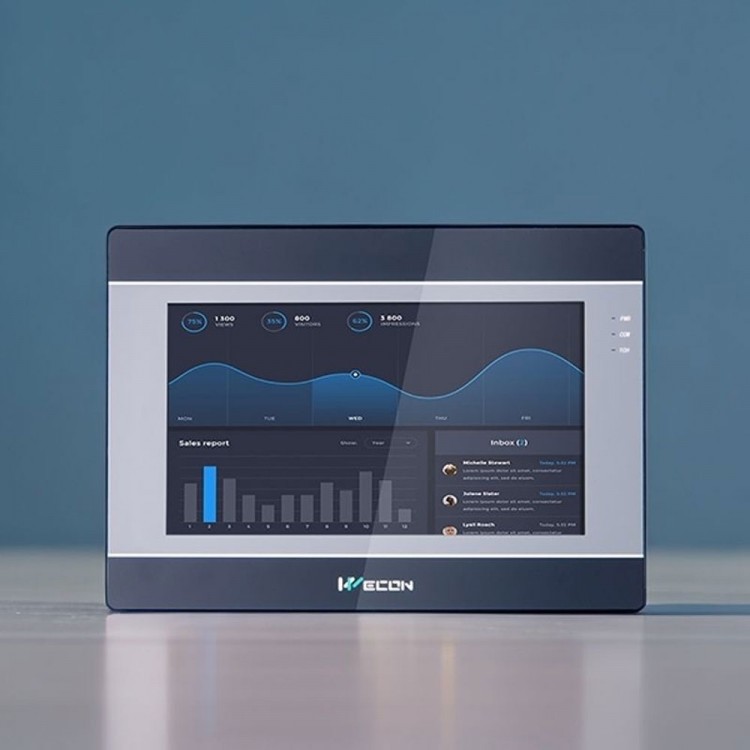

Wecon IN1071 7-Inch HMI Touch Screen Human Machine Interface with Square Download Port 128MB+64MB

Wecon IN1071 7-Inch HMI Touch Screen Human Machine Interface with Square Download Port 128MB+64MB

Difference between Wecon IN1071 and Wecon IN1072:
* IN1071 features a square printer-style download port.
* IN1072 uses a Type-C download port.
* All other specifications are the same.

Features:
* Mainboard Specifications: High-performance processor with 128MB Flash and 64MB RAM
* Display: 7-inch screen with 800 × 480 resolution
* Interfaces: COM1: RS232, RS422/RS485
* Download Methods: Supports both USB cable and USB flash drive downloads

Product Specifications:
* CPU: High-performance processor
* Touch Screen: Resistive type

Display:
* Screen Size: 7 inches
* Resolution: 800 × 480
* Brightness: 250cd/㎡
* Backlight Type: LED
* Backlight Lifespan (Half-life): Over 20,000 hours
* Display Colors: 16 million colors

Storage:
* Flash Memory: 128MB
* RAM: 64MB
* SD Card Slot: Not available

I/O Interfaces:
* USB: USB Host: USB 2.0 × 1; USB Client: USB 2.0 × 1
* Serial Port: 1 serial port. RS232, RS422/RS485 (2-in-1)
* Ethernet: Not available

Perpetual Calendar:
* Built-in

Power:
* Input Voltage: 24V DC (12~28V DC)
* Power Consumption: Less than 8W
* Power Isolation: Not supported

Specifications:
* Housing Material: Engineering plastic (PC+ABS, flame-retardant grade)
* Dimensions (W × H × D): 201.2mm × 147.2mm × 39.0mm
* Cutout Dimensions (W × H): 192.0mm × 138.0mm
* Weight: 0.52kg

Operating Environment:
* Protection Rating: Front panel meets IP65
* Storage Temperature: -20°C to 70°C
* Operating Temperature: -10°C to 55°C
* Operating Humidity: 10% to 90% RH (non-condensing)
* Vibration Resistance: 10 to 25Hz (X, Y, Z directions, 2G for 30 minutes)

Certification:
* Complies with CE certification standards

Software:
* PI Studio configuration software

Remote Control:
* Not supported

Packing List:
* 1 × HMI Display

Packaging Details:
* Weight: 0.6kg
