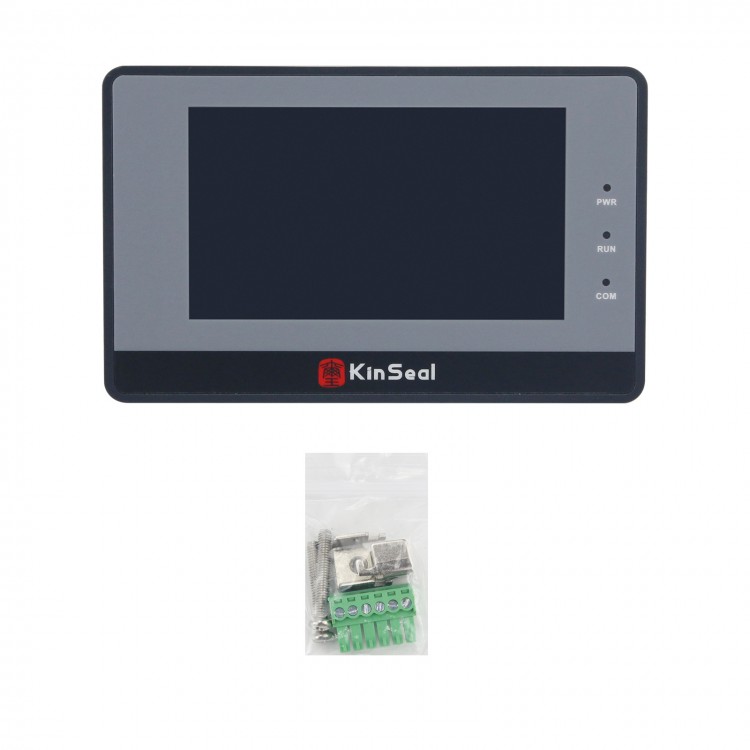

4.3 inch (other sizes also available for inquiries)
Accessories:power supply terminal , fixing screws, buckles.
About wiring: this touch screen does not support downloading program by USB sticks , only by USB cable
Communication Cable does not need to be purchased. Communication cable should be made according to the definition of needle angle. Manufacturers only provide power communication terminals.
Specifications | ||
Hardware | Model | SUP043SPRG1 |
Display | 4.3 "TFT LCD screen | |
Resolution | 480 × 272 | |
color | 260 000 | |
Brightness | 300 cd / m2 | |
Backlight | LED | |
LED life | 20,000 hours | |
touch screen | Industrial 4 wire resistive touch screen (surface hardness 4H) | |
CPU | 32-bit 240MHz ARM9 | |
Memory | 128M SLC FLASH | |
RTC | Built-in Real Time Clock | |
Ethernet | N/A | |
USB port | 1x USB2.0 Device | |
Download mode | USB Downloading | |
U disk | Not support | |
Serial communication port | COM1 supports RS232/RS485 communication | |
Electrical | Rated power | <2.5W |
Rated voltage | DC24V | |
Power Protection | With lightning surge protection | |
Allowable Voltage | <5 ms | |
CE & RoHS | EN61000-6-2: 2005,EN61000-6-4: 2007 standard;Lightning surge ± 4KV, group pulse ± 4KV; contacting electrostatic 4KV, air discharge 8KV | |
Environmental | Operating temperature | -20 ~ 50 ° |
Storage temperature | -40 ~ 70 ° | |
Environment humidity | 10 ~ 90% RH (non-condensing) | |
Shock resistance | 10 ~ 25 Hz (X, Y, Z direction 2G / 30 min) | |
Cooling method | Natural air | |
other | Protection class | IP65 compliant front panel (flat mating enclosure installed), the body shell meet IP20 |
| Touch Area | ||
