Specification:

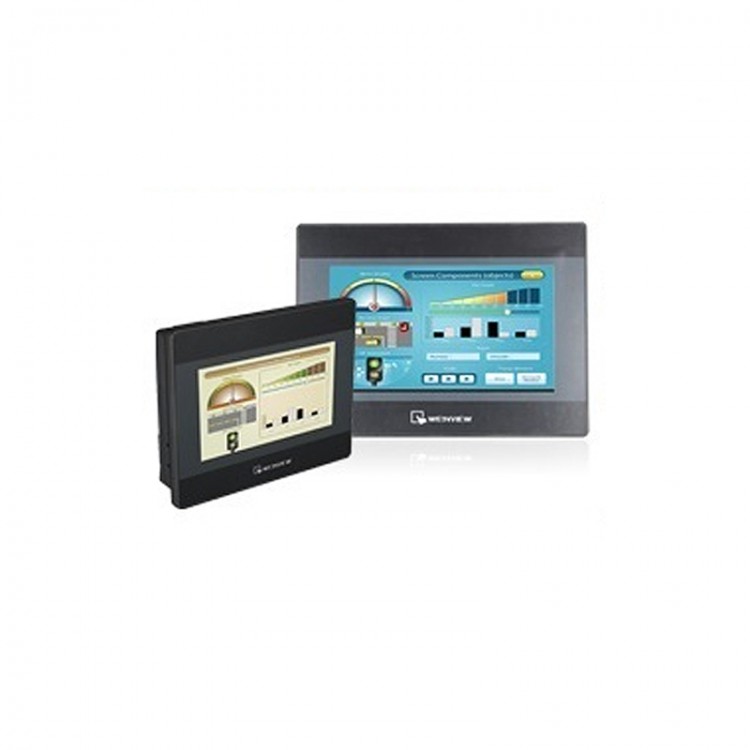

- Manufacturer : WEINVIEW
- MT8101iE
- 10.1" 800x480 TFT LCD
- Fanless cooling system
- The main board coating protects against corrosion in harsh environments
- COM2 and COM3 [RS485] support MPI187.5K, choose one at the same time
- NEMA4/IP65 front panel protection rating
- Built-in power isolation
- Processor : 32 bits RISC Cortex-A8 600MHz
- Resolution : 800 x 480
- Brightness (cd/m2) : 300
- Backlight life time : >30,000 hrs.
- Colors : 262K
- RAM (MB) : 128 MB
- Storage (MB) : 128 MB
- Panel Cutout (mm) : 260 x 202mm
- Thickness : 40 mm
- Weight : 1.3 kg
- USB Host : USB 2.0 x 1
- USB Client : N/A
- Wi-Fi module : N/A
- Ethernet : 10/100 Base-T x 1
- COM Port :-
- COM1: RS-232
- COM2: RS-485 2W/4W
- COM3: RS-485 2W
- PCB Coating: Yes
- Power Isolation : Yes
- Certificate : CE marked
- Software : EasyBuilder Pro
- Shipping Weight : 2.3Kg
