Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $137.19 | $134.39 | $130.19 | $124.59 | Contact US |

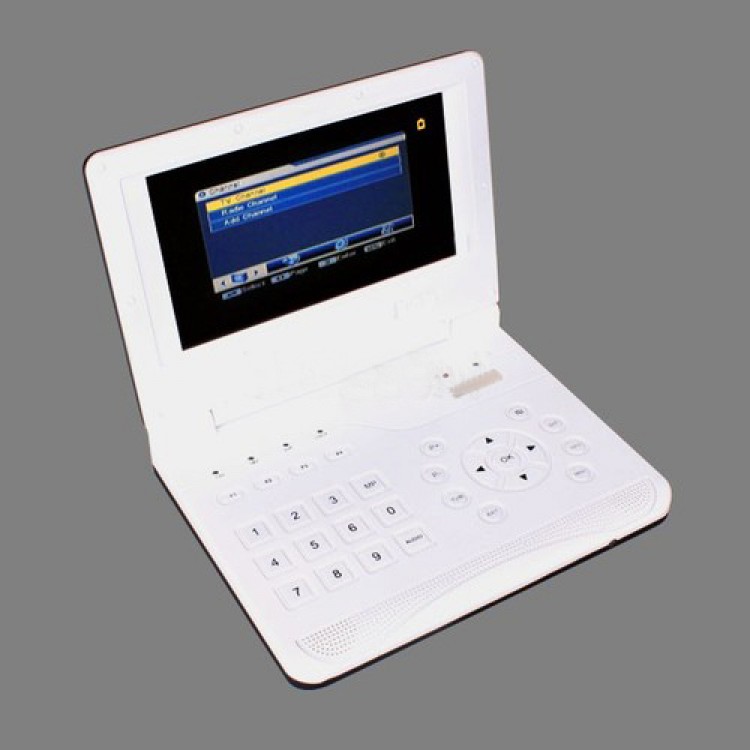

Multi-function 7inch LCD TV DVB-S Receiver Satellite Signal Finder&Monitor
Description:
7inch multi-function Portable Satellite Finder With 7” Wide Screen is a tailored special apparatus designed for professionals to install of satellite TV receiving and monitoring system .It is a high-tech electronic product that sets satellite television receiver sets, LCD liquid crystal image display , TFT LCD high-brightness signal quality image parameters display and high-performance lithium polymer battery as a whole, according to actual needs of the installation of satellite engineering. The clamshell-style boot machines are portable and user-friendly ,which are used to install the satellite TV reception system and adjust signal for engineer and technical personnel.
Features:
- 7-inch TFT LCD
- both in Chinese/English/Thailand/Laotian/Vietnam/Russian/Indonesia menu
- remote control
- built-in lithium polymer batteries
- an external power source, working for two hours or more
- AV input & output function, signal quality displayed through the LCD Screen
- the unique satellite finder guidance function and built-in games
- small size, light weight and easy to carry
Specifications:
Main parameters: TFT 7"(73*51mm)
Battery pack: DC 7.4V 3000mAh (built-in)
A/V output: Video RCA/S-Video; Audio RCA left/right/stero channel
Input voltage: DC 8.5V
Input impedance: 75 Ω (Type F)
Input frequency: 950-2150 MHZ
Symbol rate: 2-45Mbands MCPC, SCPC compatible
Input signal level: -65 ~-25dBm
EB/O threshold: 4.1 dB
Demodulation: QPSK
Video decode: ISO/IEC 13818-ZMP @ML NTSC/PAL
Audio decode: ISO/IEC 13818-3Layerl & 2
Size: 205 * 165 * 45 mm
Weight: 800 g (with battery)
Package included:
- 1 x 7 inch Digital Satellite Finder (Include Rechargeable Battery)
- 1 x Remote control
- 1 x Power Adapter
- 1 x USER Manual
