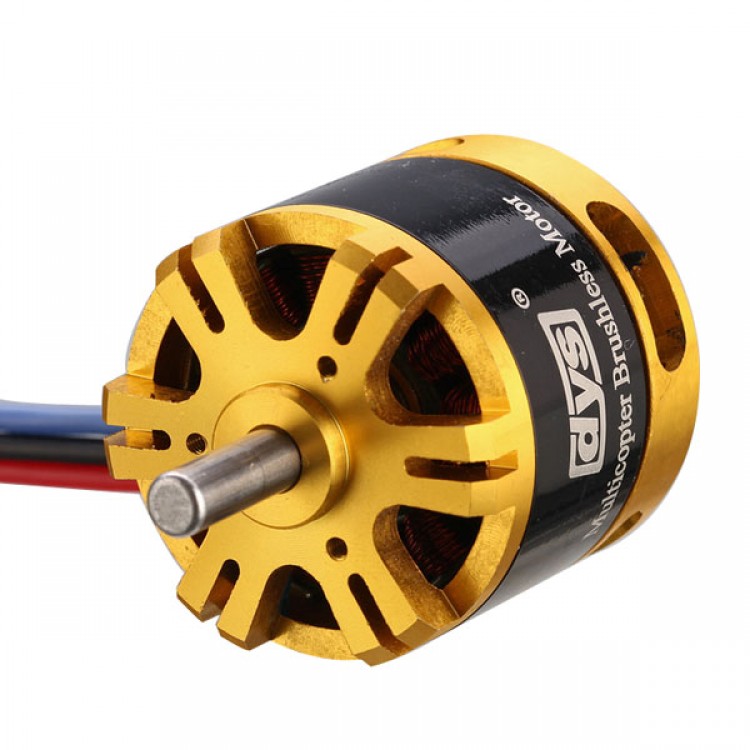

Multi-Rotor Brushless Motor BE2814-5 (1400KV) Long Shaft for Quad Hexa Octa Multicopter
Specifications:
- KV..............................................................................................................1400
- Configu ration....................................................................................NP
- Stator Diameter....................................................................................28mm
- Stator Length..........................................................................................14mm
- Shaft Diameter.......................................................................................5.0mm
- Motor Dimensions(Dia.*Len)...............................................Φ35×36mm
- Weight (g)...................................................................................................100g
- No.of Cells(Lipo).....................................................................................3-6S
- Max Continuous current(A)............................................................14.8A
- Max Continuous Power(W)...........................................................633W
- Internal resistance..............................................................................0.015Ω
| Item No. | NO LOAD | ON LOAD | LOAD TYPE | ||||
|
BE2814-5 (1400KV) |
VOLTAGE | CURRENT | SPEED | CURRENT | Pull | Power | Battery/prop |
| V | A | rpm | A | g | W | ||
| 11.1 | 2.3 | 15650 | 28 | 930 | 310.8 | LiPoх3/7x5E | |
| 31 | 1190 | 344.1 | LiPoх3/8x4E | ||||
| 36 | 1500 | 399.6 | LiPoх3/9x6E | ||||
| 14.8 | 2.5 | 20860 | 42.8 | 1390 | 633.4 | LiPoх4/7x5E | |
DYS final released BE series super strength out-runner high-end brushless motor, The BE series motor is with Kawasaki, Japan 1200 # 0.2mm high efficiency silicon steel and 40UH high temperature powerful magnet. Selected the Japanese NSK pure imported bearings to reduce motor vibration, shell using high-precision CNC machining and professional balancing test, making concentricity, balance is greatly enhanced. DYS BE Series high-end brushless motor perfectly compatible with more than 99% of commercially available brushless ESC.
Low vibration motor great for flying
-To make aircraft more stable
-Less operating noise
-More efficient
-Bearings long life
