1.8inch TFT Music Spectrum Module Programmable 3.5mm AUX Input Music Spectrum Display Virtual VU Meter

Availability: In stock, usually dispatched in 1 business day

  • Price:$35.99
  • Price in reward points: 360 Reward Points: 4
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $35.27 $34.55 $33.47 $32.03 Contact US
Quantity:

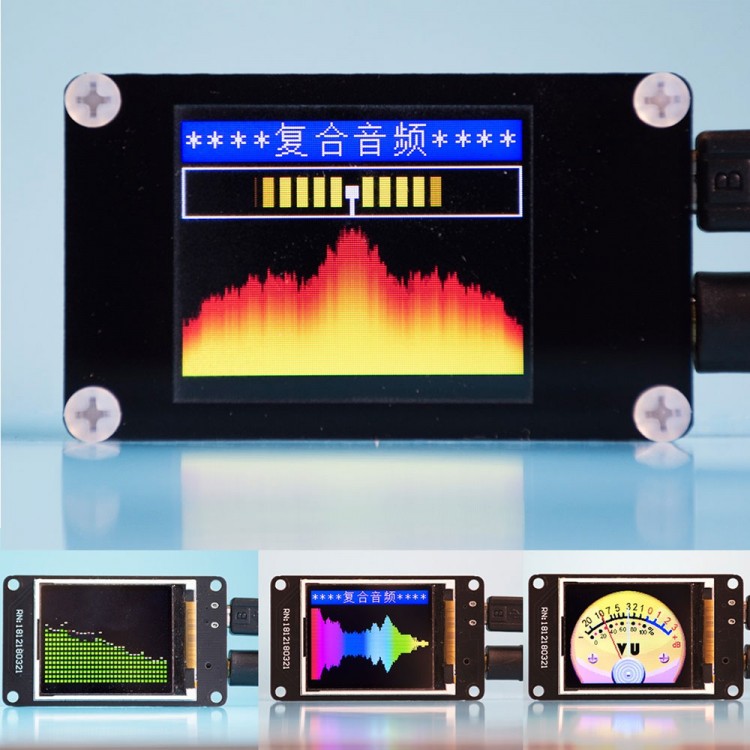

Music Spectrum Module Programmable 3.5mm AUX Input Music Spectrum Display Virtual VU Meter



Features:
- Built-in more than 10 different styles of basic modes,one-key switching,power-off save.
- Provide programming tools and tutorials,design the visual effects you want according to your own aesthetics.
-  Resource file publishing platform: http://www.ntboss.com/product/fs-series/resouces/firmware.html.

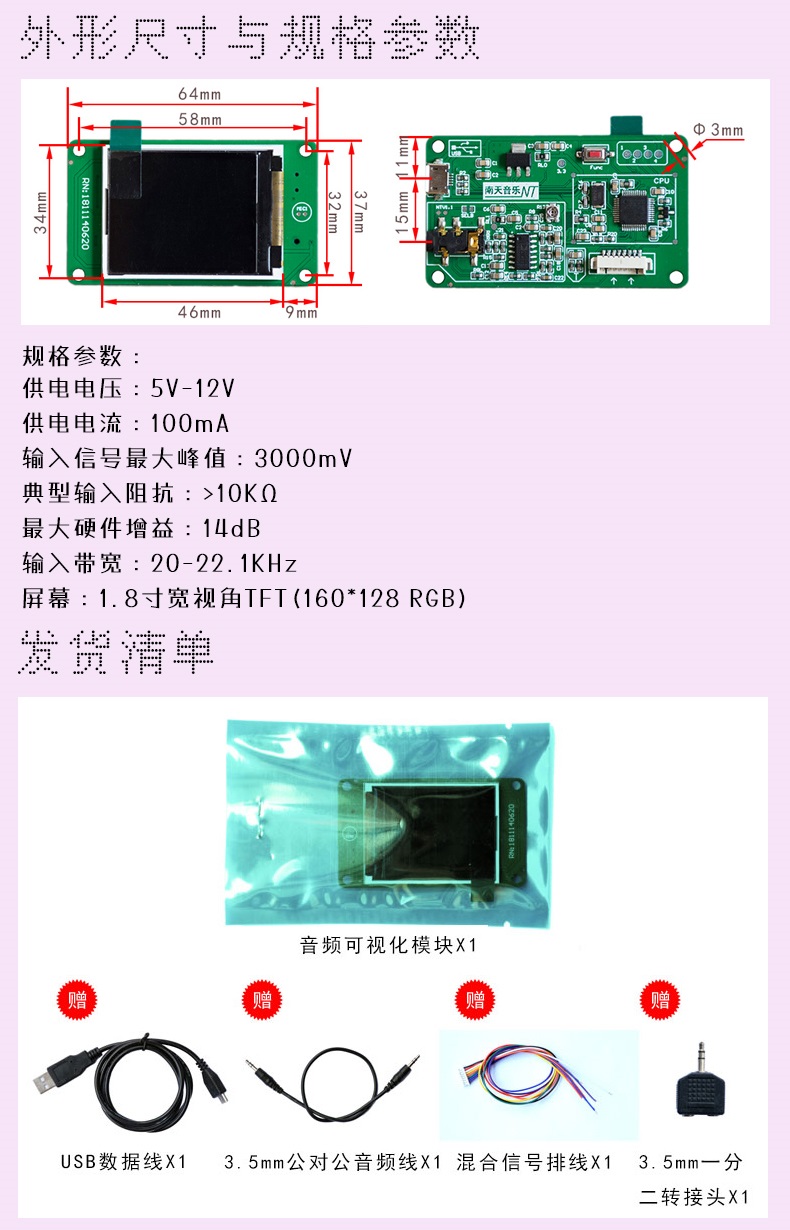

Descriptions:

-- CPU: ARM-cortexM3,108MHz
-  Display: 1.8 inch,160*128(RGB)
-  Power: 5-12V
- Current:50-100ma
- Max input signal:3000mV
-  Audio Input: AUX 3.5mm
- Gain: 14dB
-  Audio Capture Bandwidth: 20-22KHz

Package:
- 1 x  Programmable Spectrum Display Module
- 1 x USB Cable
- 1 x Mixed Signal Cable
- 1 x 3.5mm Audio Cable
- 1 x 3.5mm 1 to 2 Adapter
