MV85 OCXO Oven Controlled Crystal Oscillator Phase Locked Loop PLL Frequency Conversion Board 10M Input

Description:

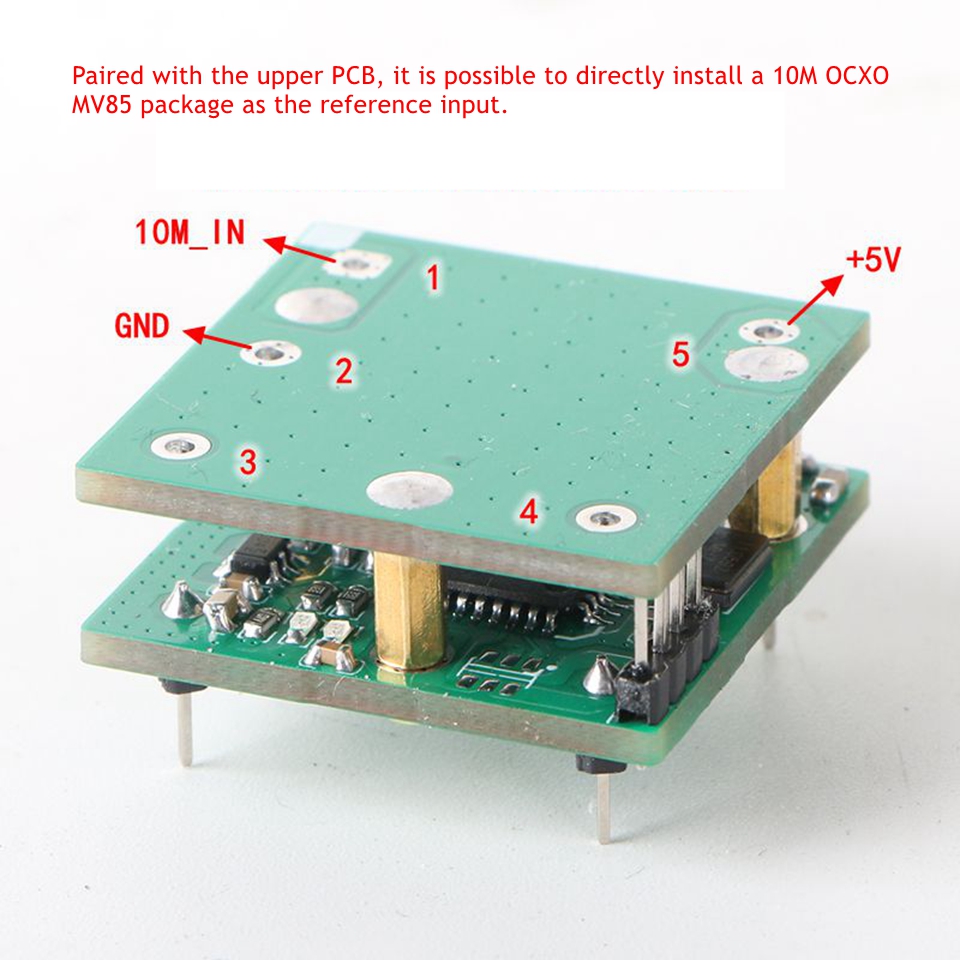

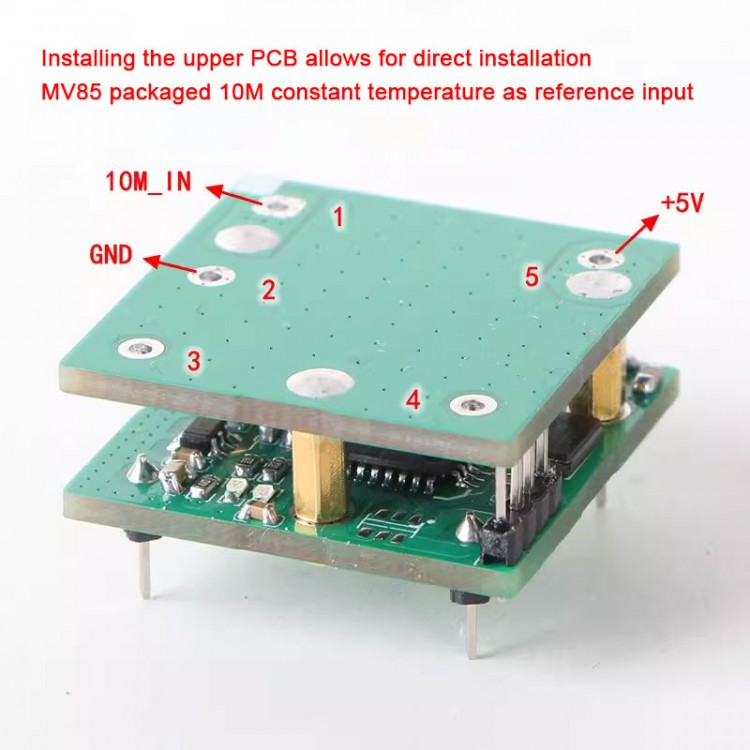

- Input 10M or install MV85 directly.
- Two sets of output custom frequency of 32K~108M, such as commonly used audio frequency 44.1K, 48K, 192K, 384K, 4M, 8M.
- A group output: 8.4672M, 11.2896M, 12M, 16.9344M, 24M, 25M, 27M, 24.576M, 22.5792M
- B group output: 33.8688M, 45.1584M, 49.152M, 50M, 90.3168M, 98.304M, 100M.

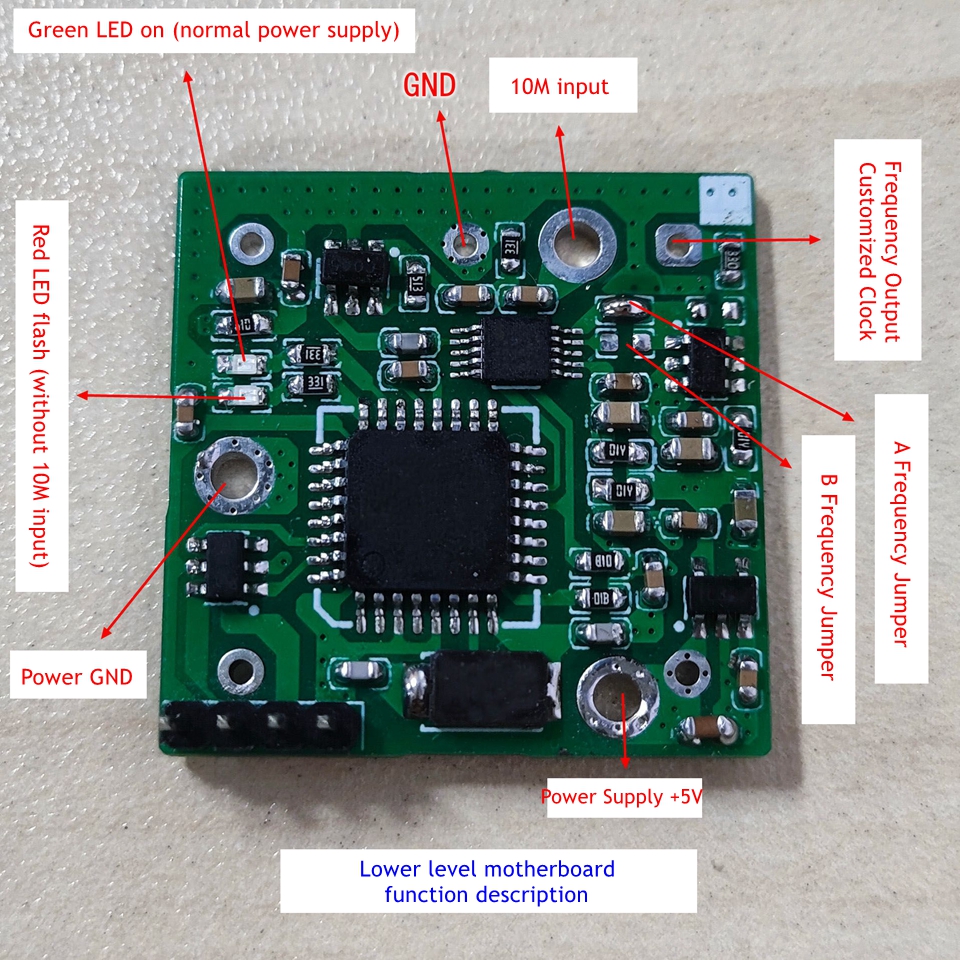

- Please contact customer service to place an order. There are two frequency options available, A and B. The default output is A, and the other can be changed by jumper.

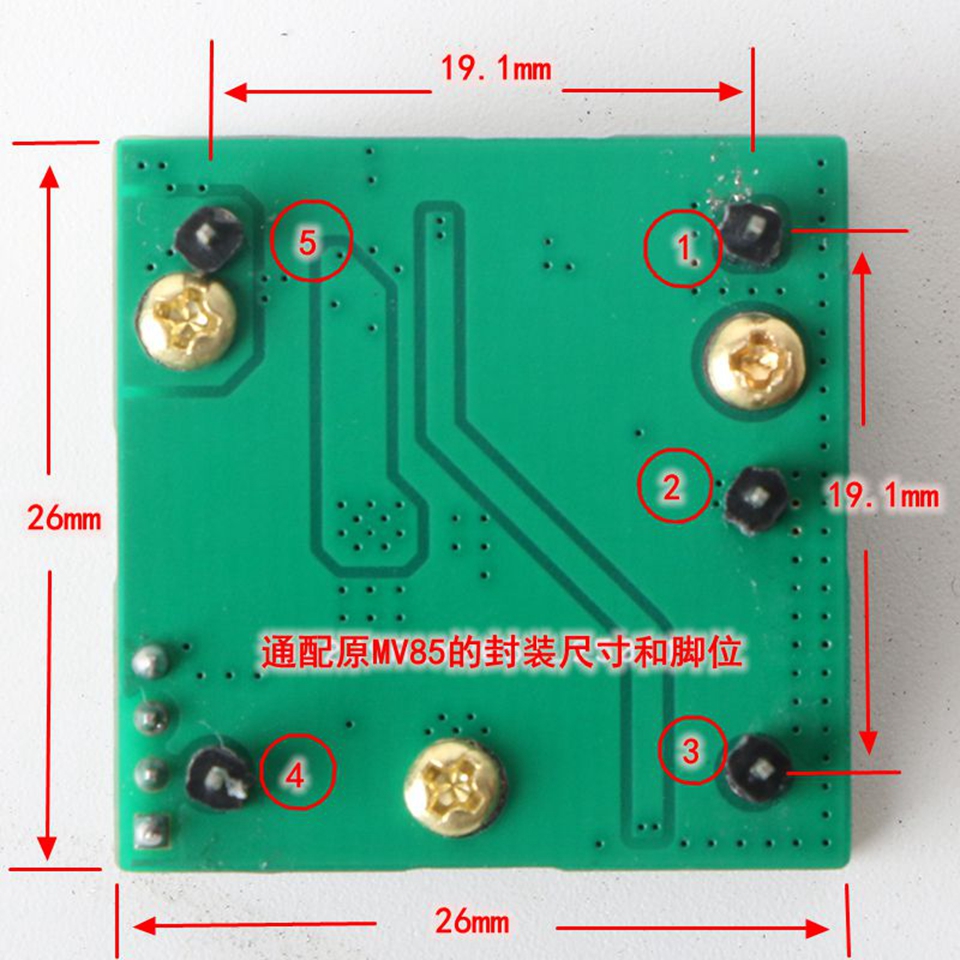

- The size and installation pin position are the same as MV85.

Specification:
- Output signal amplitude: 3.3Vpp
- Output signal waveform: square wave

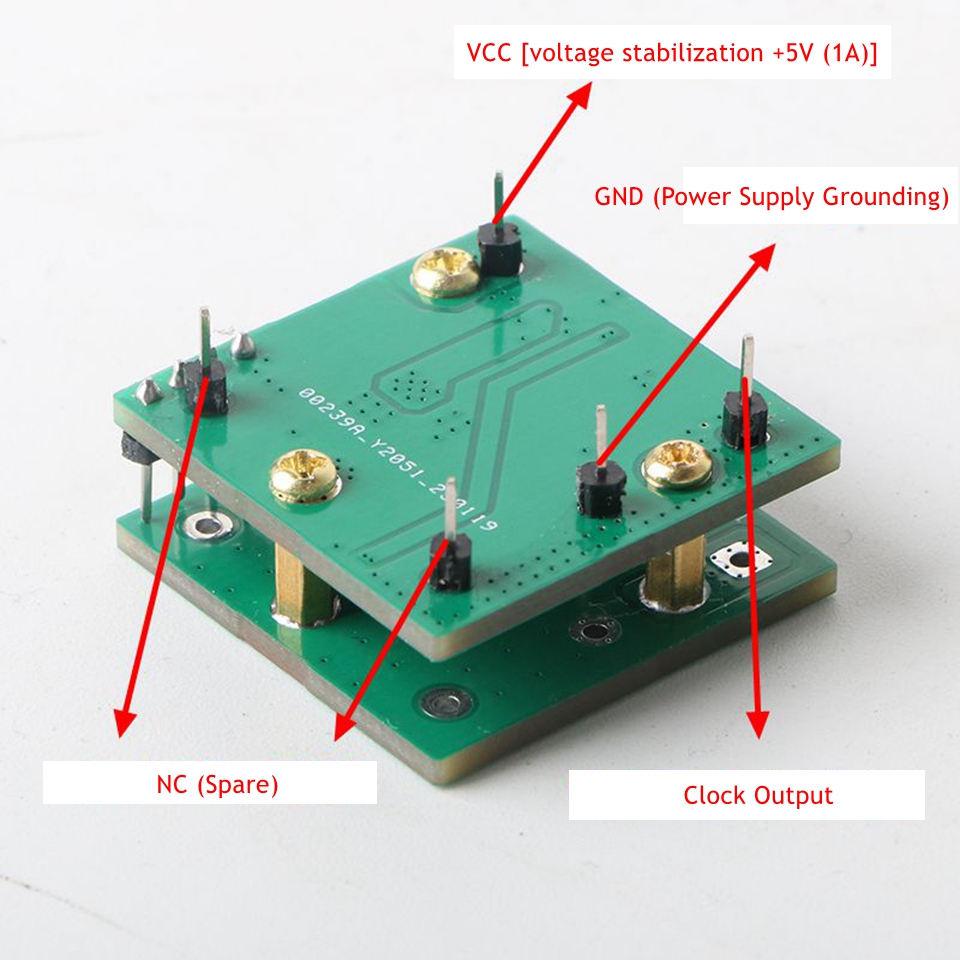

- Power supply: DC5V/0.1A (1A power supply is needed after installing MV85)

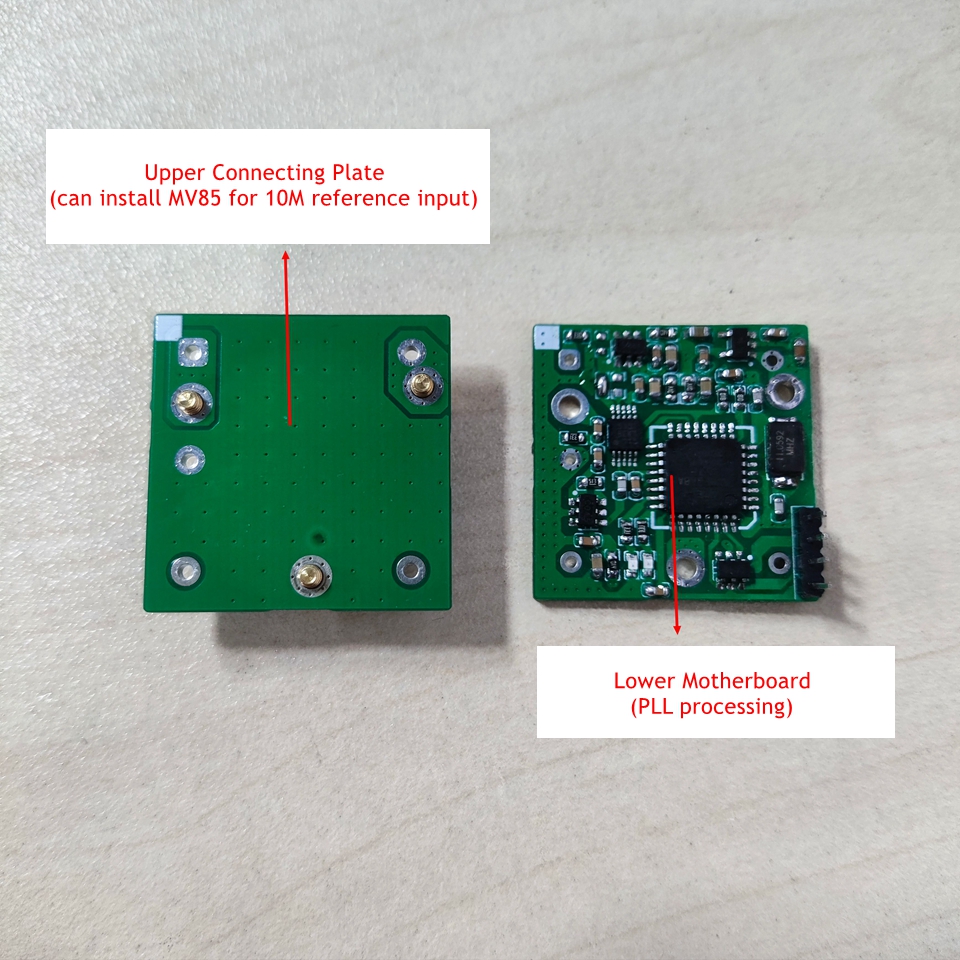

- Product size: 26 x 26mm, two boards stacked with a height of 10mm

Package Included:
- 1 x Conversion Board
