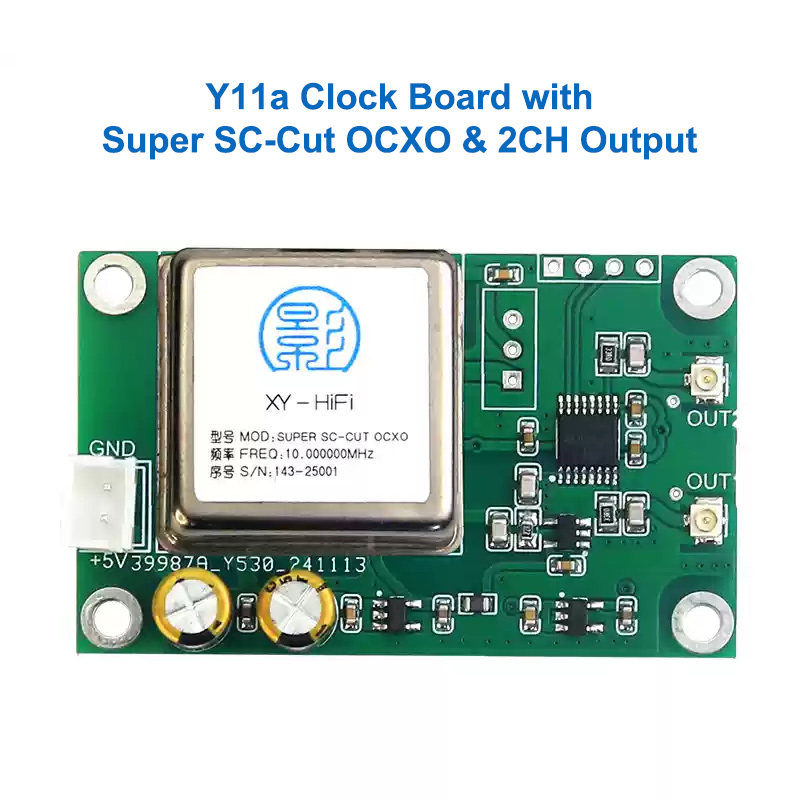

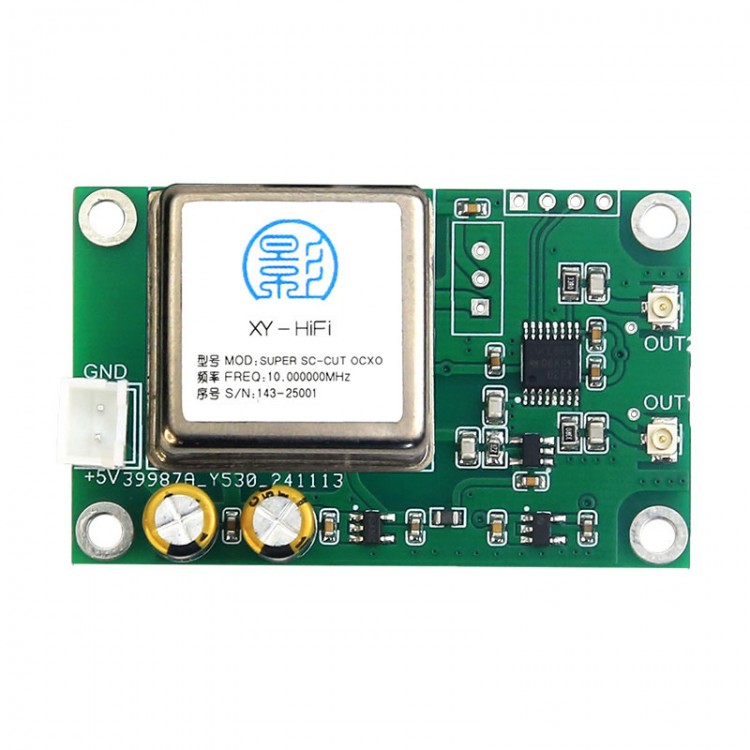

XY-HiFi Y11 Series OCXO Clock Board OCXO Clock Upgrade Board (Y11a w/ Super SC-Cut OCXO 2CH Output)

XY-HiFi Y11 Series OCXO Clock Board OCXO Clock Upgrade Board (Y11a w/ Super SC-Cut OCXO 2CH Output)

Warm Reminder:
* The startup current of this kit is greater than 1A. Once the temperature of the OCXO (optional) stabilizes, the current is around 650mA (the power consumption is relatively high and the temperature can become high. If you mind high temperatures, please consider carefully before purchasing).
* The finished board is pre-soldered and tested.
* Using this kit requires relevant hands-on skills and experience (only technical support for wiring is provided; modification or personalized deep technical support is not offered).

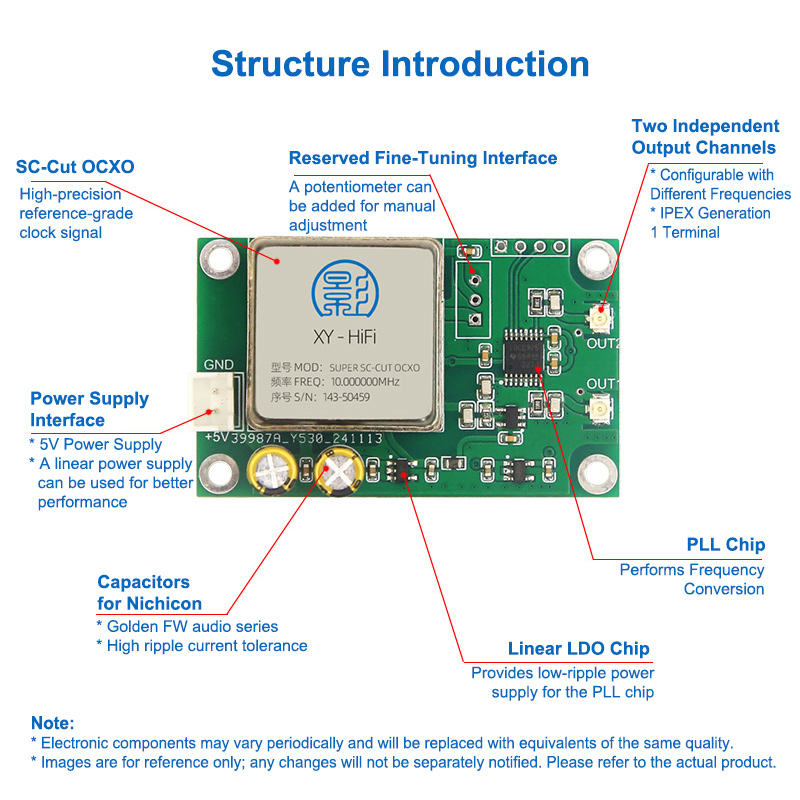

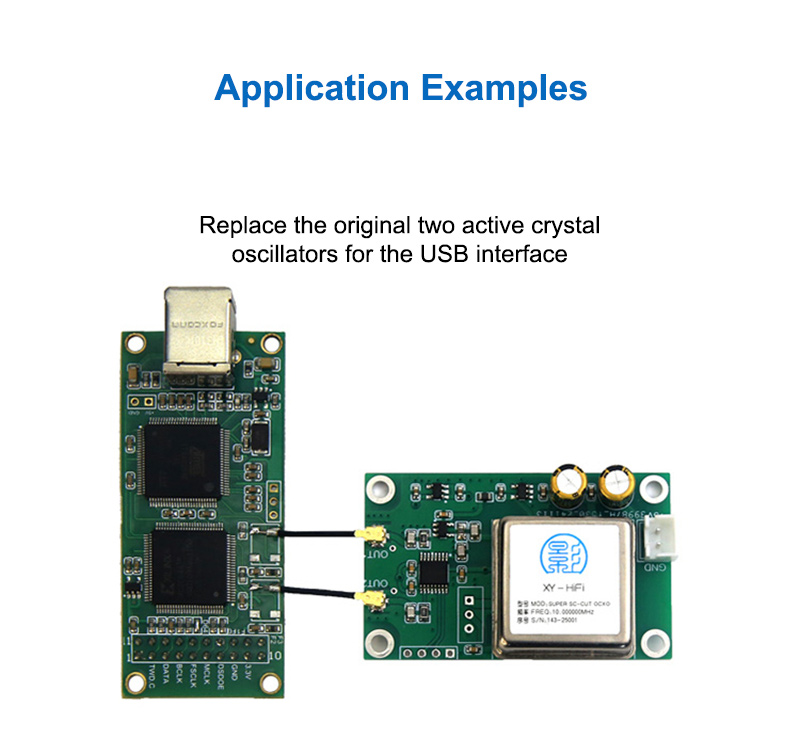

Features:
Phase-Locked Loop (PLL) Chip
* The clock output of the CDCE925 chip (for TI) from the United States features low jitter characteristics.
* Typical cycle jitter is only 60ps, making it suitable for multi-channel circuits that require phase synchronization.
* The chip supports SSC (Spread Spectrum Clocking) technology, which effectively reduces system electromagnetic interference (EMI) and improves stability and reliability.

Dual PLL
* Frequency source synchronization
* Division waveform synchronization
* No phase difference, with low phase noise
* Reduces crosstalk between multiple different crystal oscillators and different frequencies

Power Filtering
* The application of filtering circuits directly impacts the overall system efficiency and sound quality.
* Filtering circuits can reduce equipment damage caused by high-frequency interference.
* Under power fluctuations or load changes, filtering capacitors provide the necessary charge to maintain stable output voltage and dynamic response.

Golden Capacitors for Nichicon
* In cooperation with inductors, the capacitors jointly achieve smooth processing of the power supply signal, ensuring the purity and clarity of the output signal.

Specifications:
* Model: Y11

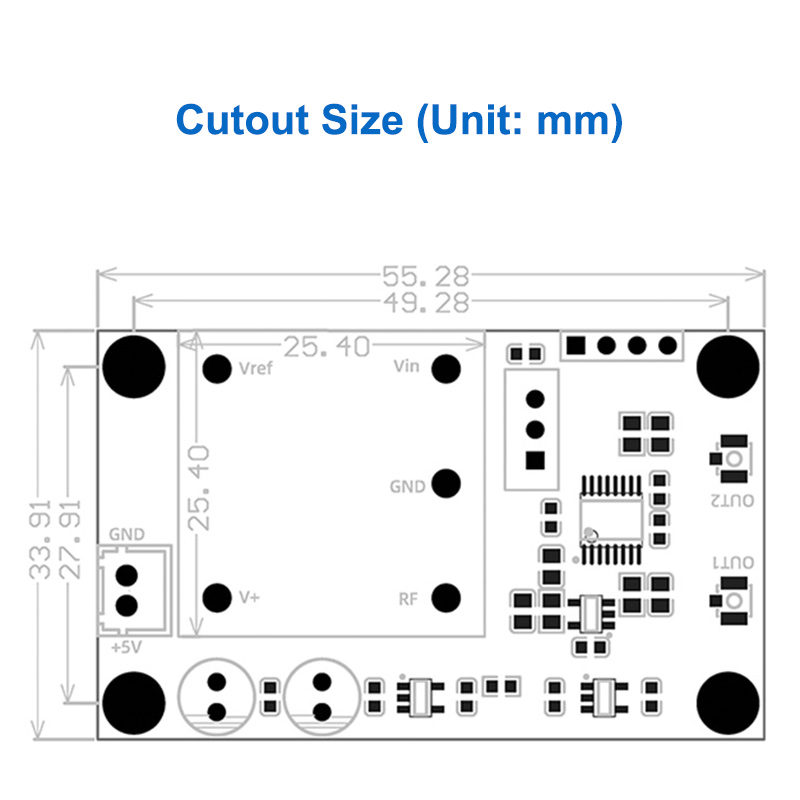

* Dimensions: 56 mm (Length) × 34 mm (Width) × 15 mm (Height)
* Weight: 22 grams
* Interface Type: 2.54 mm pin terminal (Power supply) / IPEX Generation 1 (Output)
* Input Voltage: 5V DC / ＞1A
* Warm-up Time: Basic 15 minutes / Fully 60 minutes
* Output Frequency: Two frequencies can be specified (default 10 MHz)
* Frequency Range: 100 Hz ~ 250 MHz
* Oscillator Type: SC-Cut OCXO (Optional)
* Output Parameters: 3.3 Vpp / Square wave / 50 Ω
* Frequency Accuracy: < ±0.3 ppm
* Frequency Stability: ±0.3 ppb / -10℃ to 80℃

Packing List:
* 1 x Clock Mainboard
* 1 x Power Cable
* 2 x IPX Output Cables
* 1 x User Manual
* 1 x Certificate of Conformity

Packaging Details:
* Weight: 0.25kg

Note:
* Electronic components may vary periodically and will be replaced with equivalents of the same quality.
* Images are for reference only; any changes will not be separately notified. Please refer to the actual product.
