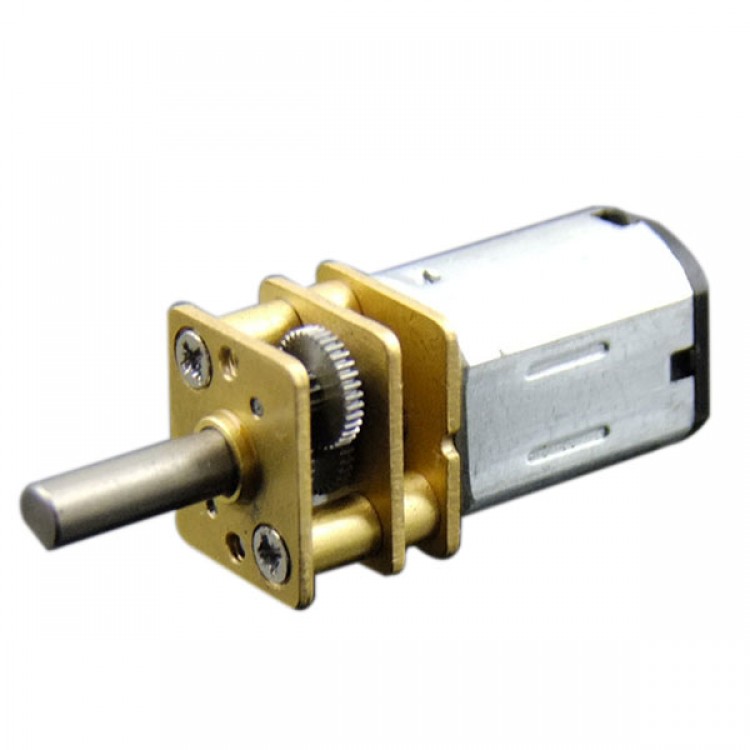

N20 DC Deceleration Motor Low Speed Metal Gear 100:1 Gearmotor Large Torque 3-12V
Description:
- This motor has a long (0.365" or 9.27 mm), D-shaped metal output shaft that matches the Pololu wheel 42x19mm and 32x7mm. The brass faceplate has two mounting holes threaded for M1.6 screws (1.6 mm diameter, 0.35 mm thread pitch), or you can use the mounting bracket or extended mounting bracket, which are specifically designed to securely mount the gearmotor while enclosing the exposed gears. We recommend the extended mounting bracket for wheels with recessed hubs, such as the Pololu wheel 42×19 mm.
Features:
100:1 Gear ratio
No-Load Speed 120rpm @ 6V
Rated Speed 100rpm @ 6V
0.21A Rated current @ 6V
Rated Torque 0.6 Kg.cm @ 6V
