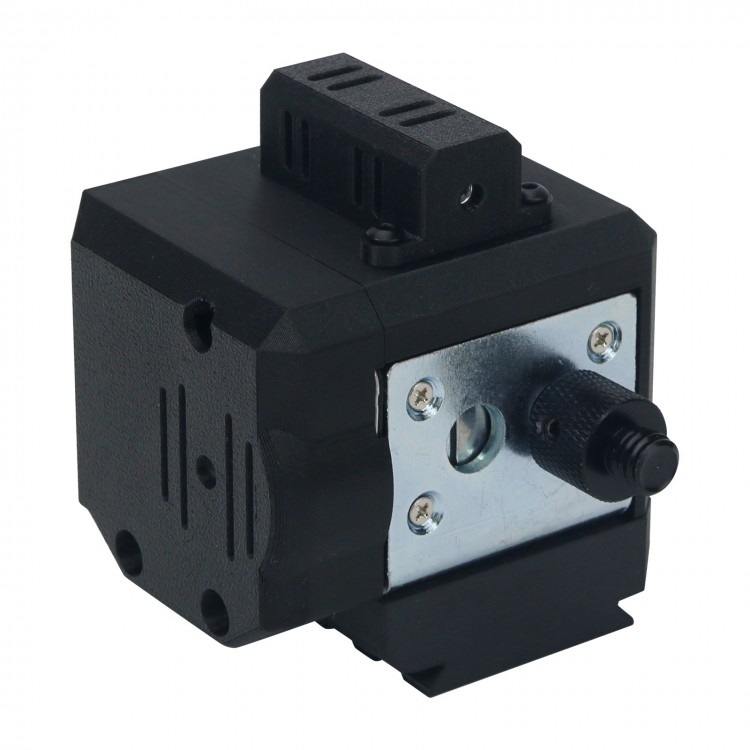

Nano Light Adventurer Pocket Equatorial Mount Integrated Built-in Laser Pointer DIY Deep Space Photography Support Stellar Speed
Description:
- Nano Light Pocket Equatorial Mount is designed based on an open-source scheme. It uses EESP32S dual-core main control chip. It supports stellar speed, moon speed and custom rotation speed. It also supports switching between the northern and southern hemispheres. It can be used as a gimbal head for time-lapse photography. It can be controlled by DIP switches and WIFI web wirelessly, not limited to devices. No need to download an APP. It is ready to use when it is powered on. And it can be powered by a power bank.
Measured tracking accuracy (non-limit value):
- Full frame camera with subjective single exposure without dragging lines.
- 70mm lens: 5 minutes
- 200mm lens: 1 minute
- 300mm lens: 60 seconds
Features:
- Equatorial mount tracking time is affected by a variety of factors. Misalignment of the polar axis, wind, tripod shaking, etc. can cause star trailing. The above data were obtained with the laser pointer roughly aligned with the polar axis. The data is for reference only. If the polar axis is aligned precisely, the actual exposure time of a single photo will exceed the above data.
- The equatorial mount is designed with a PETG-CF housing. It means that the shell is made from PETG and carbon fiber (CF).
- 3000:1 reduction gear set
- Type C port to supply power. Without built-in battery
- Your gimbal with a standard quick-release plate clamp can be used directly, thanks to a 38mm quick release baseplate for Arca-Swiss at the bottom of the equatorial mount
- The output shaft is a standard 1/4-inch screw, and a ball head is required for the connection to a camera. Since most of the ball head bottom screw holes are 3/8 inches, please purchase a 1/4 to 3/8 screw sleeve (not included) separately.

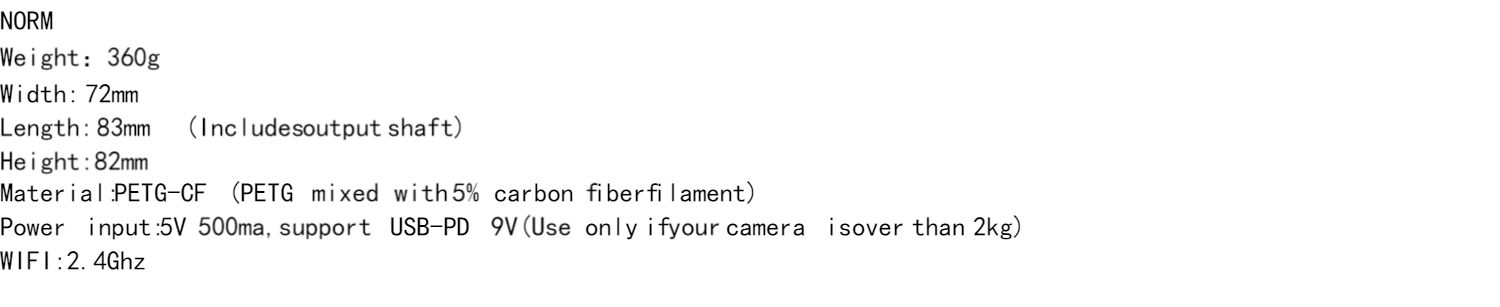

Specification:
- Net weight: 360g
- Product size: 83 x 72 x 82mm
- Maximum load capacity (without counterweight): 3kg
- Shell material: PETG-CF
- Power supply requirement: USB-C 5V 500mA, support USB-PD 9V (use it for the camera weight over 2kg)
- WiFi band: 2.4GHz
Package Included:
- 1 x Equatorial Mount
